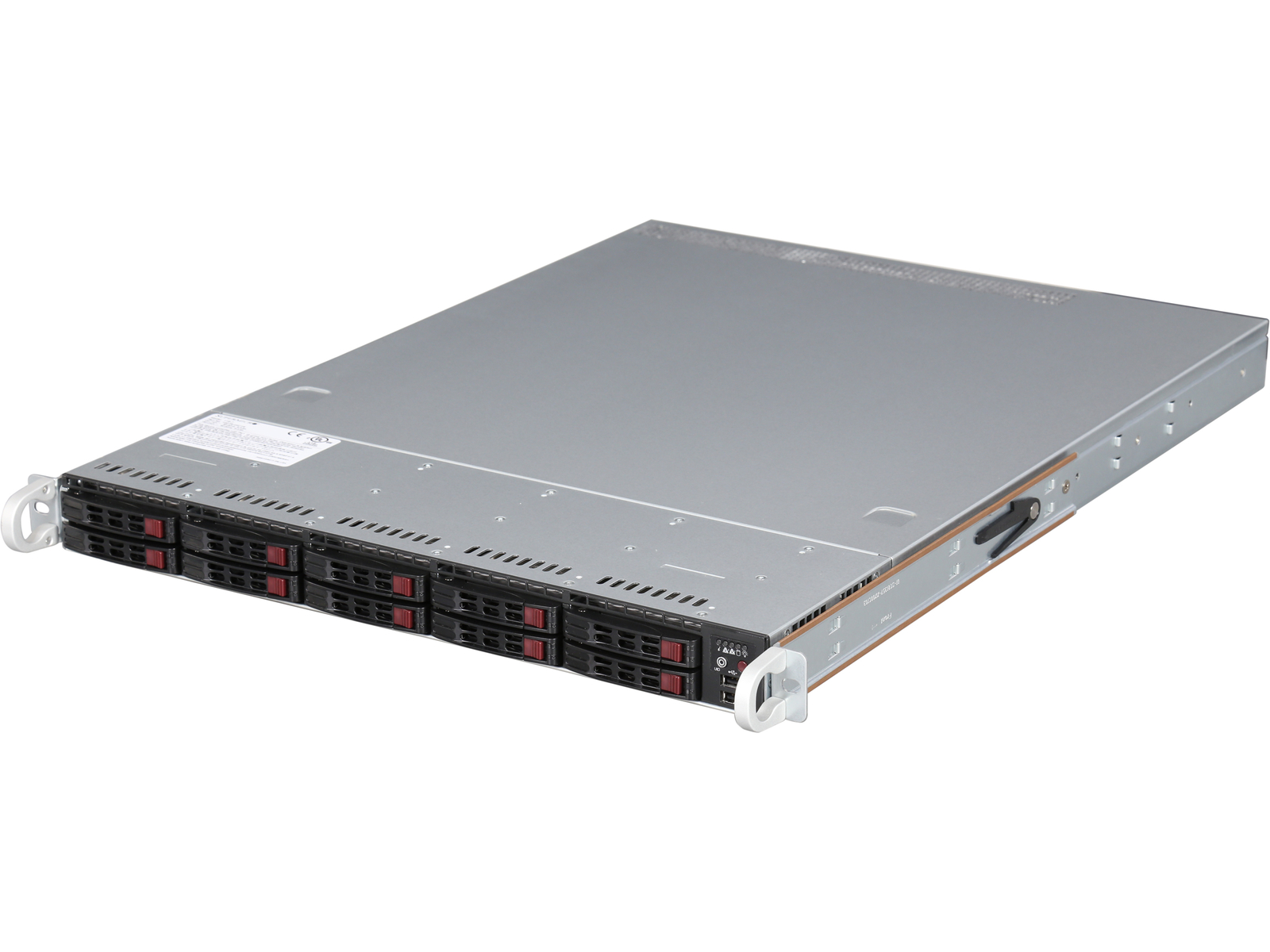

Supermicro SYS-1027TR-TFF Barebones Server X9DRT-IBFF NEW IN STOCK, 5 Year Wty
Product SKUsSYS-1027TR-TFF

• SuperServer 1027TR-TFF (Black)

Motherboard
Super X9DRT-IBFFProcessor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 130W TDP)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System Memory (per node)Memory Capacity

• 8x 240-pin DDR3 DIMM sockets
• Up to 512GB DDR3 ECC LRDIMM
• Up to 256GB DDR3 ECC Registered memory (RDIMM)
• Up to 64GB DDR3 ECC and non-ECC UDIMM

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C602J Chipset

Infiniband

• Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller

SATA

• Via Cable for SATA controller
• SATA 2.0 (3Gbps) & 3.0 (6Gbps) with RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Input / Output (per node)Serial ATA

• 2x SATA 3.0 ports (6Gbps)
• 4x SATA 2.0 ports (3Gbps)

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 3x USB 2.0 ports (2x rear + 1x Type A)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 ports (rear/header)

Infiniband

• 1x external QSFP Infiniband connector

ChassisForm Factor

• 1U Rackmount

Model

• 17.2" (437mm)

Height

• 1.7" (43mm)

Depth

• 27.75" (705mm)

Gross Weight

• 40 lbs (18.1kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• UID button

LEDs

• Power status LED
• HDD activity LED
• Information LED
• 2x Network activity LEDs
• Universal Information (UID) LED

Expansion Slot(s) (per node)PCI-Express

• 1x PCI-E 3.0 x16 Low-profile

Drive Bays (per node)Hot-swap

• 4x 2.5" Hot-swap SATA HDD trays

Backplane1x 1U SAS / SATA backplaneSystem Cooling (per node)Fans

• 3x 4cm counter-rotating fans w/ optimal fan speed control

Power Supply with Digital Switching Control & PMBus 1.21280W High-Efficiency (95%+) power supplyAC Input

• 1000W Output @ 100-140V, 12-8A, 50-60Hz
• 1280W Output @ 180-240V, 8-6A, 50-60Hz

DC Output

• 1000W: +12V/83A; +5Vsb/4A
• 1280W: +12V/106.7A, Certified
  [Test Report]System BIOSBIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
  BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
  Operating Environment / ComplianceRoHS

  • RoHS Compliant
  Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
  See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DRT-IBFF Motherboard
  1U ChassisBackplaneBPN-SAS-809TQ2Sup 4x2.5ö SAS/SATA hdd; SATA conCable 1CBL-0157L-0128 pin to 8 pin ribbon SGPIO cable with tube, 60cm, PBFCable 2CBL-0207L259CM SATA ROUND S-S PBF.26AWGCable 3CBL-0226L243CM SATA ROUND S-RA PBF 26AWGCable 4CBL-0227L248CM SATA ROUND S-RA PBF.26AWGCable 5CBL-0228L255CM SATA ROUND S-RA PBF 26AWGRiser CardRSC-R1U-E16R2RSC-R1U-E16RHeatsink / RetentionSNK-P0047PS21U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MBHeatsink / RetentionSNK-P0047PW21U Passive Custom Rear CPU Heat Sink for X9, X10 1U Twin, 2U Twin^2 8-DIMM per Node Series Servers
