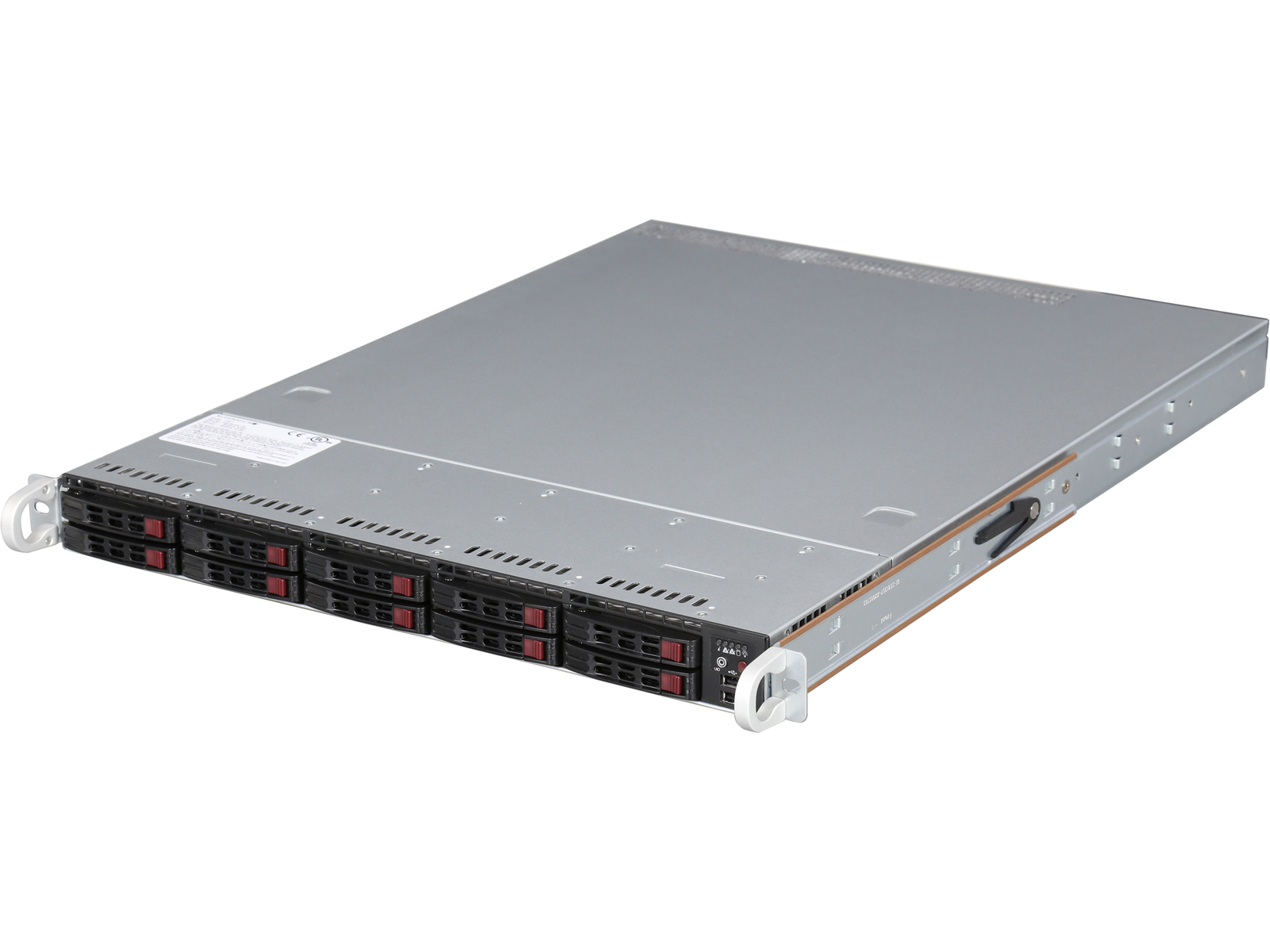

Supermicro SYS-1027R-WC1R Barebones Server X9DRW-CF31 NEW IN STOCK, 5 Year Wty
Product SKUsSYS-1027R-WC1R

• SuperServer 1027R-WC1R (Black)

Motherboard
Super X9DRW-CF31Processor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 130W TDP)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC and non-ECC UDIMM

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C602J Chipset

SATA

• SATA3 (6Gbps) with RAID 0, 1

SAS

• SAS3 (12Gbps) via LSI 3108
• RAID 0, 1, 5, 6, 10, 50, 60 support
• 2GB DDR3 Cache

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet Controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)

Graphics

• G200 (Nuvoton WPCM450 BMC)

Input / OutputSerial ATA

• 2x SATA3 (6Gbps) ports

SAS

• 8x SAS3 (12Gbps) ports

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 6x USB 2.0 ports total (4 rear, 2 front)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 header

ManagementSoftware

• SuperDoctor® III
• Watch Dog
• NMI
• SUMandSSM
• IPMI 2.0
• Intel Node Manager

Power Configurations

• ACPI / APM Power Management
• Power-on mode for AC power recovery

ChassisForm Factor

• 1U Rackmount

Model

• 17.2" (437mm)

Height

• 1.7" (43mm)

Depth

• 23.5" (597mm)

Gross Weight

• 46 lbs (20.9kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED

Expansion SlotsPCI-Express

• 2 PCI-E 3.0 x16 full-height, Half-length slots
• AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)

Drive BaysHot-swap

• 10 Hot-swap 2.5" SAS / SATA HDD trays (connected to onboard storage controller)

BackplaneSAS/SATA HDD BackplaneSystem CoolingFans

• 6x 40x56mm Counter-rotating PWM Fans

Power Supply700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2CAC Voltage

• 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp
• 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp

DC Output +5V standby

• 3 Amp

DC Output +12V

• 700W: 58 Amp @ 100-140V
• 750W: 62 Amp @ 180-240V

With Power Distributor

• +5V: 25 Amp
• +3.3V: 12 Amp
• -12V: 0.6 Amp

CertificationGold CertifiedSystem BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• BIOS resuce hot keys
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DRW-CF31 Motherboard
1U ChassisBackplaneBPN-SAS3-116A11U 10-Port 12Gbps Backplane Support 10x2.5\" SAS3/SATA3 HDD/SSDCable 1CBL-0157L-0118 pin to 8 pin ribbon SGPIO cable with tube, 60cm, PBFCable 2CBL-SAST-05501Internal Mini-SAS HD to Mini-SAS HD 3CBL-0228L255CM SATA ROUND S-RA PBF 26AWGCable 4CBL-SAST-05681Internal Mini-SAS HD to Mini-SAS HD / RetentionSNK-P0047PSC11U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MBHeatsink / RetentionSNK-P0047PS11U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MBRail SetMCP-290-00043-0V1 setRail set for SC113
