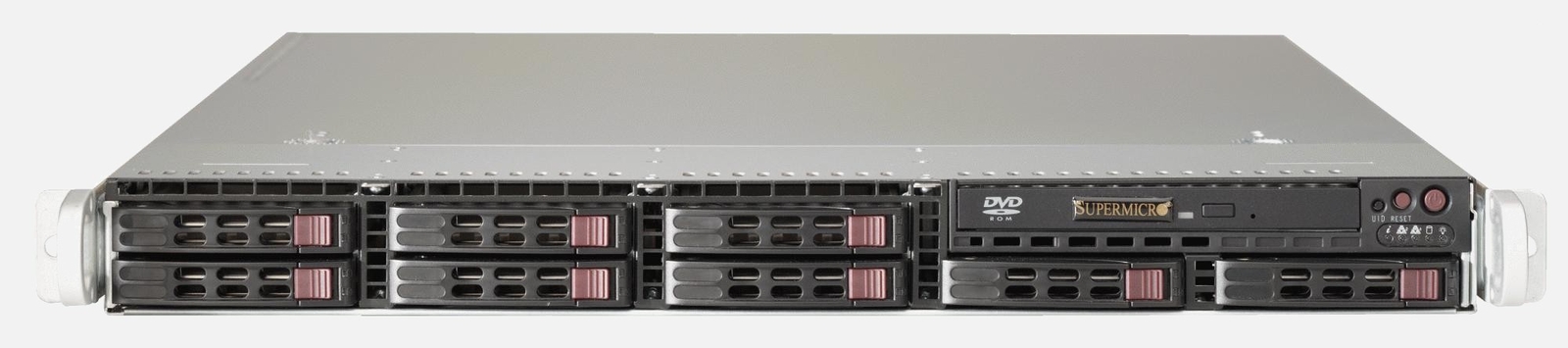

Supermicro SYS-1027R-WRF Barebones Server X9DRW-iF NEW OPEN BOX, IN STOCK
These are leftover new open box servers from an OEM project. These come with a 5 Year Warranty from Vector Data.
Product SKUsSYS-1027R-WRF

• SuperServer 1027R-WRF (Black)

Motherboard
Super X9DRW-iFProcessor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 130W TDP)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 16x 240-pin DDR3 DIMM sockets
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC and non-ECC UDIMM

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C602 Chipset

SATA

• SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Renesas SH7757 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet Controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)

Graphics

• G200 (Renesas SH7757 BMC)

Input / OutputSATA/SAS

• Customizable storage

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 6x USB 2.0 ports total
  (4x rear + 2x via header)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

ChassisForm Factor

• 1U Rackmount

Model

• 17.2" (437mm)

Height

• 1.7" (43mm)

Depth

• 23.5" (597mm)

Gross Weight

• 46 lbs (20.9kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED

Expansion SlotsPCI-Express

• 2 PCI-E 3.0 x16 full-height, Half-length slots
• UIO AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)

Drive BaysHot-swap

• 8 Hot-swap 2.5" SAS / SATA HDD trays (ready for PCI-E storage controller card)

Peripheral DrivesDVD-ROM

• Slim DVD-ROM drive (optional)

BackplaneSAS/SATA HDD Backplane
(SAS support requires optional SAS controller)System CoolingFans

• 5x 4cm Counter-rotating PWM Fans

Power Supply700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2CAC Voltage

• 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp
• 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp

DC Output +5V standby

• 3 Amp

DC Output +12V

• 700W: 58 Amp @ 100-140V
• 750W: 62 Amp @ 180-240V

With Power Distributor

• +5V: 25 Amp
• +3.3V: 12 Amp
• -12V: 0.6 Amp

CertificationGold CertifiedSystem BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• BIOS resuce hot keys
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  5°C to 35°C (41°F to 95°F)
• Non-operating Temperature:
  -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DRW-iF Motherboard
1U ChassisBackplaneBPN-SAS-113TQ1Sup 8x2.5" Hot-swap SAS/SATA hdd; SATA conCable 1CBL-0388L-011IPASS TO 4 SATA 75/75/90/90CM W/ 75cm SB. RA. 30AWGCable 2CBL-0288L-011IPASS TO 4 SATA 70/60/50/50CM, W/ 70CM SB, RA ,30AWGRiser / RetentionSNK-P0047PS11U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MBHeatsink / RetentionSNK-P0047PSC11U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MBRail SetMCP-290-00043-0V1 setRail set for SC113Optional Parts ListPart NumberQtyDescriptionDVD-ROM / DVD-ROM / DVD-RW SATA DRIVEDVD-ROM AccessoryMCP-220-81502-0N1Slim SATA DVD kitInternal 2.5" HDD Tray (DVD Slot)MCP-290-00036-0B1Black DVD dummy tray support 1x 2.5" HDDCables for on-board SATA2 SATA Cable ROUND S-S
48CM SATA Cable ROUND S-RA
8pin to 8pin ribbon cable with tube for SGPIO, 40cm
IPASS to 4 SATA Cable, 30AWG 70/60/50/50CM, W/ 70CM SB, RARail set
1 set25.6" to 33.05" outer rail, /quick, for 1U 17.2" W chassis (10 sets/pack)
19" to 26.4" outer rail, /quick, for 1U 17.2" W chassisNetwork LP, 2x GbE RJ45, PCI-E x4, Intel®i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel®i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel®82575EB
Standard LP, 4x GbE RJ45, PCI-E x4, Intel®82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom®BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel®82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel®X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel®82598EBStorage Controller LP, 8 internal ports (12Gb/s) Gen-3, 122HDD, HBA
Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD, RAID 0,1,1E
Standard LP, 8 internal ports (12Gb/s) Gen-3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD, HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD, RAID 0,1,1E
Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (6Gb/s) Gen-2, HBA
Standard LP, 4 internal & 4 external ports (6Gb/s) Gen-2, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (6Gb/s) Gen-2, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
