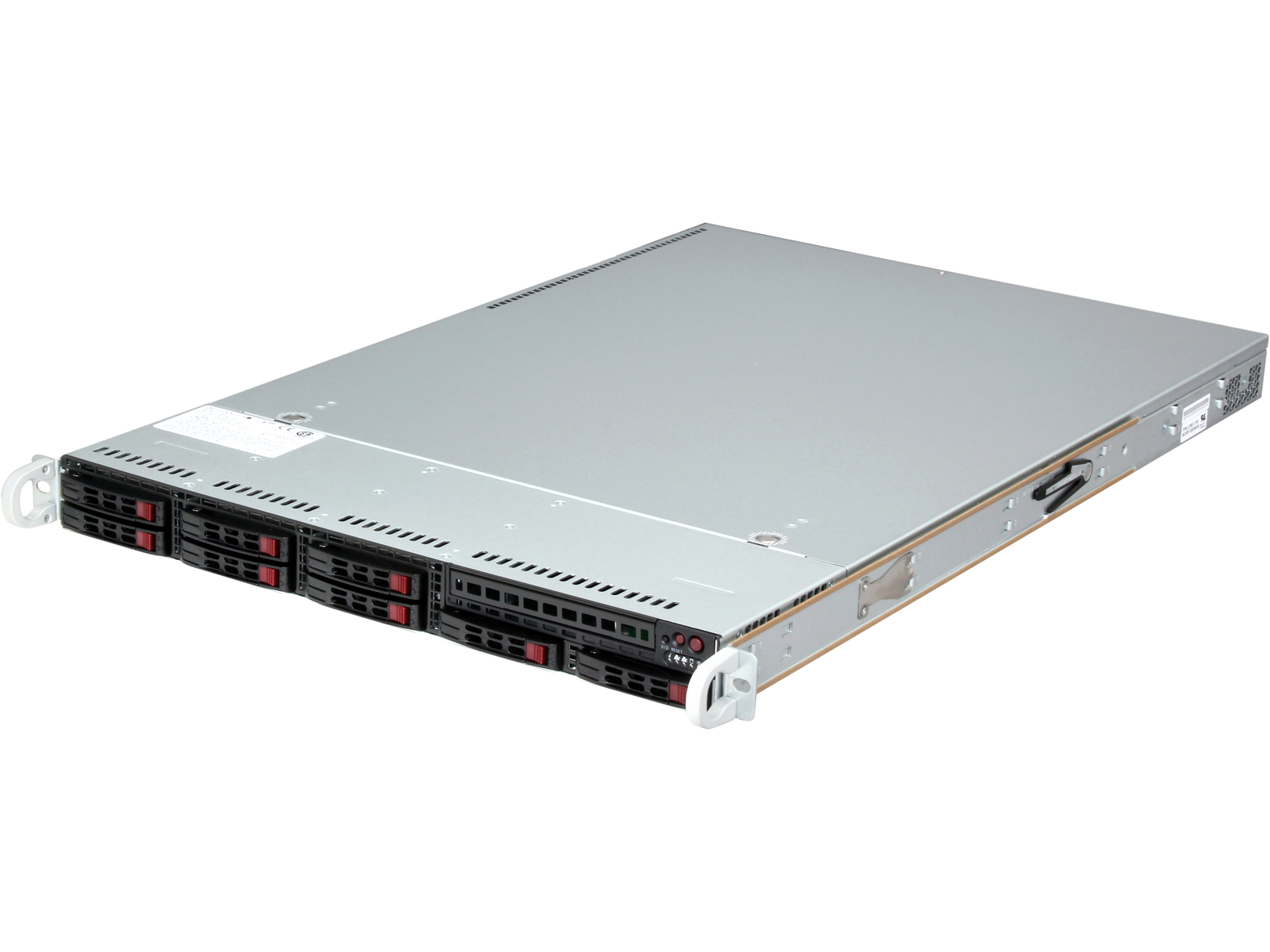

Supermicro SYS-1027R-72RFTP Barebones Server X9DRW-7TPF NEW IN STOCK, 5 Year Wty
Product SKUsSYS-1027R-72RFTP

• SuperServer 1027R-72RFTP (Black)

Motherboard
Super X9DRW-7TPFProcessor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 135W TDP)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC and non-ECC UDIMM

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C602 Chipset

SATA

• SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1

SAS

• SAS2 from LSI 2208 (1GB cache)
• HW RAID 0, 1, 5, 6, 10, 50, 60 support
• Supports up to 16 drives

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® i350 Gigabit Ethernet Controller
• Broadcom BCM57810S 10Gb SFP+
• 1x Realtek RTL8201N PHY (dedicated IPMI)(Both CPUs need to be installed for LAN ports 1 and 2 to be enabled)

Graphics

• Matrox G200eW

Input / OutputSAS/SATA

• 8x HW RAID SAS2 (6Gbps) ports

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 2x SFP+ 10Gb LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 5x USB 2.0 ports total
  (2 rear + 2 via header + 1 Type A)

Video

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

ChassisForm Factor

• 1U Rackmount

Model

• 17.2" (437mm)

Height

• 1.7" (43mm)

Depth

• 26.6" (676mm)

Gross Weight

• 46 lbs (20.9kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Information LED

Expansion SlotsPCI-Express

• 1 PCI-E 3.0 (x16) Full-height (10" length)
• 1 PCI-E 3.0 (x16) Full-height (6.6" length)
• 1 PCI-E 3.0 (x8) Low-profile (6.6" length)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)

Drive BaysHot-swap

• 8 Hot-swap 2.5" SAS / SATA HDD trays

Peripheral DrivesDVD-ROM

• Slim DVD-ROM drive (optional)

BackplaneSAS/SATA HDD BackplaneSystem CoolingFans

• 6x 4cm Counter-rotating PWM fans

Power Supply700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2CAC Input

• 700W: 100-140 V, 50-60 Hz, 8.5-6 Amp
• 750W: 180-240 V, 60-50 Hz, 5-3.8 Amp

DC Output
+5V standby

• 3 Amp

DC Output
+12V

• 700W: 58 Amp @ 100-140V
• 750W: 62 Amp @ 180-240V

With Power Distributor

• +5V: 25 Amp
• +3.3V: 25 Amp
• -12V: 0.6 Amp

CertificationGold CertifiedSystem BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DRW-7TPF Motherboard
1U ChassisBackplaneBPN-SAS-113TQ18-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSDCable 1CBL-0097L-031Ipass to 4 SATA, 51cm, W/51cm SB, S, 30AWGCable 2CBL-0476L1IPASS to 4 SATA, 55,45,35,30, w/55 SB, 30AWGRiser CardRSC-R1UW-E8R1RSC-R1UW-E8R-O-PRiser / RetentionSNK-P0047PS21U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MBRail SetMCP-290-00062-0N1 setRail set, quick/quick, default for 1U 17.2"W SC819,119
