Description
13.3inch High Resolution DSI Capacitive Touch Display, 1920 × 1080, IPS, Toughened Glass Panel, DSI Interface, 10-Point Touch, optional for full metal back panel13.3″ DSI Capacitive Touch Display

1920 × 1080 High Resolution | Multi-touch | Full Color

• Size13.3″
• Resolution1920×1080
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch InterfaceI2C
• Touch PanelToughened Glass
• Enclosure (optional)Full Metal Back Panel

Version Options

13.3inch DSI LCD
with full metal back panel

13.3inch DSI LCD (B)
without back panel

Device & System Support
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver-free for new Raspberry Pi OS
Connection Examples

Working with Raspberry Pi 5

13.3inch DSI LCD with full metal back panel

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

13.3inch DSI LCD without back panel

Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

Working with Raspberry Pi 4B

13.3inch DSI LCD with full metal back panel

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

13.3inch DSI LCD without back panel

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with Compute Module 4 IO Board

13.3inch DSI LCD with full metal back panel

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

13.3inch DSI LCD without back panel

Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

for reference only, the Raspberry Pi boards are NOT included.
Technology upgrade, Better image quality

1920 × 1080 resolution, provides clear image and vivid color display effect

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

Adjustable Brightness Via Software

Supports automatically showing or hiding the virtual keyboard
Interface Introduction

13.3inch DSI LCD with full metal back panel

13.3inch DSI LCD without back panel

Dimensions

13.3inch DSI LCD with full metal back panel

13.3inch DSI LCD without back panel

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 15 years.

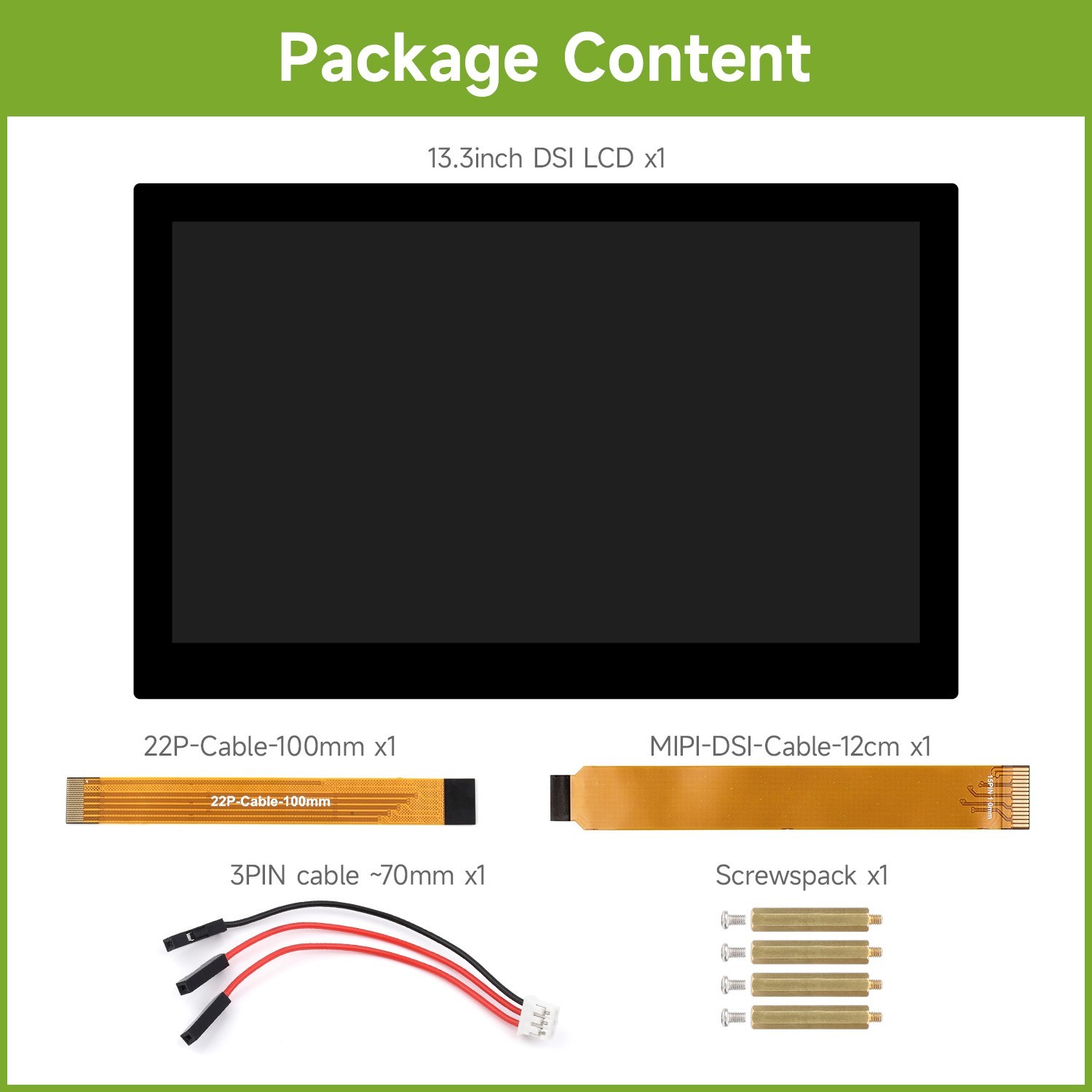

Package Content

Weight: 1.341 kg

13.3inch DSI LCD

1. 13.3inch DSI LCD x1
2. 22P-Cable-100mm x1
3. 3PIN cable ~70mm x1
4. MIPI-DSI-Cable-12cm x1
5. Screws pack x1

1234513.3inch DSI LCD (B)

1. 13.3inch DSI LCD (B) x1
2. 22PIN FFC cable 220mm (opposite) x2
3. DSI-Cable-12cm-B x1
4. 3PIN PH2.0 cable 100mm x1
5. Screws pack x1

12345
