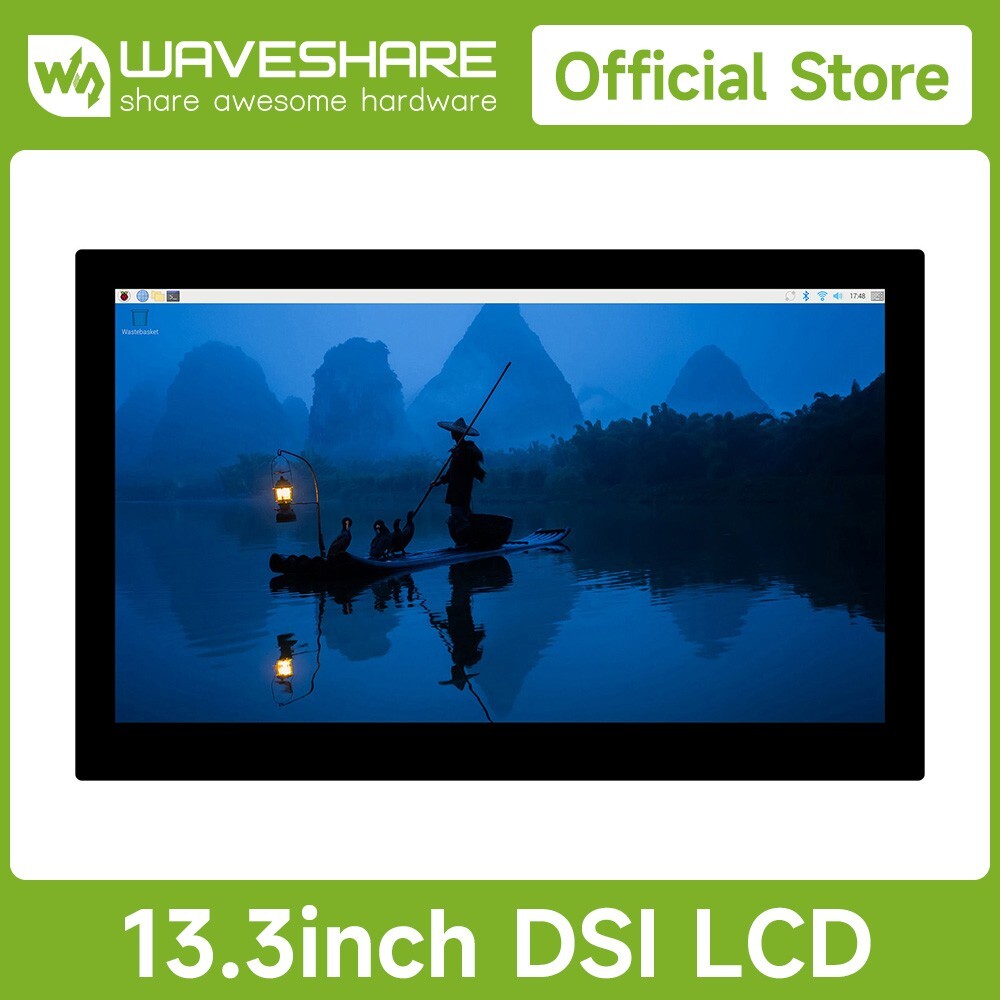

Description13.3inch High Resolution DSI Capacitive Touch Display, 1920 × 1080, IPS, Toughened Glass Panel, DSI Interface, 10-Point Touch, Full Metal Back Panel13.3″ DSI Capacitive Touch Display

1920 × 1080 High Resolution | Multi-touch | Full Color

• Size13.3″
• Resolution1920×1080
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch InterfaceI2C
• Touch PanelToughened Glass
• EnclosureFull Metal Back Panel

Device & System Support
Raspberry PiSupports Bookworm, 10-point touch
Connection Examples

Working with Raspberry Pi 5

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with Raspberry Pi 4B

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with Compute Module 4 IO Board

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

for reference only, the Raspberry Pi boards are NOT included.
Technology upgrade, Better image quality

1920 × 1080 resolution, provides clear image and vivid color display effect

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

Adjustable Brightness Via Software

Supports automatically showing or hiding the virtual keyboard
Interface Introduction
Dimensions
Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services
Package Content

Weight:1.341 kg

1. 13.3inch DSI LCD x1
2. FPC 22PIN cable ~100mm x1
3. 3PIN cable ~70mm x1
4. MIPI-DSI-Cable-12cm x1
5. Screwspack x1
