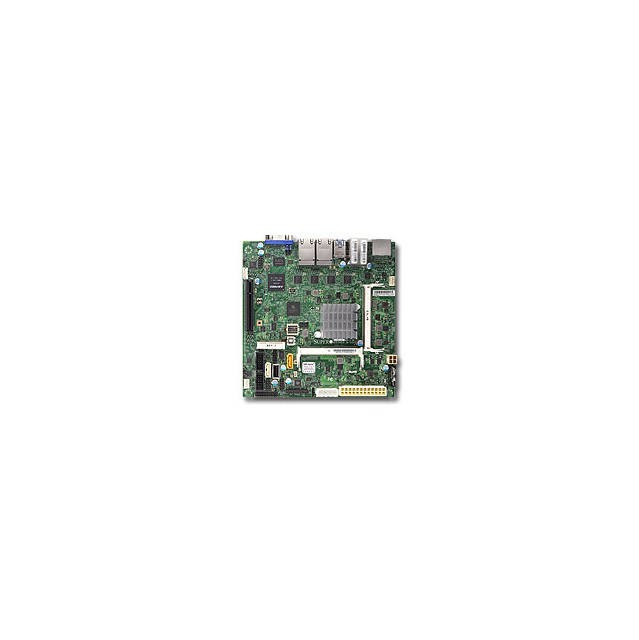

Supermicro X11SBA-LN4F Server Motherboard - Intel Chipset - Socket BGA-1170 - Mini ITX X11SBALN4FB Supermicro X11SBA-LN4F Server Motherboard - Intel Chipset - Socket BGA-1170 - Mini ITX X11SBALN4FB

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory Part Number: X11SBA-LN4F-B

CPU (Included): Intel Pentium N3700 Processor; Support up to 6W TDP

Chipset: Intel N3700 System on Chip

Memory: 2x 204pin DDR3-1600/ 1333/ 1066MHz SODIMM Slots, Dual Channel, Non-ECC, Max Capacity of 8GB

Slots: 1x PCI-Express 2.0 x8 Slot (runs at x1), 1x Mini PCI-Express Slot (w/ mSATA Support)

SATA: 2x SATA3 Ports

Audio: Realtek ALC888S High Definition Audio CODEC

Video: Aspeed AST2400 BMC Graphics

LAN: Intel I210-AT Quad Gigabit Ethernet Controller

Ports: 2x USB 3.0 Ports, 7x USB 2.0 Ports (2 rear, 4 via header, 1 Type A), 1x HDMI Port, 1x DisplayPort, 1x VGA Port, 2x Serial Ports (via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN port

Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm

Intel Pentium N3700 Processor is included with this motherboard.

RoHS Compliant

SpecificationOnboard InterfacesNumber of SATA Interfaces2Total Number of Onboard USB Ports5Integrated ProcessorIntegrated Processor TypePentiumIntegrated Processor ModelN3700Physical CharacteristicsForm FactorMini ITXWidth6.7"Depth6.7"I/O ExpansionsTotal Number of Expansion Slots1Number of PCI Express x8 Slots1Total Number of PCI Express Number of USB Ports4Number of USB 3.0 Ports2MemoryMemory TechnologyDDR3 SDRAMNumber of Memory Slots2Memory Speed Supported

• 1600 MHz
• 1333 MHz
• 1066 MHz

Memory Form FactorSODIMMMaximum Memory Supported8 GBI/O ControllerController TypeSerial ATA/600VideoOnboard VideoOn-board Video ChipsetGraphics Controller ModelAST2400General InformationBrand NameSupermicroPackage TypeBulkMarketing Information UP Pentium® Motherboards - Socket FCBGA 1170 Embedded Boards based on Pentium N3700 / FCBGA 1170 SoC Intel® Pentium® (formerly Braswell) is a multicore System-On-Chip (SoC) based on a new microarchitecture and is manufactured on Intel's industry leading tri-gate 14nm process. These processors support up to four cores with Intel® Burst Technology, which dynamically controls the performance and power of both cores and graphics-boosting performance exactly where and when it is needed and saving energy when it counts. Intel® HD Graphics deliver an exceptional visual experience and take Intel® built-in visuals to the next level. Intel® Wireless Display3 - lets you beam your apps and content such as movies, photos, and music to an HDTV with a simple wireless connection. New System-on-a-Chip (SoC) Intel® Pentium® Processors Balance Cost, Performance, and Power for Everyday Computing. Product TypeServer MotherboardProduct NameX11SBA-LN4F Server MotherboardManufacturerSupermicro Computer, IncManufacturer Part NumberMBD-X11SBA-LN4F-BProduct ModelX11SBA-LN4FPackaged Quantity1TitleProduct TitleSupermicro X11SBA-LN4F Server Motherboard - Intel Chipset - Socket BGA-1170 - Mini ITX (X11SBALN4FB)Processor & ChipsetChipset ManufacturerIntelTotal Processor Supported1Processor SocketSocket BGA-1170Network & CommunicationGigabit EthernetYes Shipping
