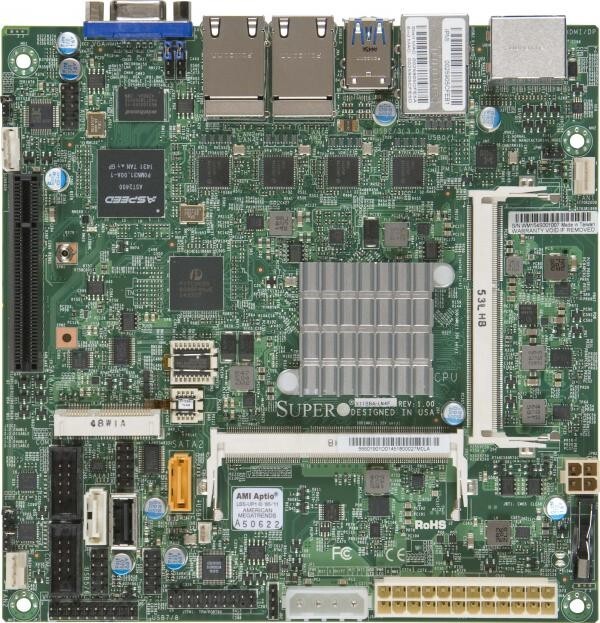

Supermicro X11SBA-LN4F-SI011 Mini-ITX Motherboard Pentium N3700 REV 1.02A

Brand NewShips with:
•Motherboard
•I/O Shield
•2 x SATA Cable

Key Features

• Intel® Pentium™ Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W
• Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets
• 1 PCIe 2.0 x1 (in x8),
• 1 Mini-PCIe (mSATA support)
• Quad GbE LAN with Intel® i210-AT
• Supports 12V DC power input
• System-on-Chip
• 1 HDMI, 1 DP, Intel HD Graphics,
• VGA port for BMC
• 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)
• I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
• IPMI 2.0 with dedicated Port and KVM

Detailed Specs:
Product SKUsMBD-X11SBA-LN4FForm FactorMini-ITXDimension6.7" x 6.7" (17.02cm x 17.02cm)Processor

• Intel® Pentium™ Processor N3710
• Single Socket FCBGA-1170 supported, CPU TDP supports Up to 6W TDP
• Up to 4 cores, 4 threads / 2MB Cache

System Memory2 DIMM slotsUp to 8GB Unbuffered non-ECC SODIMM, DDR3-1600MHzMax total memory up to 8GB onlyMemory Type1600/1333/1066 MT/s non-ECC DDR3 SODIMM Unbuffered 204-pin gold-plated DIMMsDIMM Sizes2GB, 4GB, 8GBMemory Voltage1.35VOn-Board DevicesSystem on ChipSATASoC controller for 2 SATA3 (6 Gbps) portsIPMIIPMI 2.0 with virtual media over LAN and KVM-over-LAN supportAudioALC 888S HD AudioGraphics0 ASPEED AST2400 BMC port(s)0 SoC port(s)Intel HD Graphics via SoCNetwork ControllersQuad LAN with Intel® Ethernet Controller I210-ATSingle LAN with Realtek RTL8211E PHY (dedicated IPMI)Input / OutputSATA2 SATA3 (6Gbps) port(s)LAN4 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN portUSB7 USB 2.0 port(s) (4 via header; 2 rear; 1 Type A)2 USB 3.0 port(s) (2 rear)Video Output1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)Serial Port2 COM Port(s) (2 header)DOM1 SuperDOM (Disk on Module) portsTPM1 TPM HeaderExpansion SlotsPCIe1 PCIe 2.0 x1 (in x8 slot)1 Mini-PCIe with mSATA supportSystem BIOSBIOS TypeAMI UEFIBIOS FeaturesACPI 5.0UEFI 2.3.1Plug and Play (PnP)SMBIOS 2.7.1DMI 2.3USB Keyboard supportRTC (Real Time Clock) WakeupSoftwareSuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM supportSystem Management SoftwareSuperDoctor 5, IPMIView for Linux/WindowsPower ConfigurationsPower-on mode for AC power recovery, ACPI Power ManagementPC Health MonitoringVoltageVBAT, System temperature, System level control, Supports system management utility, Memory, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory VoltagesLEDStandby alert LEDCPU / System Overheat LEDTemperatureMonitoring for CPU and chassis environmentCPU thermal trip supportThermal Monitor 2 (TM2) supportFAN2x 4-pin fan headers (up to 2 fans)Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indicationOther FeaturesWOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector
