Covered by full Supermicro manufacturer warranty!!! Formerly: Braswell-D
Embedded - 7 Years Product Life

Key Features
1. Intel® Pentium® Processor N3700,
Socket FCBGA 1170; CPU 6W 2. System-on-Chip 3. Up to 8GB 1600MHz DDR3 Non-ECC
SO-DIMM in 2 sockets 4. 1x PCI-E 2.0 x1 (in x8) slot,
1x Mini-PCIe slot 5. HD Graphics with 1x HDMI &
1x DP (Display Port), 1x VGA for BMC 6. Quad GbE LAN with Intel® i210-AT 7. 2x USB 3.0 ports (2 rear), 7x USB 2.0
(2 rear, 4 via headers, 1 Type A) 8. 2x COM ports (2 headers) 9. 1x SuperDOM port, TPM 1.2 header 10. IPMI 2.0 with dedicated Port and KVM 11. 12V DC or ATX
Links & Resources Update Your BIOS Download the Latest Drivers and Utilities OS Compatibility

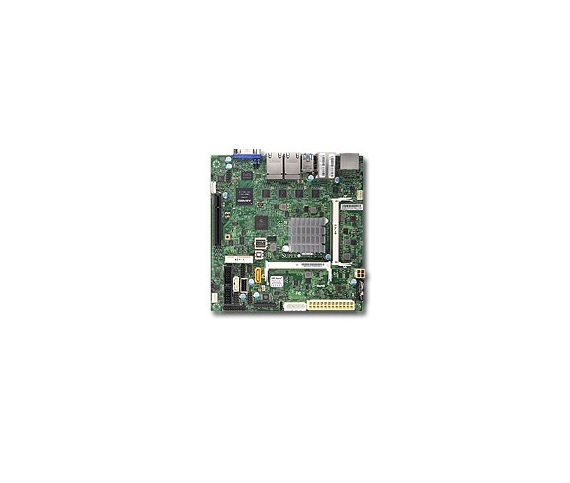

Product SKUs MBD-X11SBA-LN4F -O

• X11SBA-LN4F (Retail Pack)

MBD-X11SBA-LN4F -B

• X11SBA-LN4F (Bulk Pack)

Physical Stats Form Factor

• Mini-ITX

Dimensions

• 6.7" x 6.7" (17cm x 17cm)

Processor/Cache CPU

• Socket FCBGA1170
• Intel® Pentium® Processor N3700
• CPU TDP 6W
• 1.6-2.4GHz, 2MB

System Memory Memory Capacity

• 2x 204-pin SO-DIMM slot
• Supports up to 8GB non-ECC DDR3 1600MHz memory (Dual Channel)

Memory Type

• 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

DIMM Sizes

• 4GB, 2GB

Memory Voltage

• 1.35 V

On-Board Devices Chipset

• Intel® N3700 System on Chip

SATA

• SATA 3.0 (6Gbps) from Intel® SoC

Network Controllers

• Quad Gigabit Ethernet LAN ports with Intel® I210-AT
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio

• Realtek ALC888S HD Audio

Graphics

• Aspeed AST2400 BMC

Input / Output Serial ATA

• 2x SATA3 (6Gbps) ports

LAN

• 4x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 2x USB 3.0 ports (rear)
• 7x USB 2.0 ports (2 rear, 4 via headers, 1 Type A)

DOM

• 1x SuperDOM (Disk on Module) port with built-in power

Video Output

• 1x HDMI, 1x Display Port via SoC HD Graphics
• VGA port is for BMC via AST2400

Serial Port/Headers

• 2x COM ports in headers

Others

• Audio header
• TPM header

Expansion Slots PCI-Express

• 1x PCI-E 2.0 x1 (in x8) slot

Mini-PCIe

• 1x mini-PCIe slot with mSATA support

System BIOS BIOS Type

• 128Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features

• Plug and Play (PnP)
• ACPI 5.0
• UEFI 2.3.1
• SMBIOS 2.7
• DMI 2.3
• USB Keyboard support
• RTC (Real time Clock) Wakeup
• 3TB HDD Support

Management Software

• IPMI 2.0 with KVM support
• NMI
• SUM
• SuperDoctor® 5
• Watch Dog

Power Configurations

• ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Keyboard Wakeup from Soft-Off
• Power-on mode for AC power recovery

PC Health Monitoring FAN

• 2x fans with tachometer status monitoring
• Status monitor for speed control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support

LED

• CPU / System Overheat LED
• Standby alert LED

Operating Environment Operating Temperature Range

• 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range

• -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range

• 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range

• 10% ~ 95% (non-condensing)

Parts List (Bulk Package) Part Number Qty Description Motherboard MBD-X11SBA-LN4F 1 X11SBA-LN4F Motherboard I/O Cables CBL-0044L 1 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00058-0N 1 Standard I/O Shield for X10SBA with EMI Gasket
