Why bought from us?
Dear customers, if you read our this page, please continue to have a glance at me, I think you will be glad to select our items. We test the motherboard, check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all the parts no defect or DOA. You can buy it at ease.
About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushing agent, then put it into a safe box.
About the warranty:
Our parts have 90 days warranty, please note the following reason we don't accept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hidden marks on them, to distinguish our items from others'.
Technical Tips:A.Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C. If the motherboard can't run correctly, please first check your CPUwhethercan be compatible with our motherboard, then check your video card orpower supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)Packet Included:
1 x motherboard
1 x I/O back panel
2 x generic SATA II cables

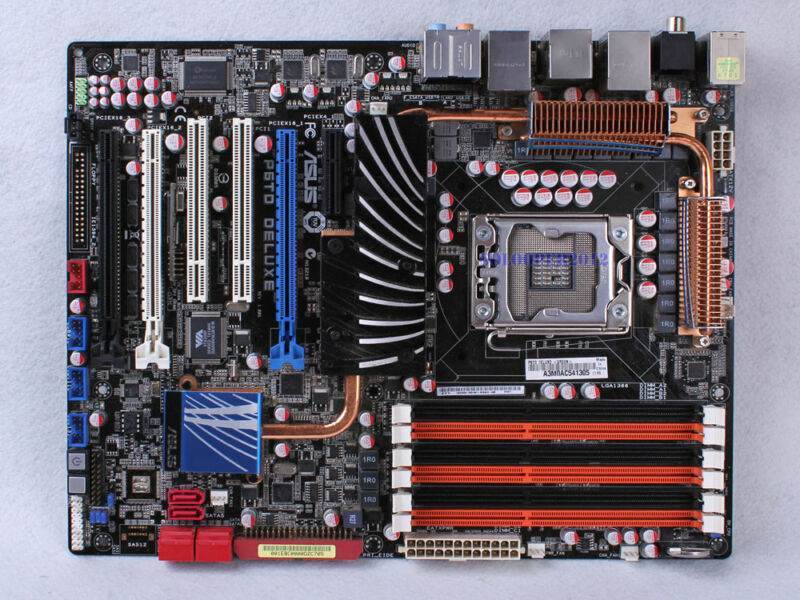

Parts Specification:
CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed Technology
Chipset
Intel® X58 / ICH10R
System Bus
Up to 6400 MT/s ; Intel® QuickPath Interconnection
Memory
6 x DIMM, Max. 24 GB, DDR3 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
**Refer to ASUS official website for the Memory QVL(Qualified Vendors Lidts).
Expansion Slots
3 x PCIe 2.0 x16 (at x16/x16/x1 or x16/x8/x8 mode)
1 x PCIe x4
2 x PCI
Multi-GPU Support
Supports NVIDIA® 2-Way or Quad-GPU SLI™ Technology*
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage
Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
Marvell 88SE6111
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xExternal SATA 3.0 Gb/s port (SATA On-the-Go)
LAN
Dual Gigabit LAN controllers 2*Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2
Audio
ADI® AD2000B 8-Channel High Definition Audio CODEC
- Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O
IEEE 1394a
VIA® VT6308 controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)
USB
14 USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)
ASUS Unique Features
ASUS Xtreme Design
ASUS Exclusive Features:
- ASUS TurboV
- ASUS True 16+2 Phase Power Design
- Express Gate SSD
ASUS Power Saving Solution
- ASUS EPU-6 Engine
- ASUS AI Nap
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Wind-Flow Heat-pipe solution
- ASUS Fanless Design: Stack Cool 3+
- ASUS Fan Xpert
- ASUS Optional Fan for Water-cooling or Passive-Cooling only
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
Intelligent overclocking tools
ASUS TurboV utility
Precision Tweaker 2
- vDIMM: 49 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.00625V increment
- vChipset 31-step chipset voltage control
- vCPU PLL: 36-step reference voltage control
- vNB-PCIe: 65-step chipset-PCIe voltage control
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100 MHz up to 180MHz at 1MHz increment
- Internal Base Clock tuning from 100MHz up to 500MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS
ASUS MyLogo 2
Back Panel I/O Ports
1 x PS/2 Keyboard/Mouse Combo port
1 x External SATA
1 x S/PDIF Out (Coaxial + Optical)
1 x IEEE 1394a
2 x LAN(RJ45) port
8 x USB 2.0/1.1
8 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
3 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out Header
Front panel audio connector
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS
16 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Form Factor
ATX Form Factor, 12"x 9.6"(30.5cm x 24.5cm)
Shipping:
CountryAgentEstimate timeUSAExpedited Shipping3-5 business Shipping3-6 business daysUK,Germany,FranceExpedited Shipping4-6 business daysOther EuropeCountryExpedited Shipping5-8 business daysOther CountryExpedited Shipping6-10 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
