DESCRIPTION

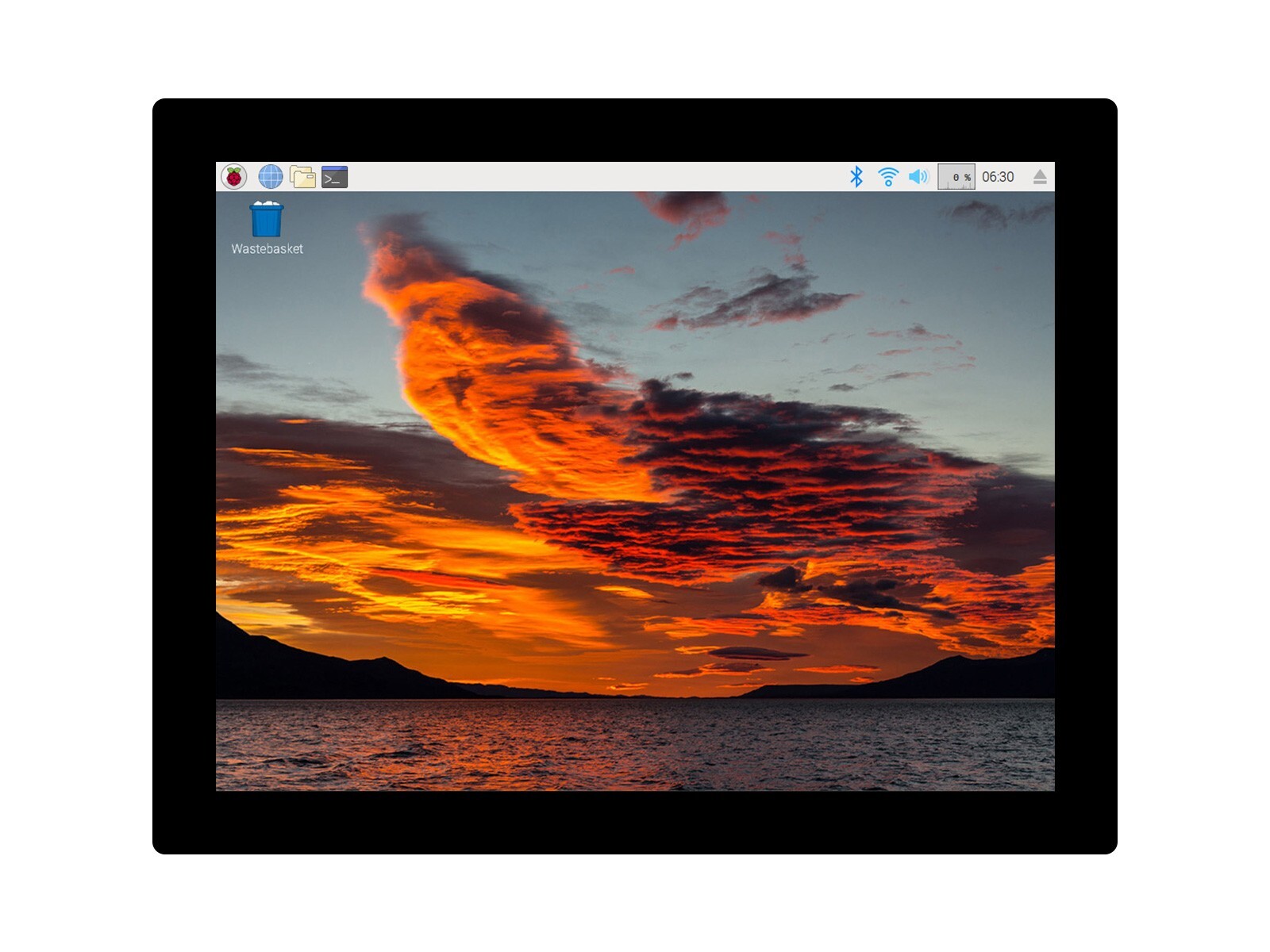

8inch Capacitive Touch Display, 8inch Monitor, 768×1024, Toughened Glass Panel, HDMI Interface, IPS Panel, 10-Point Touch8″ Capacitive Touch Display
High Resolution | Multi-Point Touch | Full Color
- Size8″
- Resolution768×1024
- Display InterfaceHDMI
- Display PanelIPS
- Viewing Angle178°
- Touch TypeCapacitive
- Touch Points10-Point
- Touch PortUSB Type-C
- Touch PanelToughened Glass
- OSD MenuBrightness/Contrast
- Audio Output 13.5mm Jack
- Audio Output 24PIN Header
The display orientation is portrait by default, 768×1024 resolution (H×V). Change the software config for landscape display.
Device & System Support
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series BoardSupports Ubuntu, single point touch, driver free
PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples
Working With Raspberry Pi 5
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Series Board
Working With PC
for reference only, the above controller boards or host are NOT included
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
Supports Backlight Adjustment Via Software
Interface Introduction
Dimensions
Support Touch Screen Customization
Support The Following Ways To Customize The Touch Screen Display In Bulk Order
Over A Decade
Waveshare Grows With Display
* Waveshare has been focusing on display design for over 10 years.
Resources & ServicesWiki:[link removed by ]Product Certification
HDMI Certified
PACKAGE CONTENT
Weight:0.426 kg
- 8inch 768x1024 LCD ×1
- HDMI flat cable ~1m ×1
- USB-A to Type-C cable ~1m ×1
- USB to Type-C adapter (C) ×1
- USB to Type-C adapter (B) ×1
- HDMI adapter ×1
- HDMI to Micro HDMI adapter ×1
- Screws pack ×1
