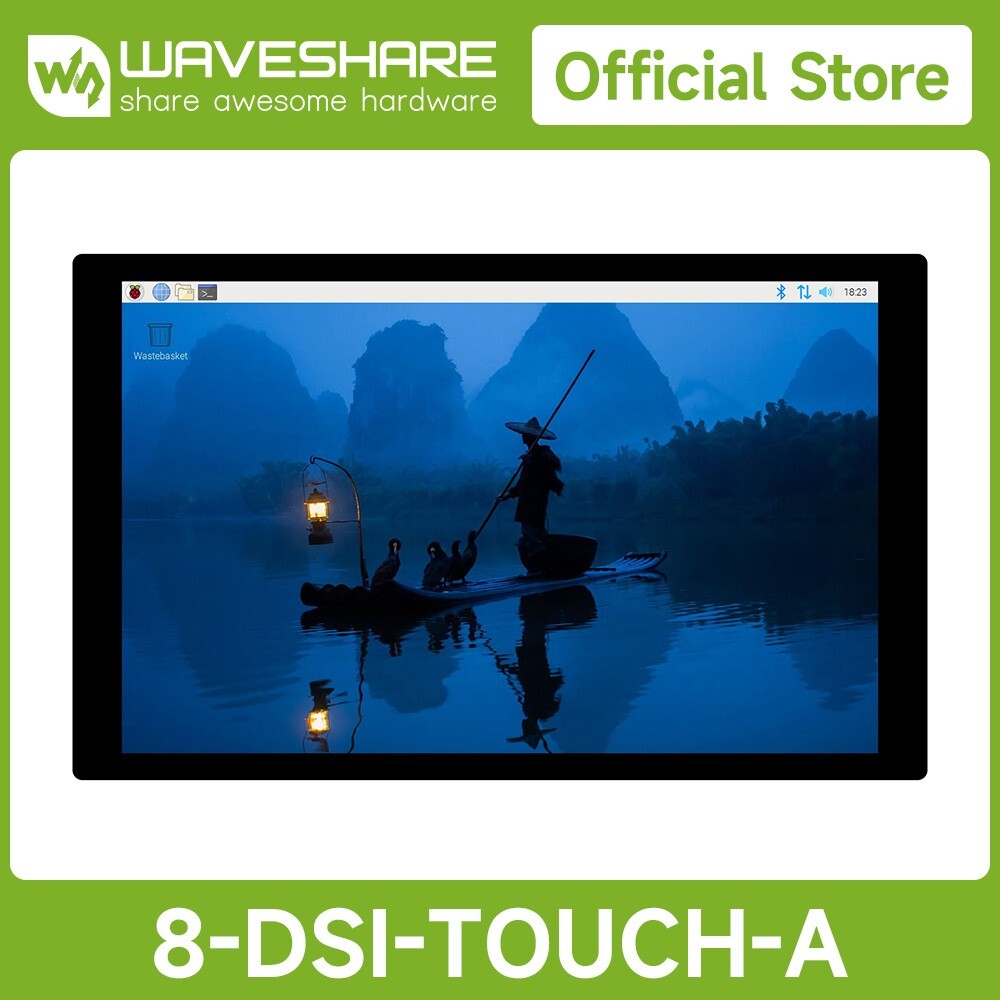

Waveshare 8inch DSI Capacitive Touch Display for Raspberry Pi 800×1280 IPS Panel
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Waveshare 8inch DSI Capacitive Touch Display for Raspberry Pi 800×1280 IPS Panel
Price: CN $71.33

Description
8inch DSI Capacitive Touch Display, 800×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch8″ DSI Capacitive Touch Display
  • Size8″
  • Resolution800×1280
  • Display InterfaceDSI
  • Display PanelIPS
  • Viewing Angle178°
  • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding
  • Device & System Support
    Raspberry PiSupports Raspberry Pi OS, 10-point touch
    ESP32-P4Supports LVGL GUI programs, up to 10-point touch
    RK3506Supports Buildroot / Ubuntu, etc. 10-point touch
    RK3576Supports Buildroot / Debian / Android, etc. 10-point touchconnection examples

    Connecting toRaspberry Pi 5


    Connecting toESP32-P4-NANO


    Connecting toLuckfox-Omni3576 Development Board


    Connecting toLuckfox Lyra Development Board


    * for reference only, the above controller boards or hosts are NOT included


    Thinner and more space-saving

    Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 11.6mm



    IPS Display Panel

    Excellent Display Performance With 178° Wide Viewing Angle

    10-Point Capacitive Touch
    1. up to 10-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel
    3. Optical bonding, provides clear image, dustproof

    Supports backlight adjustment via software

    interface definition

    outline dimensions

    Support touch screen customization

    Support the following ways to customize the touch screen display in bulk order

    Over a decade
    Waveshare grows with display

    * Waveshare has been focusing on display design for over 10 years.

    Resources & ServicesPackage Content

    Weight:0.396 kg

    1. 8-DSI-TOUCH-A x1
    2. MIPI-DSI-Cable-12cm x1
    3. MX 1.25 2PIN to 2.54 3PIN cable x1
    4. FFC 22PIN cable ~200mm x2
    5. MX 1.25 2PIN to MX1.25 4PIN cable ~150mm x1
    6. Screws pack x1
    123456
