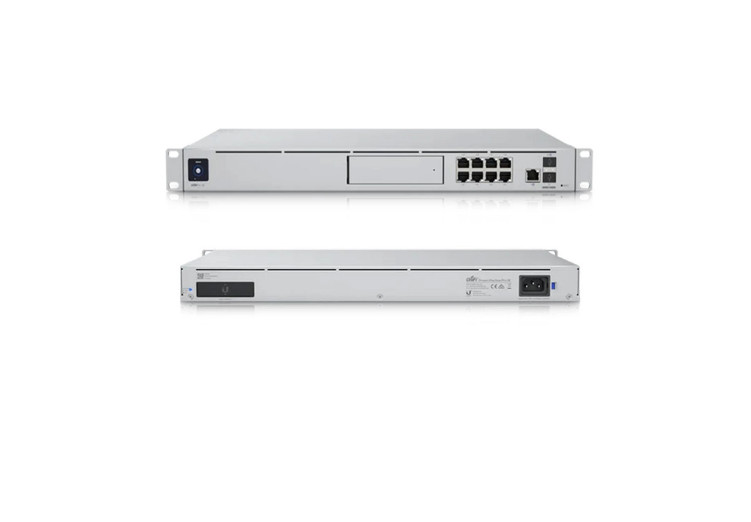

Ubiquiti UDM-SE UniFi Dream Machine Special Edition with 8-Port UDM-SE is an enterprise-grade UniFi OS Console and security gateway with integrated 8-port PoE switch, 10G SFP+ connectivity, and 128 GB SSD storage. Designed to manage networking, surveillance, voice, and access control 𝐓𝐘𝐏𝐄 / / Routers and 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Model: UDM-SE (UniFi Dream Machine Special Edition)
• All-in-one UniFi OS Console and security gateway
• Integrated 8-port Gigabit PoE switch
• (2) PoE+ IEEE 802.3at ports (up to 30W per port)
• (6) PoE IEEE 802.3af ports (up to 15.4W per port)
• 128 GB integrated SSD storage
• 16 GB eMMC storage
• (1) 3.5" HDD bay for UniFi Protect recordings
• WAN: (1) 2.5 GbE RJ45, (1) 10G SFP+
• LAN: (8) 1 GbE RJ45, (1) 10G SFP+
• IDS/IPS throughput up to 3.5 Gbps (iPerf3 measured)
• Threat management and traffic/client identification
• Ethernet and Bluetooth management Processor: Quad-Core ARM Cortex-A57 @ 1.7 GHz
• System Memory: 4 GB DDR4
• On-board Storage: 16 GB eMMC + 128 GB SSD
• IDS/IPS Throughput: 3.5 Gbps (iPerf3)
• Max Power Consumption (excluding PoE output): 50W
• Power Supply: Internal AC/DC, 240W
Power:
• Universal AC Input: 100–240VAC, 50/60 Hz
• USP-RPS DC Input: 52VDC, 3.94A
• Supported Voltage Range: 100–240VAC
Networking Interfaces:
• WAN: (1) 2.5 GbE RJ45, (1) 10G SFP+
• LAN: (8) 1 GbE RJ45 ports
• LAN SFP+: (1) 10G SFP+
PoE Specifications:
• (2) IEEE 802.3at PoE+ ports (30W max per port)
• (6) IEEE 802.3af PoE ports (15.4W max per port)
• 802.3af Voltage Range: 44–57V
• 802.3at Voltage Range: 50–57V
Protection:
• ESD/EMP Protection: ±15 kV Air, ±8 kV Contact
Mechanical:
• Dimensions: 442.4 × 43.7 × 285.6 mm (1U Rackmount)
• Weight: 4.95 kg (10.91 lb)
• Enclosure Materials: Aluminium CNC, SGCC steel
• Rack Mount Material: SGCC Handling time: up to 2 business days
• Orders often ship the same business day
• Orders are not shipped on weekends or holidays
• Carrier is seller-selected (UPS, USPS, FedEx, or equivalent)
• Shipping delays may occur during high-volume periods or carrier-related Returns accepted within 30 days
• Item must be returned in the same condition as received
• Seller pays return 𝐀𝐂𝐂𝐔𝐑𝐀𝐂𝐘 details are based on available manufacturer information and may be subject to change without / 𝐕𝐎𝐋𝐔𝐌𝐄 𝐁𝐔𝐘𝐄𝐑𝐒
