Ubiquiti UDM-SE Dream Machine Special Edition UniFi OS Console Security Gateway
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

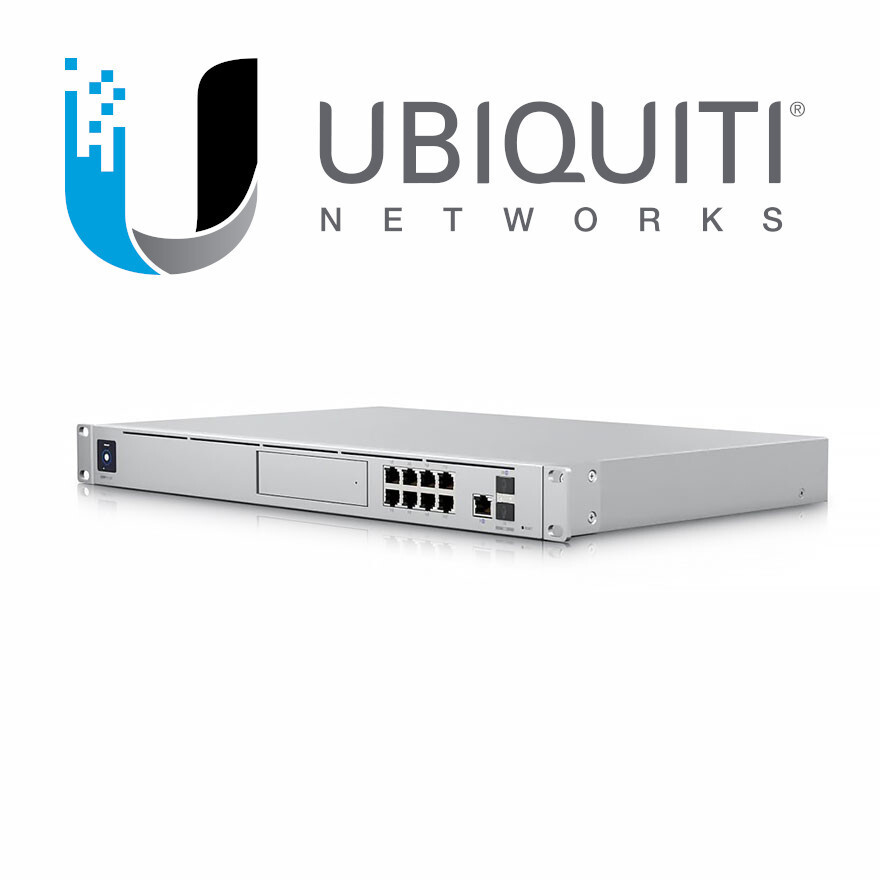

Ubiquiti UDM-SE Dream Machine Special Edition UniFi OS Console Security Gateway
Price: US $609.95
Brand New Sealed in Manufacturer's Packaging Ubiquiti UDM-SE Dream Machine Special EditionThis UDM-SE ships Same Day if purchased by 4pm CST M-F
Ubiquiti® UDM-SE Dream Machine Special Edition

A dream come true! The Ubiquiti® Dream Machine is the perfect all-in-one enterprise-grade UniFi OS Console and security gateway. It enables full control of networking, cameras, phones, and door access, while serving as a gateway for your network by hosting the UNiFi application suite.

Specialized Full Integration

It’s never been easier to run current and future UniFi OS applications from a single, intuitive interface. This Dream Machine is designed with 128 GB of integrated storage and 8-integrated ports.

Enhanced User Access

Remote access is available anywhere in the US thanks to the UniFi OS Portal. This allows users to customize their experience with easy-to use management features, and even adjust their role and group-level network access. It’s customized quality like no other.

Dimensions:, 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")

Weight:, 4.95 kg (10.91 lb)

Enclosure Materials:, Aluminium CNC, SGCC steel

Mount Material:, SGCC steel rack mount

Processor:, Quad-Core ARM® Cortex®-A57 at 1.7 GHz

System Memory:, 4 GB DDR4

On-Board Storage:, 16 GB eMMC / Integrated 128 GB SSD

IDS/IPS throughput:, 3.5 Gbps* / *Measured with iPerf3

Max. power consumption (excluding PoE output):, 50W

Power Method:, (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz / (1) USP-RPS DC input, 52V DC, 3.94A

Power Supply:, AC/DC, Internal, 240W

Supported Voltage Range:, 100—240V AC

Management Interface:, Ethernet / Bluetooth

Networking Interface:, (1) WAN: 2.5 GbE RJ45 port / (8) LAN: 1 GbE RJ45 ports

SFP+ interface: (1) WAN:, 10G SFP+ / (1) LAN: 10G SFP+

PoE Interface:, (2) PoE+ (pair A 1, 2+; 3, 6-) / (6) PoE (pair A 1, 2+; 3, 6-)

Max. PoE wattage per port by PSE PoE:, 15.4W

Max. PoE wattage per port by PSE PoE+:, 30W

Voltage range PoE mode:, 44-57V

Voltage range PoE+ mode:, 50-57V

ESD/EMP Protection:, Air: ± 15 kV, contact: ± 8 kV

LCM Display:, (1) 1.3" touchscreen / Bootup animation: bootup in progress / Firmware upgrade icon: firmware upgrading

Button:, Factory Reset

Operating Temperature:, -10 to 40° C (14 to 104° F)

Operating Humidity:, 5 to 95% noncondensing

Certifications:, CE, FCC, IC

Ethernet:, White: link/activity

HDD:, White: disk activity / Amber: disk error

RPS:, Blue: ready
