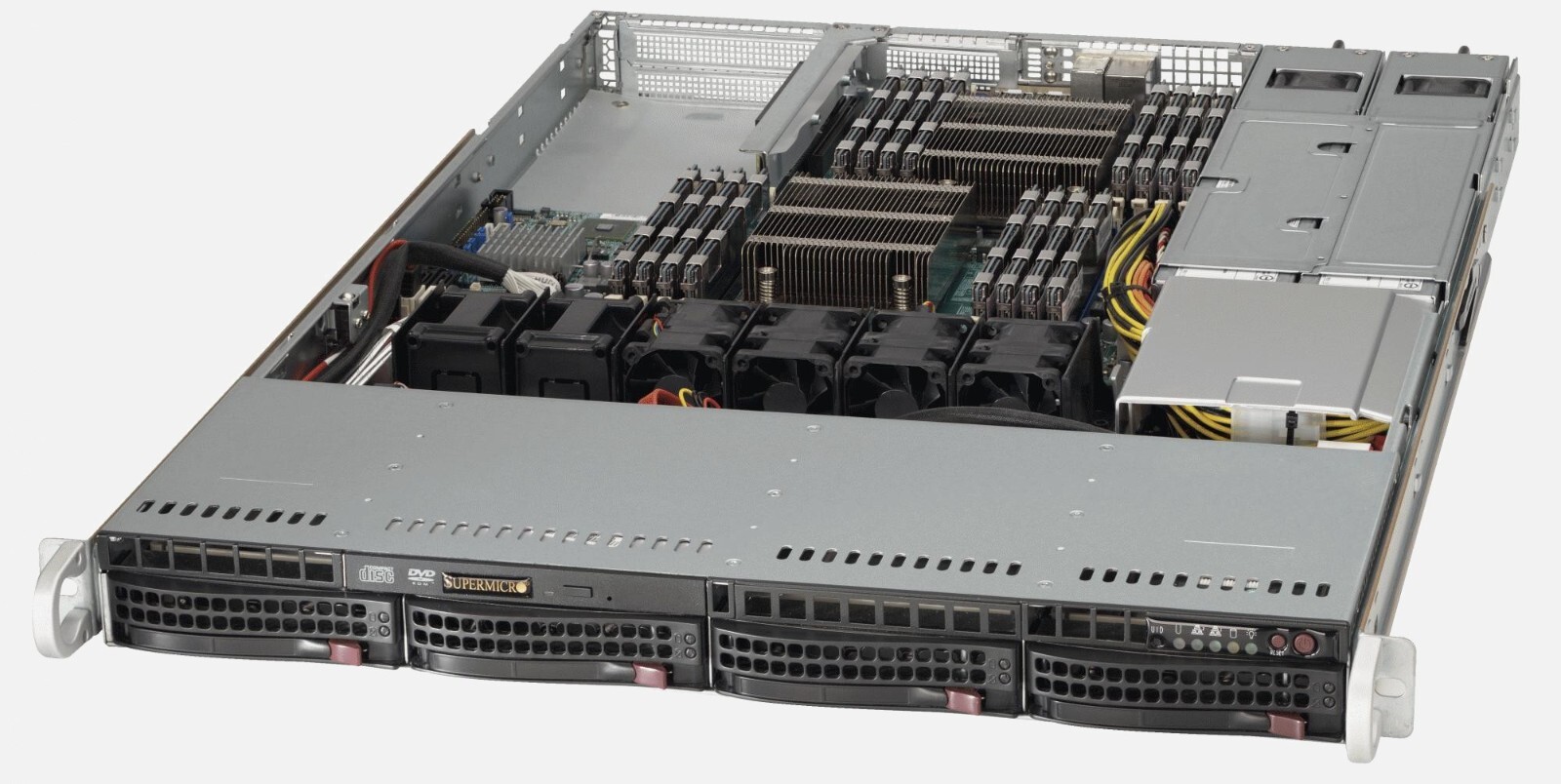

Supermicro SYS-6017R-NTF Barebones Server, NEW, IN STOCK, 5 Year Warranty
Product SKUsSYS-6017R-NTF

• SuperServer 6017R-NTF (Black)

Motherboard
Super X9DRW-iFProcessor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 130W TDP)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C602 Chipset

SATA

• Via Cable for SATA controller
• SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Renesas SH7757 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet Controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)

Graphics

• G200 (Renesas SH7757 BMC)

Input / OutputSerial ATA

• 4x SATA 2.0 ports (3Gbps)

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 6x USB 2.0 ports total
  (4x rear + 2x via header)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

ChassisForm Factor

• 1U Rackmount

Model

• 17.2" (437mm)

Height

• 1.7" (43mm)

Depth

• 25.6" (650mm)

Gross Weight

• 46 lbs (20.9kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED

Expansion SlotsPCI-Express

• 2 PCI-E 3.0 x16 full-height, Half-length slots
• UIO AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)

Drive BaysHot-swap

• 4x 3.5" Hot-swap SAS/SATA2 HDD Bays (connected to onboard storage controller)

Peripheral DrivesDVD-ROM

• Slim DVD-ROM drive (optional)

BackplaneSAS/SATA HDD Backplane
(SAS support requires optional SAS controller)System CoolingFans

• 5x 4cm Counter-rotating PWM fans

Power Supply600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital SwitchingAC Input

• 100-240V, 50-60Hz

DC Output

• +3.3V: 15A
• +5V: 18A
• +5V standby: 3A
• +12V: 49A
• -12V: 0.5A

Certification
Platinum Certified
[Test Report]System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• BIOS resuce hot keys
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  5°C to 35°C (41°F to 95°F)
• Non-operating Temperature:
  -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DRW-iF Motherboard
1U ChassisBackplaneBPN-SAS-815TQ14-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDDCable 1CBL-0188L-02130AWG IPASS/4SATA 64/54/44/34CM W/ SBRiser CardRSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slotsHeatsink / RetentionSNK-P0047PS11U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MBHeatsink / RetentionSNK-P0047PSC11U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MBCooling FanFAN-0086L4540x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825MRail SetCSE-PT51L1 setSilver chassis rail set for SC813,814,815,816,819
