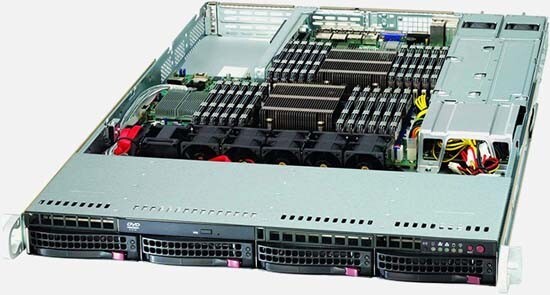

Supermicro SYS-6017R-N3RFT+ Barebones Server, NEW, IN STOCK, 5 Year Warranty
Product SKUsSYS-6017R-N3RFT+

• SuperServer 6017R-N3RFT+ (Black)

Motherboard
Super X9DRW-3TF+Processor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 130W TDP)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 24x 240-pin DDR3 DIMM slots
• Up to 1.5TB DDR3 ECC LRDIMM
• Up to 768GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C606 Chipset

SAS

• SAS from C606
• RAID 0, 1, 10 support

SATA

• Via Cable for SATA controller
• SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® X540 Dual Port 10GBase-T
• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Input / OutputSAS

• 4x SAS ports (3Gbps)

LAN

• 2x RJ45 10GBase-T ports
• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 7x USB 2.0 ports total
  (2x rear + 4x via header + 1x Type A)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

ChassisForm Factor

• 1U Rackmount

Model

• 17.2" (437mm)

Height

• 1.7" (43mm)

Depth

• 27.75" (705mm)

Gross Weight

• 43 lbs (19.45kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED

Expansion SlotsPCI-Express

• 1 PCI-E 3.0 (x16) Full-height (10" length)
• 1 PCI-E 3.0 (x8) Full-height (6.6" length)
• 1 PCI-E 3.0 (x8) Low-profile (4.1" length)
• UIO AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)

Drive BaysHot-swap

• 4x 3.5" Hot-swap SAS / SATA HDD trays (connected to onboard storage - 4 SAS ports)

Peripheral DrivesDVD-ROM

• Slim DVD-ROM drive (optional)

Backplane1x 1U SAS2 / SATA backplaneSystem CoolingFans

• 6x 4cm Counter-rotating PWM fans

Power Supply700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2CAC Input

• 700W: 100-140 V, 50-60 Hz, 8.5-6 Amp
• 750W: 180-240 V, 60-50 Hz, 5-3.8 Amp

DC Output
+5V standby

• 3 Amp

DC Output
+12V

• 700W: 58 Amp @ 100-140V
• 750W: 62 Amp @ 180-240V

With Power Distributor

• +5V: 25 Amp
• +3.3V: 25 Amp
• -12V: 0.6 Amp

CertificationGold CertifiedSystem BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  5°C to 35°C (41°F to 95°F)
• Non-operating Temperature:
  -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DRW-3TF+ Motherboard
1U ChassisBackplaneBPN-SAS-815TQ14-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDDCable 1CBL-0388L-011Ipass To 4 SATA Cable, 30AWG, 75/75/90/90 CM W/ 75CM SB, RARiser CardRSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slotsRiser CardRSC-R1UW-E8R11U RHS WIO Riser card with one PCI-E x8 slotHeatsink / RetentionSNK-P0047PS21U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MBRail SetMCP-290-00062-0N1 setRail set, quick/quick, default for 1U 17.2"W SC819,119
