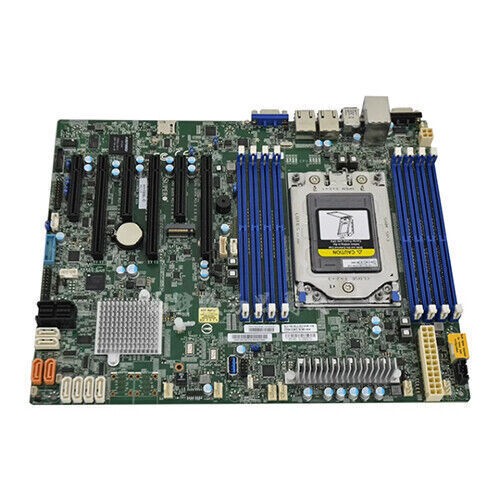

Supermicro H11SSL-C motherboard Support AMD EPYC 7001/7002 CPU LSI 3008 array
Key Features1.Single AMD EPYC™ 7001/7002*Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)2.1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)3.Expansion slots: 3 PCI-E 3.0 x16 3 PCI-E 3.0 x8 M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key 4.8 SATA 3.0 + Broadcom 3008 for 8 SAS3 ports, 1 M.25.Dual Gigabit Ethernet LAN Ports6.ASPEED AST2500 BMC graphics7.Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) Up to 4 USB 2.0 ports (2 rear + 2 via header)8.7 PWM 4-pin Fans with tachometer status monitoringProduct SKUs MBD-H11SSL-C MBD-H11SSL-C-O Physical Stats Form Factor Dimensions - 12" x 9.6" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Single AMD EPYC™ 7001/7002*series Processor (*Board revision 2.x required)
- Socket SP3
Cores - Up to 32 Cores
- Up to 64 Cores (Board revision 2.x required)
Chipset System Memory Memory Capacity - 8 DIMM slots
- Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
- Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
- 8-channel memory bus
Memory Type - DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
- DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices SATA SAS - Broadcom 3008 SAS3 (12 Gbps) controller
- RAID 0, 1, 10
IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers - 2 1GbE LAN via Intel® I210
- 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA Input / Output SAS SATA LAN - 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 5 USB 3.0 ports
(2 rear + 2 via header + 1 Type A) - 4 USB 2.0 ports (2 rear + 2 via header)
VGA Others - 1 COM port (rear)
- 2 SATA DOM power connector
- 1 TPM 2.0 header
Expansion Slots PCI-Express - 3 PCI-E 3.0 x8
- 3 PCI-E 3.0 x16
M.2 - Interface: PCI-E 3.0 x4
- Form factor: 2280, 22110
- Key: M-key
Chassis ( Optimized for H11SSL-C ) 1U - SC813MFTQC-350CB2
- SC213AC-R1K23LPB
- SC825TQC-R740LPB
- SC745BAC-R1K28B2
- AS -2013S-C0R
System BIOS BIOS Type - AMI 128Mb SPI Flash EEPROM
BIOS Features - Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 5.1
- USB Keyboard Support
- SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- SuperDoctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations - ACPI Power Management
- Power-on mode control for AC power loss recovery
PC Health Monitoring CPU - Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
- CPU switching voltage regulator
- Supports system management utility
- VBAT
FAN - Up to 7-fan status tachometer monitoring
- Up to 7 4-pin fan headers
- Dual Cooling Zone
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 7x Fan connectors
- I²C Temperature Sensing Logic
LED - CPU / System Overheat LED
Other Features - Chassis Intrusion Detection
- Chassis Intrusion Header
- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% USWe have all models included, due to the price and stock varies a lot, if you need other models, you can contact us， we will give you a quote, our product price is very low and you can order in large quantities. We are looking forward to a perfect style="text-wrap: wrap; text-align: left;">We will ship 98% of items within 5 working day upon receipt of payment, our goal is: to ship them as fast as we can. 1. All orders are shipped from China 2. Make sure your address is correct, we ship to 's address only. 4. Item will be shipped within 5 day after full payment is received(NOT counting holidays or weekends) 5. Orders are shipped Monday through Friday, excluding US federal holidays. No orders are shipped on weekends 6. All parcels will provide a tracking number for your tracking. 9.Import duties and taxes are not included in the item price or shipping charges. These charges are the buyer's responsibility.
If the product is faulty, please contact us via mail and we will provide a good solution for you.
