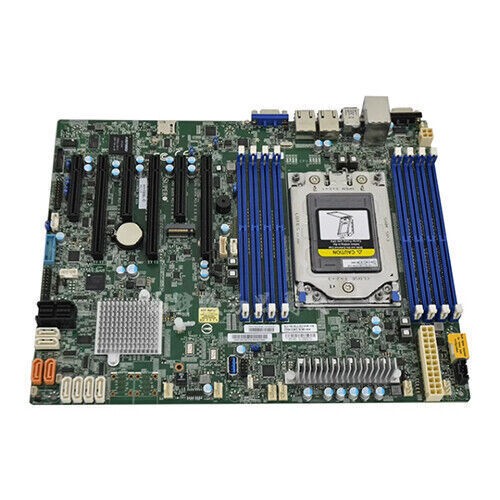

Supermicro H11SSL-C motherboard Support AMD EPYC 7001/7002 CPU LSI 3008 array
Key Features1.Single AMD EPYC™ 7001/7002*Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)2.1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)3.Expansion slots: 3 PCI-E 3.0 x16 3 PCI-E 3.0 x8 M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key 4.8 SATA 3.0 + Broadcom 3008 for 8 SAS3 ports, 1 M.25.Dual Gigabit Ethernet LAN Ports6.ASPEED AST2500 BMC graphics7.Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) Up to 4 USB 2.0 ports (2 rear + 2 via header)8.7 PWM 4-pin Fans with tachometer status monitoringProduct SKUs MBD-H11SSL-C MBD-H11SSL-C-O Physical Stats Form Factor Dimensions - 12" x 9.6" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Single AMD EPYC™ 7001/7002*series Processor (*Board revision 2.x required)
- Socket SP3
Cores - Up to 32 Cores
- Up to 64 Cores (Board revision 2.x required)
Chipset System Memory Memory Capacity - 8 DIMM slots
- Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
- Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
- 8-channel memory bus
Memory Type - DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
- DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices SATA SAS - Broadcom 3008 SAS3 (12 Gbps) controller
- RAID 0, 1, 10
IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers - 2 1GbE LAN via Intel® I210
- 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA Input / Output SAS SATA LAN - 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 5 USB 3.0 ports
(2 rear + 2 via header + 1 Type A) - 4 USB 2.0 ports (2 rear + 2 via header)
VGA Others - 1 COM port (rear)
- 2 SATA DOM power connector
- 1 TPM 2.0 header
Expansion Slots PCI-Express - 3 PCI-E 3.0 x8
- 3 PCI-E 3.0 x16
M.2 - Interface: PCI-E 3.0 x4
- Form factor: 2280, 22110
- Key: M-key
Chassis ( Optimized for H11SSL-C ) 1U - SC813MFTQC-350CB2
- SC213AC-R1K23LPB
- SC825TQC-R740LPB
- SC745BAC-R1K28B2
- AS -2013S-C0R
System BIOS BIOS Type - AMI 128Mb SPI Flash EEPROM
BIOS Features - Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 5.1
- USB Keyboard Support
- SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- SuperDoctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations - ACPI Power Management
- Power-on mode control for AC power loss recovery
PC Health Monitoring CPU - Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
- CPU switching voltage regulator
- Supports system management utility
- VBAT
FAN - Up to 7-fan status tachometer monitoring
- Up to 7 4-pin fan headers
- Dual Cooling Zone
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 7x Fan connectors
- I²C Temperature Sensing Logic
LED - CPU / System Overheat LED
Other Features - Chassis Intrusion Detection
- Chassis Intrusion Header
- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
