Product Description

Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for you.

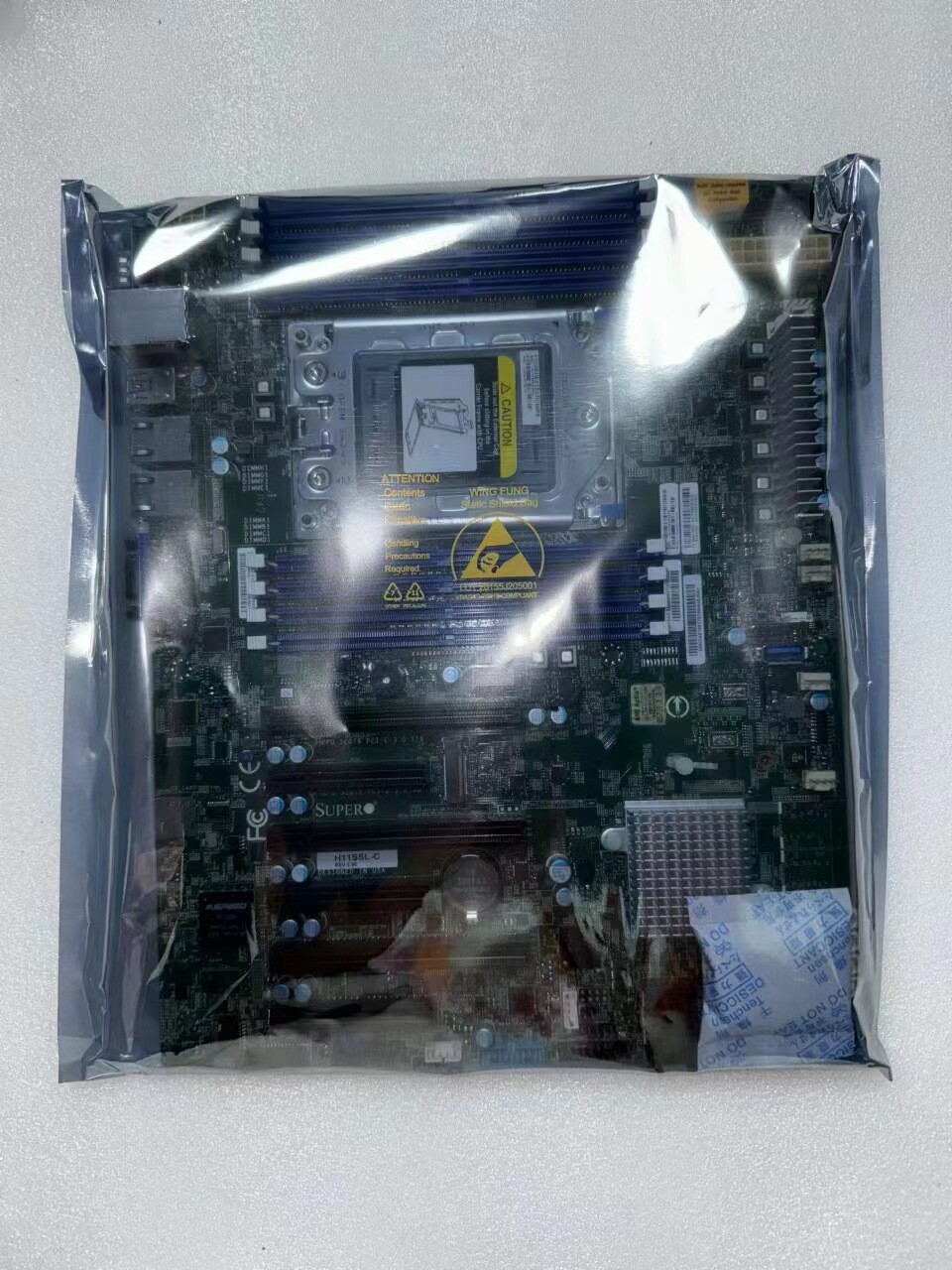

Supermicro H11SSL-C DDR4 SP3 Server Motherboard Support AMD EPYC 7001/7002

Product SKUs

MBD-H11SSL-C

·H11SSL-C

MBD-H11SSL-C-B

·H11SSL-C (Bulk Pack)

MBD-H11SSL-C-O

·H11SSL-C (Retail Pack)

Physical Stats

Form Factor

·ATX

Dimensions

·12" x 9.6" (30.5cm x 24.4cm)

Processor/Chipset

CPU

·Single AMD EPYC™ 7001/7002*series Processor (*Board revision 2.x required)

·Socket SP3

Cores

·Up to 32 Cores

·Up to 64 Cores (Board revision 2.x required)

Chipset

·System on Chip

System Memory

Memory Capacity

·8 DIMM slots

·Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs

·Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)

·8-channel memory bus

Memory Type

·DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs

·DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)

DIMM Sizes

·8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)

Memory Voltage

·1.2V

Error Detection

·Corrects single-bit errors

·Detects double-bit errors (using ECC memory)

On-Board Devices

SATA

·SATA3 (6 Gbps)

SAS

·Broadcom 3008 SAS3 (12 Gbps) controller

·RAID 0, 1, 10

IPMI

·Support for Intelligent Platform Management Interface v.2.0

·IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

·ASPEED AST2500 BMC

Network Controllers

·2 1GbE LAN via Intel® I210

·1 Realtek RTL8211E PHY (dedicated IPMI)

VGA

·ASPEED AST2500 BMC

Input / Output

SAS

·8 SAS3 (12 Gbps) ports

SATA

·8 SATA3 (6 Gbps) ports

LAN

·2 RJ45 Gigabit Ethernet LAN ports

·1 RJ45 Dedicated IPMI LAN port

USB

·5 USB 3.0 ports
(2 rear + 2 via header + 1 Type A)

·4 USB 2.0 ports (2 rear + 2 via header)

VGA

·1 VGA port

Others

·1 COM port (rear)

·2 SATA DOM power connector

·1 TPM 2.0 header

Expansion Slots

PCI-Express

·3 PCI-E 3.0 x8

·3 PCI-E 3.0 x16

M.2

·Interface: PCI-E 3.0 x4

·Form factor: 2280, 22110

·Key: M-key

Chassis ( Optimized for H11SSL-C )

1U

·SC813MFTQC-350CB2

·SC813MFTQC-R407CB

2U

·SC213AC-R1K23LPB

·SC825TQC-R740LPB

3U

·SC836BE1C-R1K23B

4U

·SC745BAC-R1K28B2

Server(s) ( with H11SSL-C )

Model(s)

·AS -2013S-C0R

System BIOS

BIOS Type

·AMI 128Mb SPI Flash EEPROM

BIOS Features

·Plug and Play (PnP)

·DMI 2.3

·PCI 2.2

·ACPI 5.1

·USB Keyboard Support

·SMBIOS 3.1.1

Management

Software

·Super Doctor 5

·Watch Dog

·NMI

·SUM

·IPMI 2.0, KVM with dedicated LAN

Power Configurations

·ACPI Power Management

·Power-on mode control for AC power loss recovery

PC Health Monitoring

CPU

·Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby

·CPU switching voltage regulator

·Supports system management utility

·VBAT

FAN

·Up to 7-fan status tachometer monitoring

·Up to 7 4-pin fan headers

·Dual Cooling Zone

·Status monitor for speed control

·Pulse Width Modulated (PWM) fan connectors

Temperature

·Monitoring for CPU and chassis environment

·CPU Thermal Trip Support

·Thermal control for 7x Fan connectors

·I²C Temperature Sensing Logic

LED

·CPU / System Overheat LED

Other Features

·Chassis Intrusion Detection

·Chassis Intrusion Header

·UID

Operating Environment / Compliance

Environmental Specifications

·Operating Temperature:
10°C to 35°C (50°F to 95°F)

·Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)

·Operating Relative Humidity:
8% to 90% (non-condensing)

·Non-operating Relative Humidity:
5% to 95% (non-condensing)
