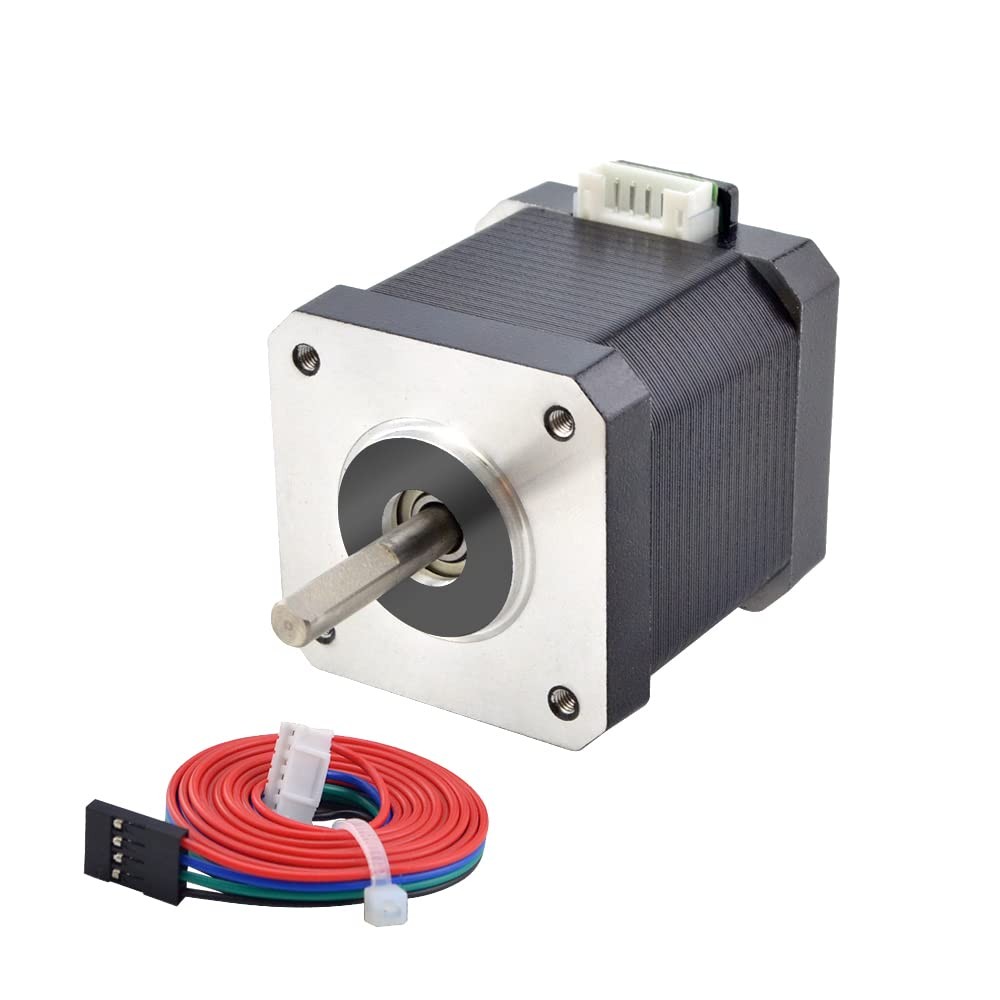

STEPPERONLINE Nema 17 Stepper Motor 2A 55Ncm Bipolar 1.8 Degree 4-Lead 42*48 Description

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x48mm. It has 4 wires, each phase draws current 2A, with holding torque 55Ncm.Electrical Specification*Manufacturer Part Number: 17HE19-2004S*Motor Type: Bipolar Stepper*Step Angle: 1.8 deg*Holding Torque: 55Ncm*Rated Current/phase: 2A*Phase Resistance: 1.3ohms*Inductance: 2.4.00mH ± 20%(1KHz)Physical Specification*Frame Size: 42 x 42mm*Body Length: 48mm*Shaft Diameter: Φ5mm*Shaft Length: 24mm*D-cut Length: 15mm*Number of Leads: 4*Lead Length: 1000mm*Weight: 400gConnectionA+: Black, A-: Blue, B+: Green, B-: RedWarning:Make sure the motor connect to a constant current or chopper drive controller before you test motor.Connecting the motor directly to a power supply will destroy the motor.

Features:

• Nema 17 Stepper Motor with 55Ncm holding troque
• Bipolar stepper motor ,dimension 42*42*48mm, 2 phase, 4 leads
• Step angle 1.8deg, 200 step/revolution
• Rated Current/phase 2A & Phase Resistance 1.3ohms
• Low noise high troque 3d printer stepper motor, build with 1m Cable and Connector

Product Details:

• Publisher: STEPPERONLINE
• Publication date: 0
• Item weight: 400 g
• Dimensions: 4.2 x 4.2 x 4.2 cm
