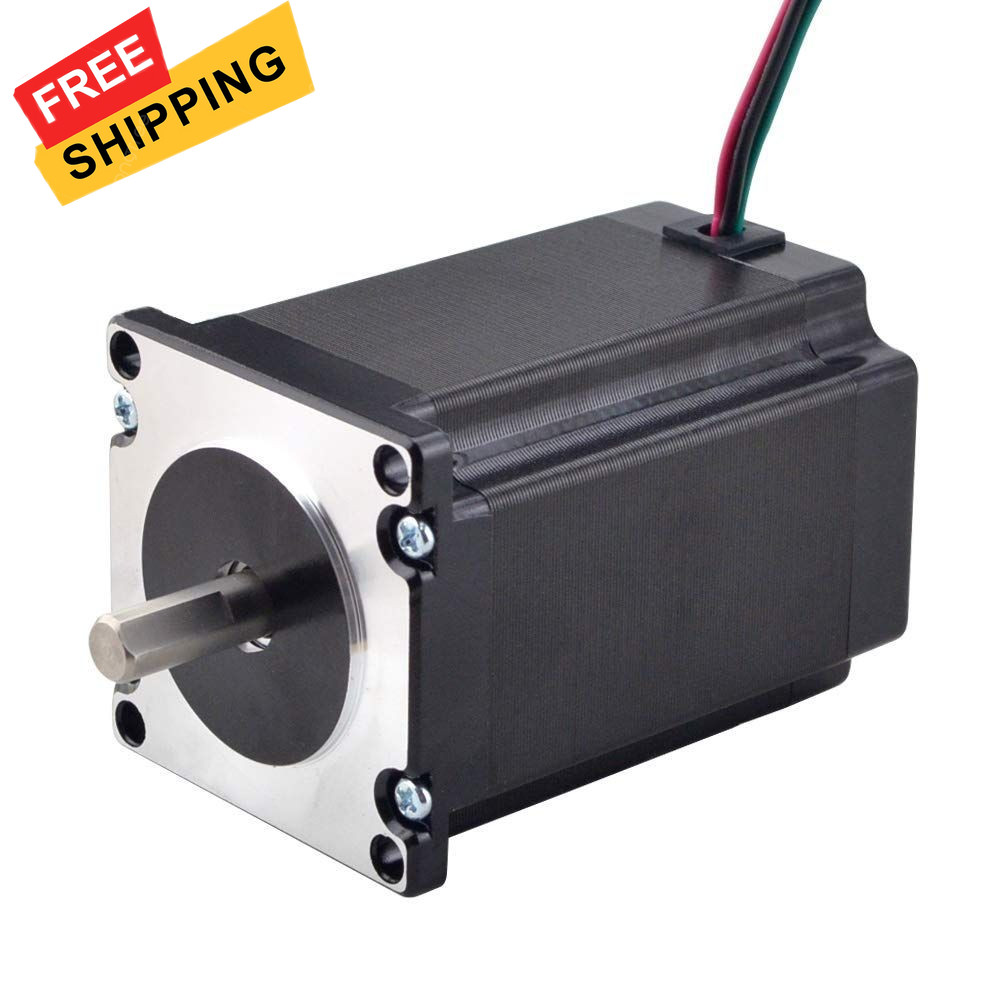

STEPPERONLINE Nema 23 Stepper Motor 2.4Nm(339.79oz.in) 4.0A 8mm Shaft...
Price: US $52.15
STEPPERONLINE Nema 23 Stepper Motor 2.4Nm(339.79oz.in) 4.0A 8mm Shaft 57x57x82mm 4 Wires Description
Electrical Specification *Manufacturer Part Number: 23HS32-4004S *Number Of Phase: 2 *Step Angle: 1.8 deg *Holding Torque: 2.4Nm(339.79oz.in) *Rated Current/phase: 4.0A *Phase Resistance: 0.65ohms *Inductance: 3.2mH ± 20%(1KHz) Physical Specification *Frame Size: 57 x 57mm *Body Length: 82mm *Shaft Diameter: Φ8mm *Shaft Length: 21mm *D-cut Length: 15mm *Number of Leads: 4 *Lead Length: 300mm *Weight: 1.2kg Connection A+: Black, A-:Green, B+: Red, B-: Blue Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
Features:
Nema 23 stepper motor with 8mm shaft
2.4Nm(339.79oz.in) Holding Torque
Nema 23 motor driving voltage is 24-48VDC, suggest 36 VDC
Product Dimensions : 2.24 x 2.24 x 2.24 inches; 2.76 Pounds
Item model number : 23HS32-4004S
Manufacturer : STEPPERONLINE
Brand: STEPPERONLINE
Voltage: 24 Volts
Horsepower: 0.17 hp
Product Dimensions: 2.24"W x 2.24"H
Material: Stainless Steel
