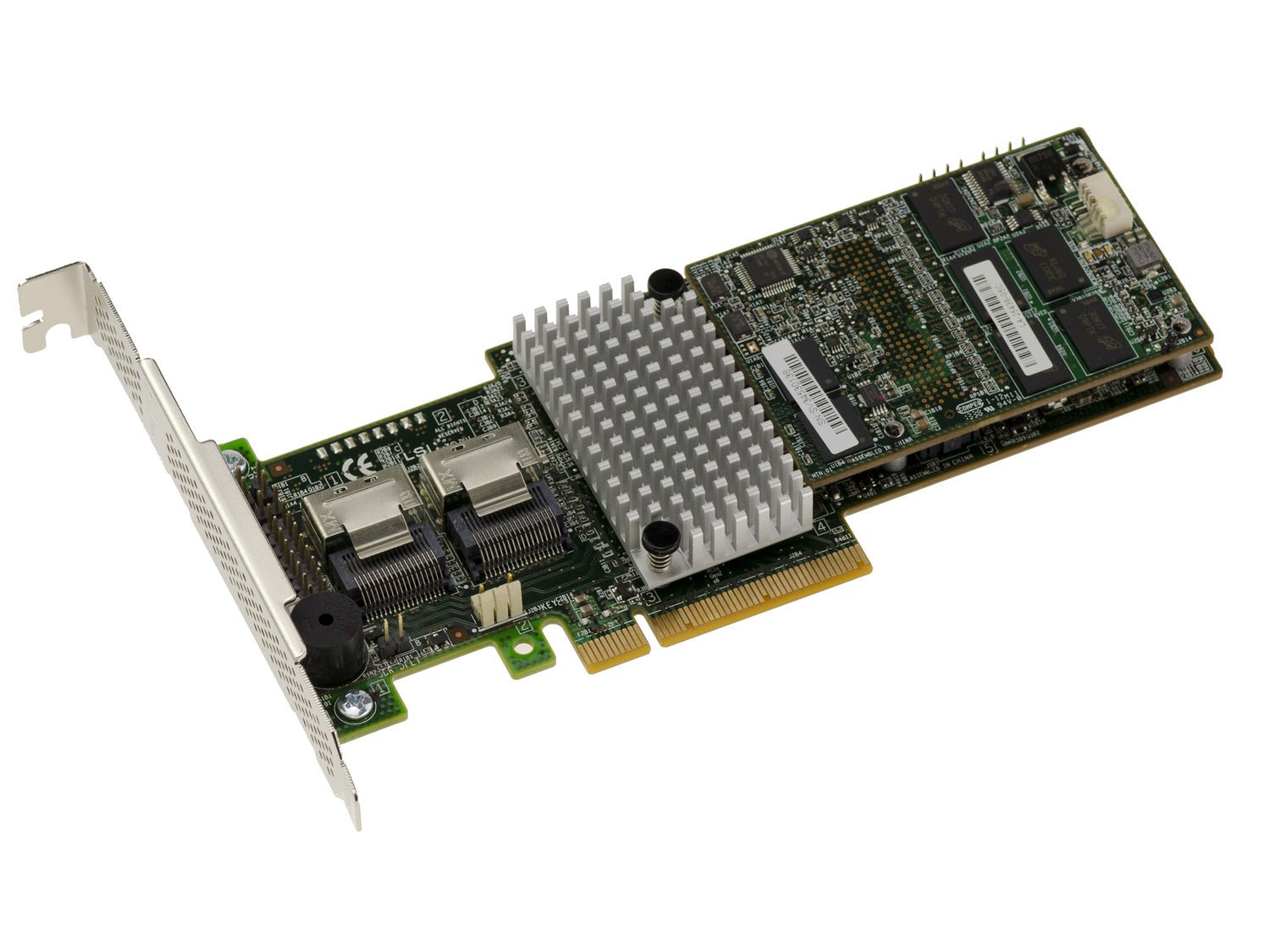

LSI card delivered in "OEM" version, i.e. delivered in a neutral box and with drivers to download from the Broadcom website. Reference Ref L3-25422-45B.
Main functions:
8 internal 6Gb/s SATA+SAS ports, via Mini-SAS SFF-8087 (horizontal mounting),
AL CORE 6Gb/s ROC?x2 800MHz PowerPC® LSI SAS 2208 processor,
1 GB 1333MHz DDRIII Sd'aM cache memory,
Optional battery,
RAID 0, 1, 5 and 6 / RAID Spans 10, 50 and 60.
Support NAND flash or BBU protective cover.
Features :
Eight internal 6 Gbps SATA+SAS ports,
Two internal mini-SAS connectors (SFF8087),
PCIe 3.0 x8,
LSI SAS 2208 from al-Core RAID on Chip (ROC),
6GB/s transfer rate per port,
SAS Half Duplex bandwidth 600MB/s per lane,
1 GB 1333MHz DDRIII Sd'aM cache memory,
Operating voltage 3.3V +/-9%,
Support up to 128 devices in non-RAID mode,
Optional battery LSIiBBU09
RAID:
RAID 0, 1, 5, and 6,
RAID spans 10, 50 and 60, Online Capacity Expansion (OCE), Online RAID Level Migration (RLM),
Auto resume,
Single controller Multipathing, Load Balancing,
Configurable bands up to 1MB,
Fast initialization,
SSD Guard compatible,
SMART compatible,
Support up to 64 logical drives.
COD support.
Hot Spare,
SES and SGPIO compatible.
Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3 FCC Class A, Class B UL1950 UL CSA C22.2 VCCI RRL for MIC BSMI C-tick
Microsoft® Windows® Vista/2008/Server 2003, Linux®, Solaris? (x86), FreeBSD ® , VMware and more.
Card delivered with Low and High Profile brackets.
