Description
Official Raspberry Pi SSD Kit, Includes 256GB / 512GB High-speed Solid State Drive And Raspberry Pi M.2 HAT+, Complies With PCIe Gen 3 Standard, Suitable For Raspberry Pi 5Raspberry Pi SSD Kit
Designed By Raspberry Pi
Version Options
Raspberry Pi SSD Kit 256GB
256GB capacity
Raspberry Pi SSD Kit 512GB
512GB capacity
Product features
The Raspberry Pi SSD Kit bundles aRaspberry Pi M.2 HAT+with aRaspberry Pi NVMe SSD. It unlocks outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from SSD. The Raspberry Pi SSD Kit is available with 256GB and 512GB capacity, and includes a 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 with theRaspberry Pi Active Coolerin place.
Key features include:
- Conforms to the Raspberry Pi HAT+ specification
- Contains Raspberry Pi SSD (256GB NVMe or 512GB NVMe)
- 256GB NVMe
- 40k IOPS (4kB random reads)
- 70k IOPS (4kB random writes)
- 512GB NVMe
- 50k IOPS (4kB random reads)
- 90k IOPS (4kB random writes)
- Includes 16mm stacking header, spacers, and screws for fitting to Raspberry Pi 5
- Operating temperature 0°C ~ 50°C (ambient)
SpecificationsModelRaspberry Pi SSD Kit 256GBRaspberry Pi SSD Kit 512GBcapacity256GB512GBspeed40k IOPS (4kB random reads)
70k IOPS (4kB random writes)50k IOPS (4kB random reads)
90k IOPS (4kB random writes)FeaturesComplies with PCIe Gen 3 standard
NVMe 1.4 register interface and command set
Conforms to the Raspberry Pi HAT+ specificationForm factorM.2 2230Operating temperature0°C ~ 50°C
Product show
* for reference only, please refer to the Package Content for detailed part list
outline dimensions
Resources & Services

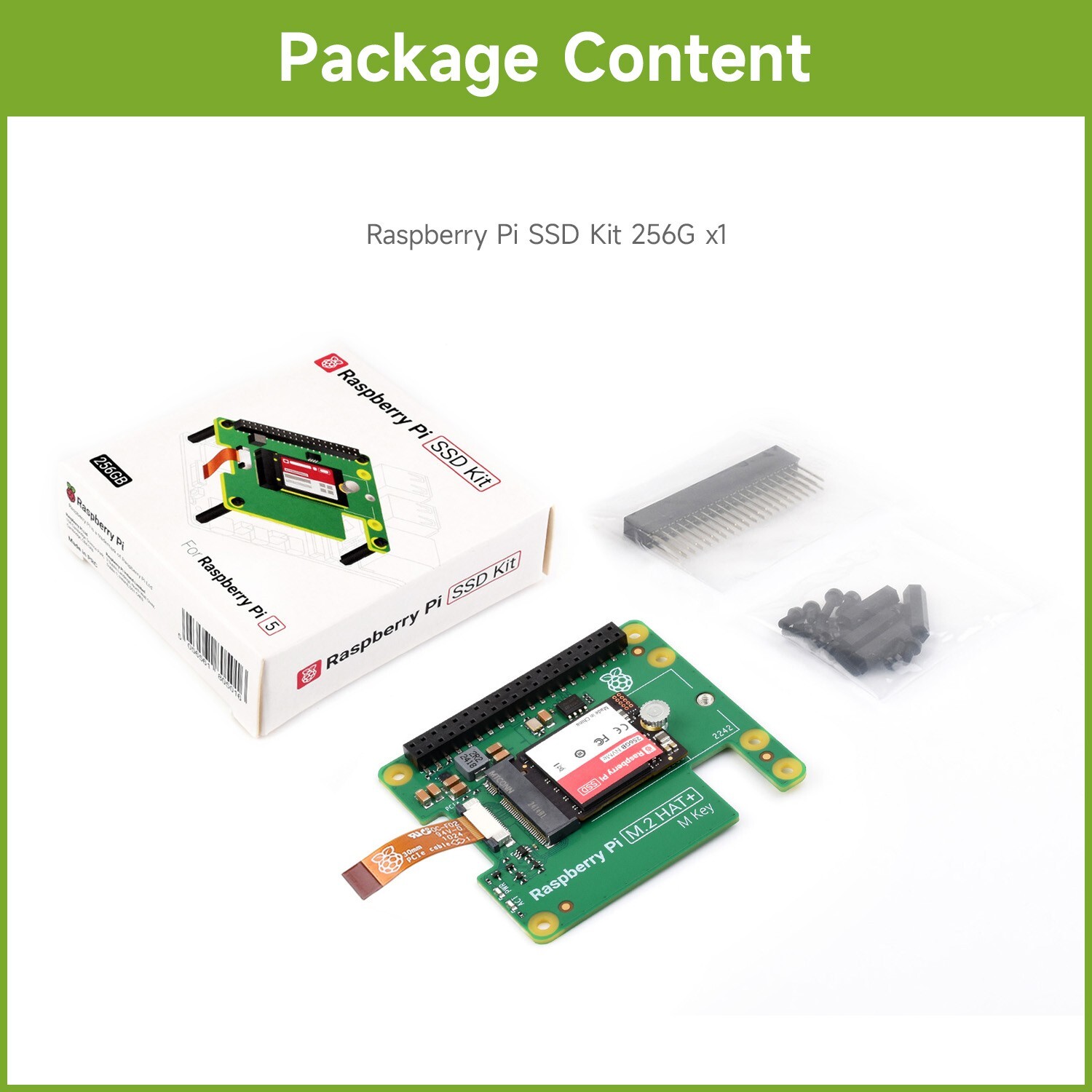

Package Content
Weight:0.035 kg
Raspberry Pi SSD Kit 256GB
Raspberry Pi SSD Kit 256GB x1
Raspberry Pi SSD Kit 512GB
Raspberry Pi SSD Kit 512GB x1
