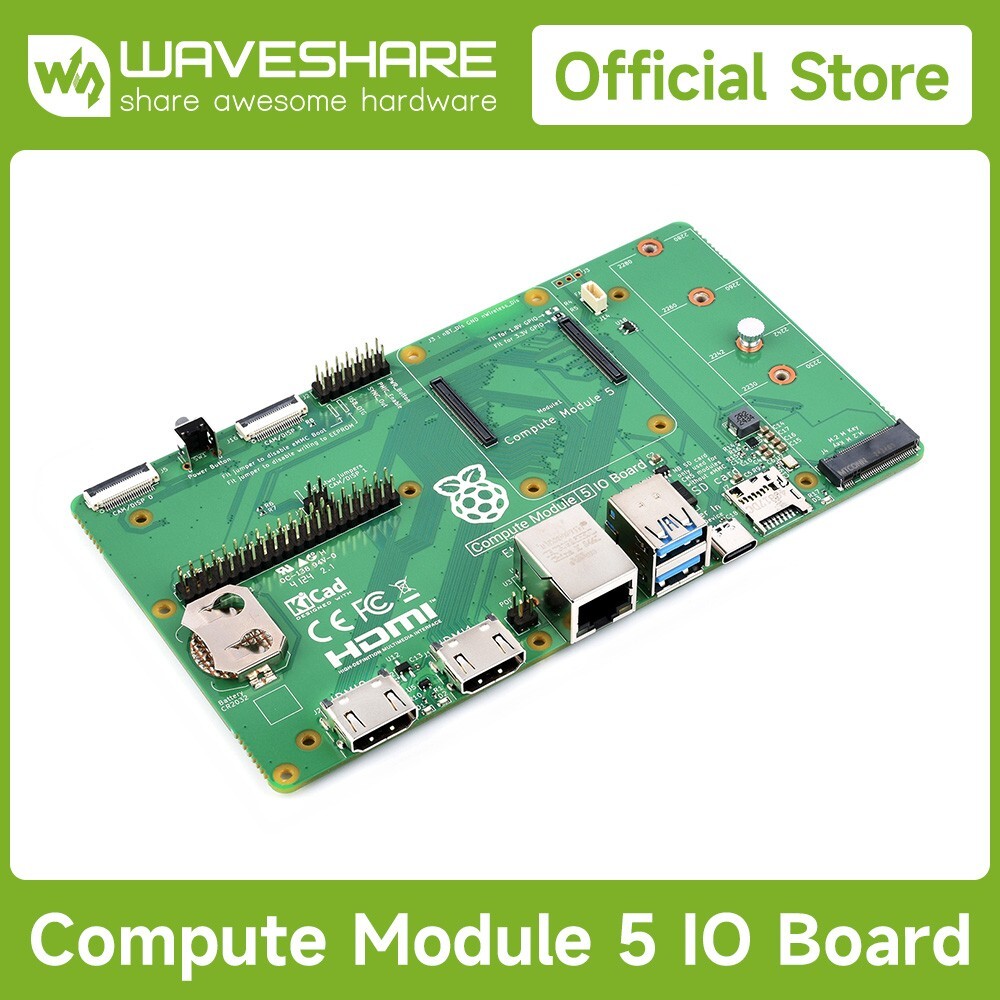

Official Raspberry Pi Compute Module 5 IO Board, A Development Platform And Reference Base-board Designed For CM5, Suitable For All Variants Of Compute Module 5 Compute module 5 IO Board
TheCompute Module 5 IO Boardis a companion board for Raspberry Pi Compute Module 5 (supplied separately). It is designed for use both as a development system for Compute Module 5 and as an embedded board integrated into end products.
The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe modules. The major user connectors are located along one side to make enclosures simple.
Specifications CM5 socket suitable for all variants of Compute Module 5 network Gigabit Ethernet RJ45 port Supports PoE function, onboard PoE header, an external PoE module (NOT included) is required Connectors Raspberry Pi 40PIN GPIO header M.2 M-Key PCIe socket, compatible with 2230, 2242, 2260 and 2280 form factors USB 2 x USB3.2 Gen1 connectors
1 x Type-C port for updating Compute module 5 MIPI 2 x 4-lane MIPI DSI/CSI-2 connectors Video 2 x HDMI ports with 4K support RTC Real-time clock with CR / ML2032 battery socket Storage socket MicroSD card socket for Compute Module 5 Lite (without eMMC) variants Fan connector 5V, JST-SH PWM 4PIN connector Power input 5V @5A via Type-C port, the same standard as the Raspberry Pi 5 Dimensions 160 × 90mm
Supports M.2 NVMe Solid State Drive
Faster reading/writing speed compared to the Micro SD slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, support booting Raspberry Pi from NVMe Solid State Drive
* for reference only, the Solid State Drive is NOT included
Interface introduction
* for reference only, the Compute Module 5 is NOT included
Product show
* for reference only, please refer to the Package Content for detailed part list
outline dimensions
Resources & Services
Package Conten
Weight:0.107 kg
- Compute Module 5 IO Board x1
- Jumper (3pcs) x1
