Title NF-8601W LAN Network Cable Tester UTP STP Diagnose Tone Tracer Tel. Wire Tracker
PRODUCT DESCRIPTION
International Buyers - Please Note:
This item located in United States and only ship to United States.
If you need to return the item for some reasons, pls contact us via message at the fist time, we will try our best to help you andarrange the return for you. Pls do not send back directly without permission.Thank you!!!

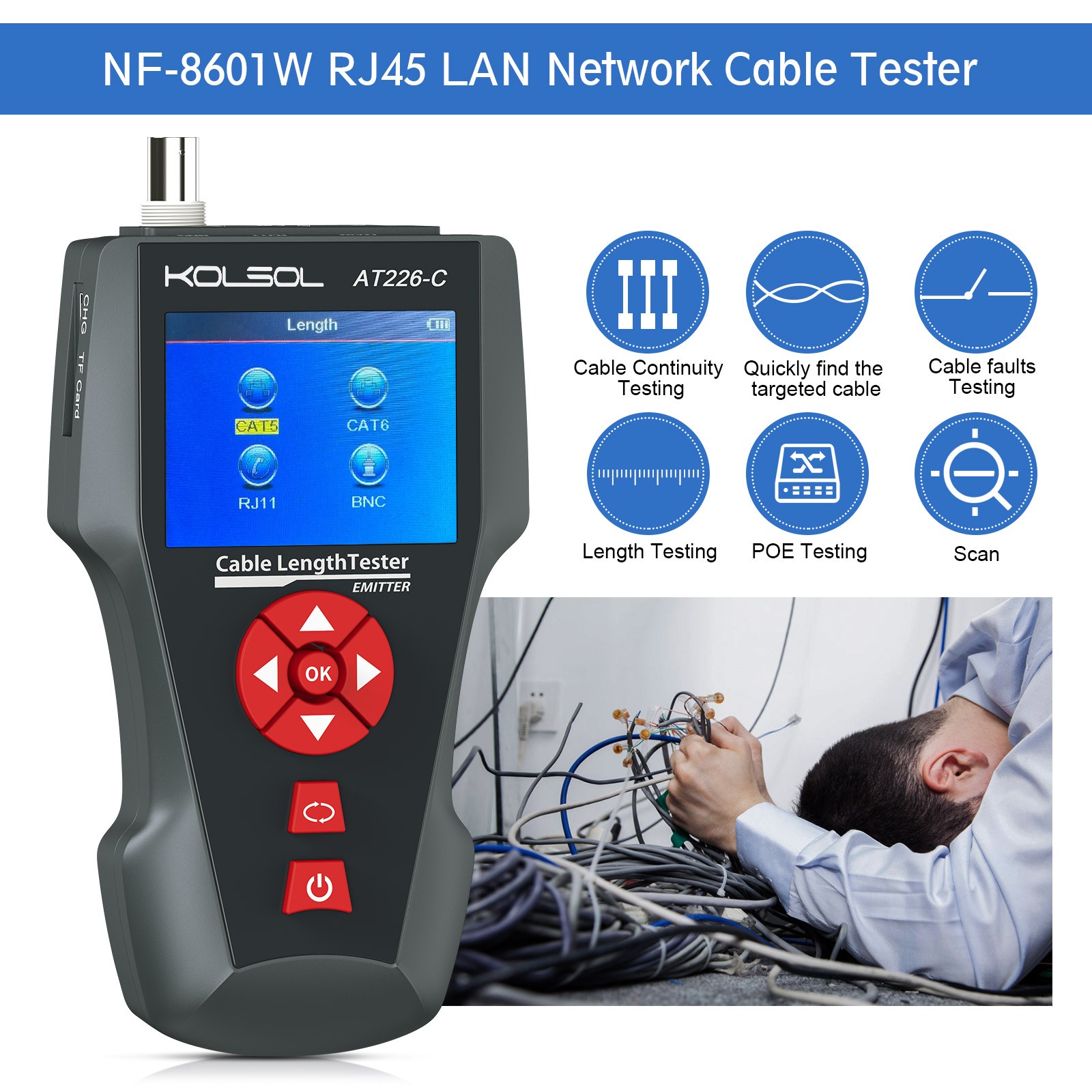

KOLSOL AT226-C NF-8601WNetwork Cable Tester For RJ45, RJ11, BNC, PING/POE Metal Cable With 8 Identifier
AT226-C is a multifunction device that can measure cable length, cable tracing, cable continuity testing, PoE and PING functions, also it can detect voltage presence. Users can read the test results visually from the Big LCD color Capable to test open, short, cross connection,
2. Perform crosstalk test on network cable to solve the potential problem of slow speed.
3. Quickly find the targeted cable without stripping isolation among unknown cables.
4. Measure length of network cable, coaxial cable, telephone cable.
5. TF function to import and export data.
6. Locate breakage and short position accurately.
7. Detect PoE presence.
8. PING Testing
9. Detecting voltage (90-1000V)
10. 8 remote indentifier are test which pin of the network cable is providing the prower
Shift scan mode based on the working environment
Anti AC-interference scanning
Length measurement and faults distance Big LCD color screen 320*240
2. Function of storage and memory
3. Currency detection and lighting lamp
4.Automatic delay power on-off
5.Low voltge alarm Name :KOLSOL
Model Number :AT226-C NF-8601W
Place of Origin :Shenzhen.China
Port :RJ45, RJ11, BNC
Test length :RJ11,RJ45 ,BNC
Tracking Type :RJ45, RJ11, BNC , and Metal Cable
Other Function :PING test, PoE detect
Power :Lithium battery
Network Cable Tester AT226-C Transmitter Specifications
LCD screen
60 x 45mm
Tone frequency
130KHz
The range of testing cable
<2000m
Trace cable conected to switch
anti-jamming
Tone mode
2 Tones, adjustable
Battery type
Lithium battery
Fit for connectors
RJ11, RJ45, BNC, PING/PoE
Dimensions (LxWxD)
185 x 80 x 32mm
Network Cable Tester AT226-C Receiver Max. working current
Less than 70mA
Earphone jack
1
LED illumination
2 LEDs
Battery type
Lithium battery
Dimensions (LxWxD)
218 x 46 x 29mm
Network Cable Tester AT226-C Remote Unit Specifications
Remotes Compatible
RJ11, RJ45, BNC
Remote indentifiers
8 pcs (ID1-ID8)
Dimensions (LxWxD)
107 x 30 x 24mm
Package Included:
1pc x telephone line adapter
1pc x network cable adapter
1pc x Cable clips
2pcs x Built-in Lithium battery
