Functions
1. Capable to test open, short, cross connection
2. Perform crosstalk test on network cable to solve the potential problem of slow speed.
3. Quickly find the targeted cable without stripping isolation among unknown cables.
4. Measure length of network cable, coaxial cable, telephone cable.
5. TF function to import and export data.
6. Locate breakage and short position accurately.
7. Detect PoE presence.
8. PING Testing
9. Detecting voltage (90-1000V)
10. 8 remote indentifier are included.
Benefits
1. Big LCD color screen 320*240
2. Function of storage and memory
3. Currency detection and lighting lamp
4.Automatic delay power on-off
5.Low voltge alarm function
Item Specifics
Is_customized: Yes
Model Number: NF-8601W
Place of Origin: China
Port: RJ45, RJ11, BNC
Test length: RJ11,RJ45 ,BNC
Tracking Type: RJ45, RJ11, BNC , and Metal Cable
Other Function: PING test， PoE detect
Power: Lithium battery

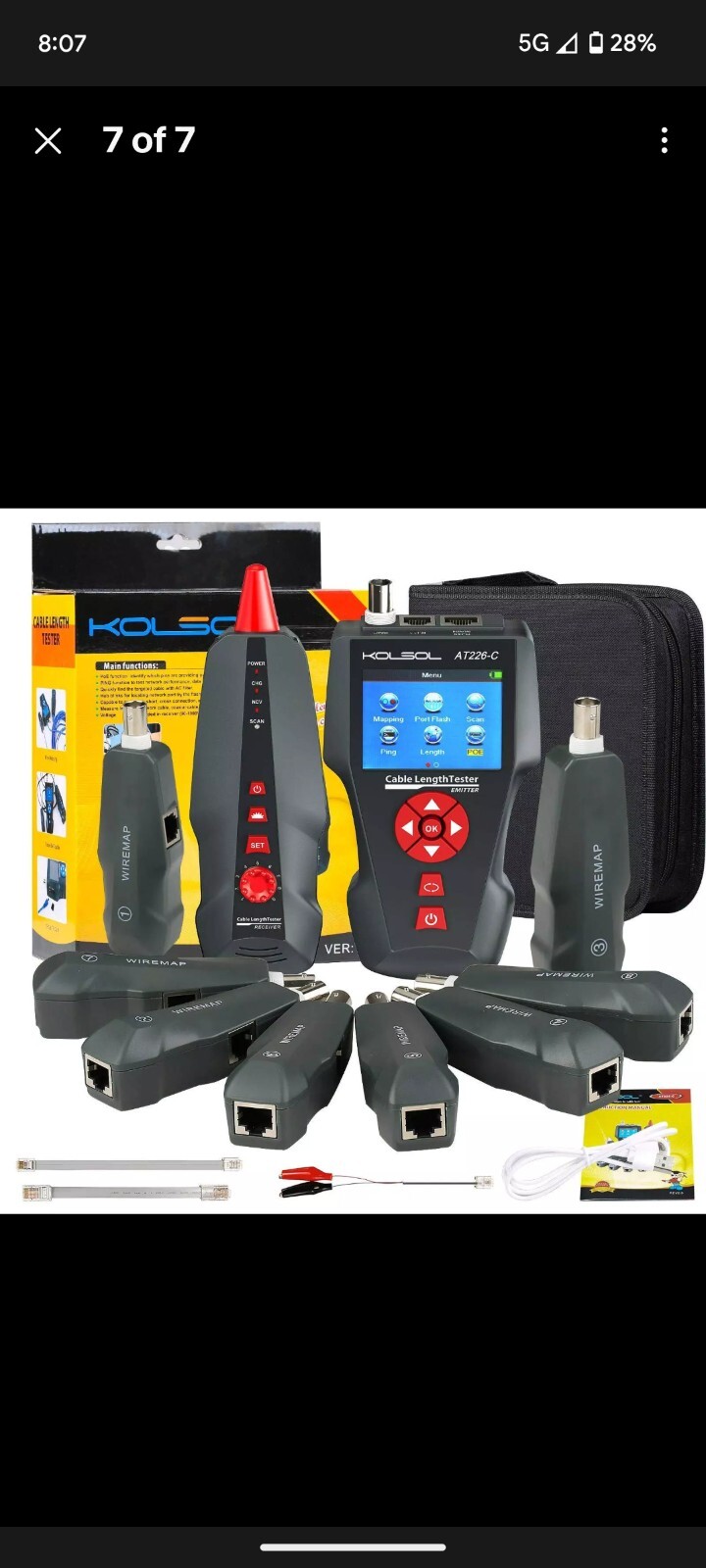

Accessories Included
Built-in Lithium battery x 2 sets
telephone line adapter x 1 set
network cable adapter x 1 set
Cable clips x 1 set
【 PoE Function】 Identify which pins are providing power and detect how much voltage.
【 PING Function】To test network performance, data packet, min & max time.
【 AC Filter 】Tone trace cable with complete AC Interference Rejection.
【 Hub Blink 】Hub blink for locating network port by the flashing port light on Hub / Switch.
【 TF Function】 To import and export data from comupter (160 sets, txt format).
