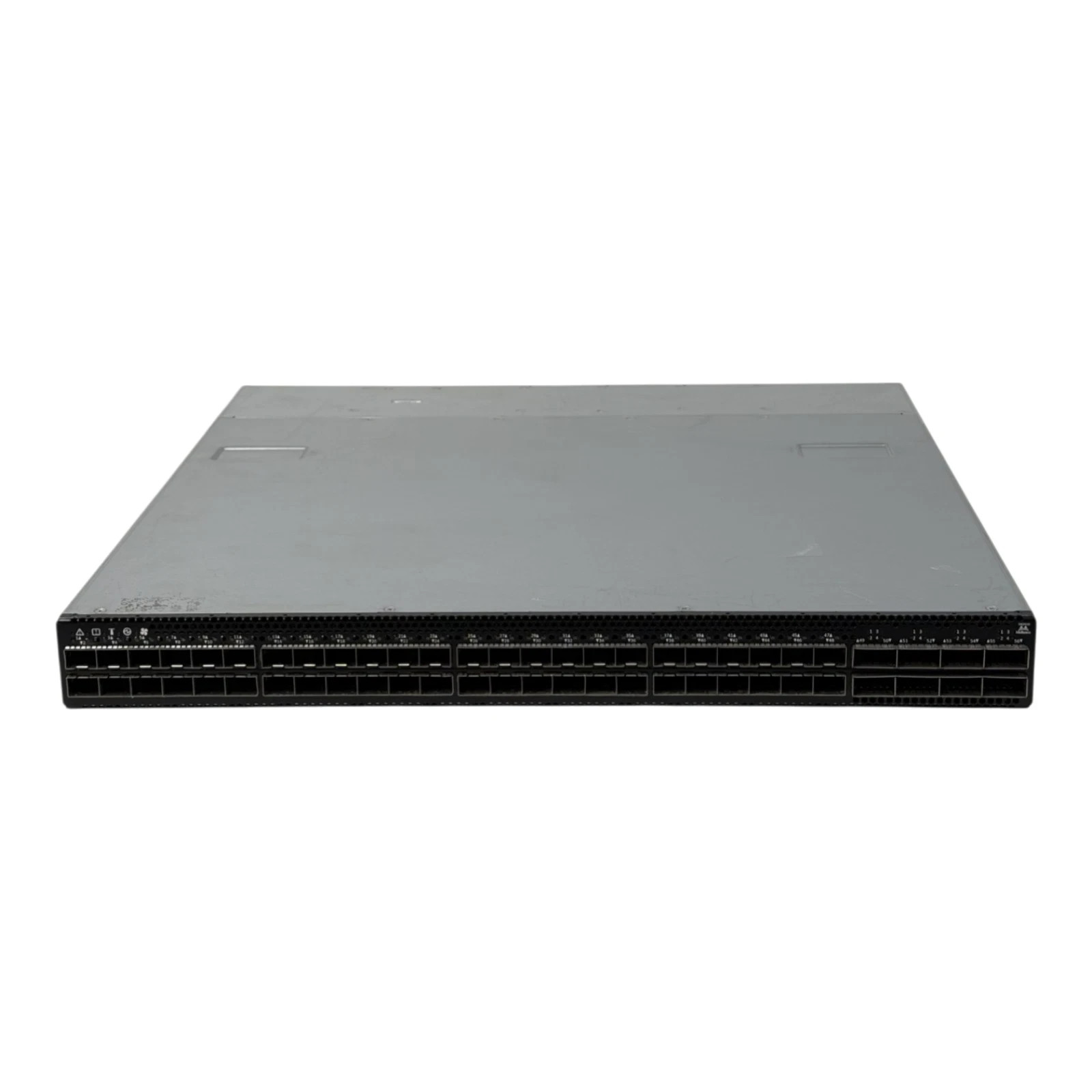

Mellanox SN2410 48x 10G SFP28 8x 100G QSFP28 Short Ethernet Switch MSN2410-BB2R

In Good Condition,Full Working Order
Tested
2 Year Warranty

Short Depth
Front to Back Airflow

Mellanox OS3.6.1102Installed

Included

• 1 x Mellanox SN2410 48x 10G SFP28 8x 100G QSFP28 Short Ethernet Switch MSN2410-BB2R
• 2 x 460W Powe Supplies MTEF-PSR-AC-A(Front to Back)
• 4 x Fan Modules MTEF-FANR-A (Front to Back)

Compliant Standards: VCCI, FCC, RoHS, ICES, cTUVus, RCM, CU

Device Type: Switch - 56 ports - L3 - Managed

Enclosure Type: Front to back airflow rack-mountable 1U

Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, event log, Access

Humidity Range Operating: 10 - 85% (non-condensing)

Humidity Range Storage: 10 - 90% (non-condensing)

Interfaces: 48 x 10Gbit LAN SFP ¦ 2 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 8 x 40Gbit LAN QSFP28 ¦ 1 x USB

Jumbo Frame Support: 9216 bytes

Max Operating Temperature: 45 °C

Max Storage Temperature: 70 °C

Max Supported Qty: 2

Min Operating Temperature: 0 °C

Min Storage Temperature: -40 °C

Performance: Switching capacity: 4 Tbps ¦ Latency: 300 µs

Ports: 48 x 10 Gigabit SFP28 + 8 x 40 Gigabit QSFP28

Power Device: Internal power supply - hot-plug

Power Redundancy: Yes

Power Redundancy Scheme: 1+1

Processor: 1 x Intel Celeron: 1.4 GHz

RAM: 8 GB

Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, SSH-2, CLI

Routing Protocol: BGP-4, VRRP, OSPFv2, static IPv4 routing, static IPv6 routing

Bootlog:

switch-8a817e [standalone: master]# show version
Product name:MLNX-OS
Product release:3.6.1102
Build ID:#1-dev
Build date:2016-06-30 17:13:47
Target arch:x86_64
Target hw:x86_64
Built by:jenkins@fit-build-91
Version summary:X86_64 3.6.1102 2016-06-30 17:13:47 x86_64Product model:x86onie
Host ID:248A078A817E
System serial num: MT1647X01300
System 28.110s
CPU load averages: 3.57 / 4.39 / 3.06
Number of CPUs:2
System memory:1738 MB used / 6187 MB free / 7925 MB total
Swap:0 MB used / 0 MB free / 0 MB total
switch-8a817e [standalone: master]# show (RPM) [standalone: master]# show licenses
No licenses have been configured.
switch-8a817e [standalone: master]# show
FAN1ready
FAN2ready
FAN3ready
FAN4ready
PS1ready
PS2ready
switch-8a817e [standalone: master]# show
[Watts] [Volts][Amp][Watts] Total power used : 78.75 Watts
Total power capacity : 920.00 Watts
Total power available : 841.25 Watts
Maximum consumed power of all turned on modules: 427.00 Watts
switch-8a817e [standalone: master]# show MeterRegExpectedActualStatusHighLow
1.35V1.351.32OK1.551.15
5.754.25
