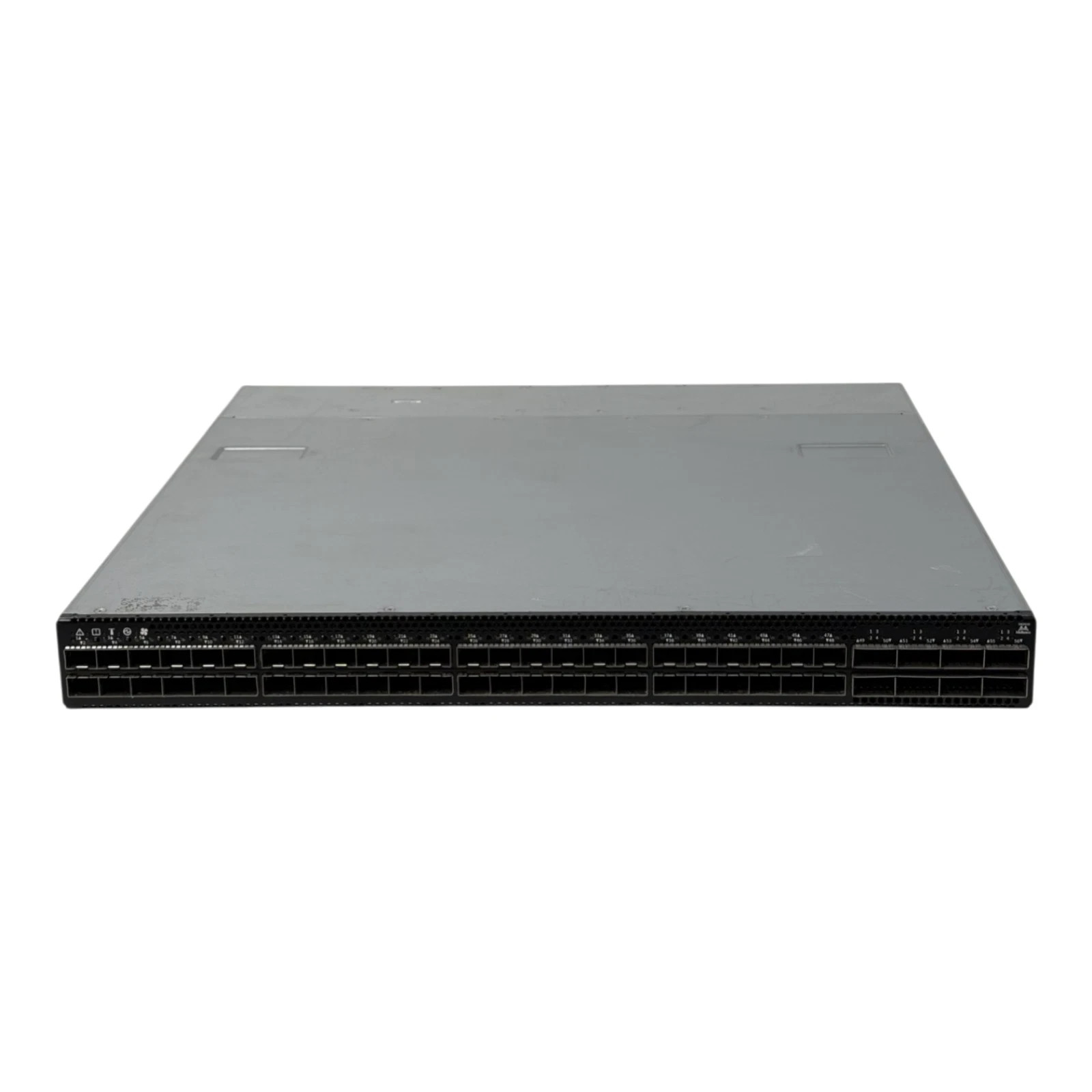

2 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship Mellanox SN2410 48x 10G SFP28 8x 100G QSFP28 Short Ethernet Switch MSN2410-BB2F What's Included 1 xMellanox SN2410 48x 10G SFP28 8x 100G QSFP28 Short Ethernet Switch MSN2410-BB2F - Refurbished
Specification Delivery Returns
- Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP
- Compliant Standards: VCCI, FCC, RoHS, ICES, cTUVus, RCM, CU
- Device Type: Switch - 56 ports - L3 - Managed
- Enclosure Type: P2C Back to Front airflow rack-mountable 1U
- Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, event log, Access
- Humidity Range Operating: 10 - 85% (non-condensing)
- Humidity Range Storage: 10 - 90% (non-condensing)
- Interfaces: 48 x 10Gbit LAN SFP ¦ 2 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 8 x 40Gbit LAN QSFP28 ¦ 1 x USB
- Jumbo Frame Support: 9216 bytes
- Max Operating Temperature: 45 °C
- Max Storage Temperature: 70 °C
- Max Supported Qty: 2
- Min Operating Temperature: 0 °C
- Min Storage Temperature: -40 °C
- Performance: Switching capacity: 4 Tbps ¦ Latency: 300 µs
- Ports: 48 x 10 Gigabit SFP28 + 8 x 40 Gigabit QSFP28
- Power Device: Internal power supply - hot-plug
- Power Redundancy: Yes
- Power Redundancy Scheme: 1+1
- Processor: 1 x Intel Celeron: 1.4 GHz
- RAM: 8 GB
- Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, SSH-2, CLI
- Routing Protocol: BGP-4, VRRP, OSPFv2, static IPv4 routing, static IPv6 routing
Bootlog:switch-96d83c [standalone: master] # show version
Product name: Onyx
Product release: 3.10.4504
Build ID: #1-dev
Build date: 2024-07-25 08:02:01
Target arch: x86_64
Target hw: x86_64
Built by: sw-r2d2-bot@93c65e296280
Version summary: X86_64 3.10.4504 2024-07-25 08:02:01 x86_64Product model: x86onie
Host ID: 0C42A196D83C
System serial num: MT2024K01352
System UUID: 2m 8.270s
CPU load averages: 1.91 / 0.80 / 0.30
Number of CPUs: 2
System memory: 3351 MB used / 4437 MB free / 7788 MB total
Swap: 0 MB used / 0 MB free / 0 MB totalswitch-96d83c [standalone: master] # show Part Number Serial Number Asic Rev. HW MSN2410-BB2F MT2024K01352 N/A BAMGMT MSN2410-BB2F MT2024K01352 1 BAFAN1 MTEF-FANF-A MT2022K17055 N/A A6FAN2 MTEF-FANF-A MT2022K17050 N/A A6FAN3 MTEF-FANF-A MT2017K33346 N/A A6FAN4 MTEF-FANF-A MT2022K17051 N/A A6PS1 MTEF-PSF-AC-A MT2022K18002 N/A A4PS2 MTEF-PSF-AC-A MT2022K18001 N/A A4
switch-96d83c [standalone: master] # show licenseNo licenses have been configured.switch-96d83c [standalone: master] # show Device Fan Speed FAN F1 10445.00 OK
FAN1 FAN F2 8880.00 OK
FAN2 FAN F1 10445.00 OK
FAN2 FAN F2 8823.00 OK
FAN3 FAN F1 10526.00 OK
FAN3 FAN F2 8880.00 OK
FAN4 FAN F1 10445.00 OK
FAN4 FAN F2 8998.00 OK
PS1 FAN F1 10336.00 OK
PS2 FAN F1 10320.00 OKswitch-96d83c [standalone: master] # show Device Sensor Power Voltage Current Capacity Feed Status[Watts] [Volts] [Amp] power-mon input 37.98 233.00 0.16 460.00 AC OK
PS2 power-mon input 44.97 233.00 0.19 460.00 AC OK
Total power used : 82.95 Watts
Total power capacity : 920.00 Watts
Total power available : 837.05 Watts
Maximum consumed power of all turned on modules: 427.00 Wattsswitch-96d83c [standalone: master] # show Component Reg CurTemp SPC T1 24.00 OK
MGMT Board AMB temp T1 18.00 OK
MGMT Ports AMB temp T1 18.00 OK
MGMT CPU package Sensor T1 21.00 OK
MGMT CPU Core Sensor T1 19.00 OK
MGMT CPU Core Sensor T2 15.00 OK
PS1 power-mon T1 16.00 OK
PS2 power-mon T1 16.50 OK
