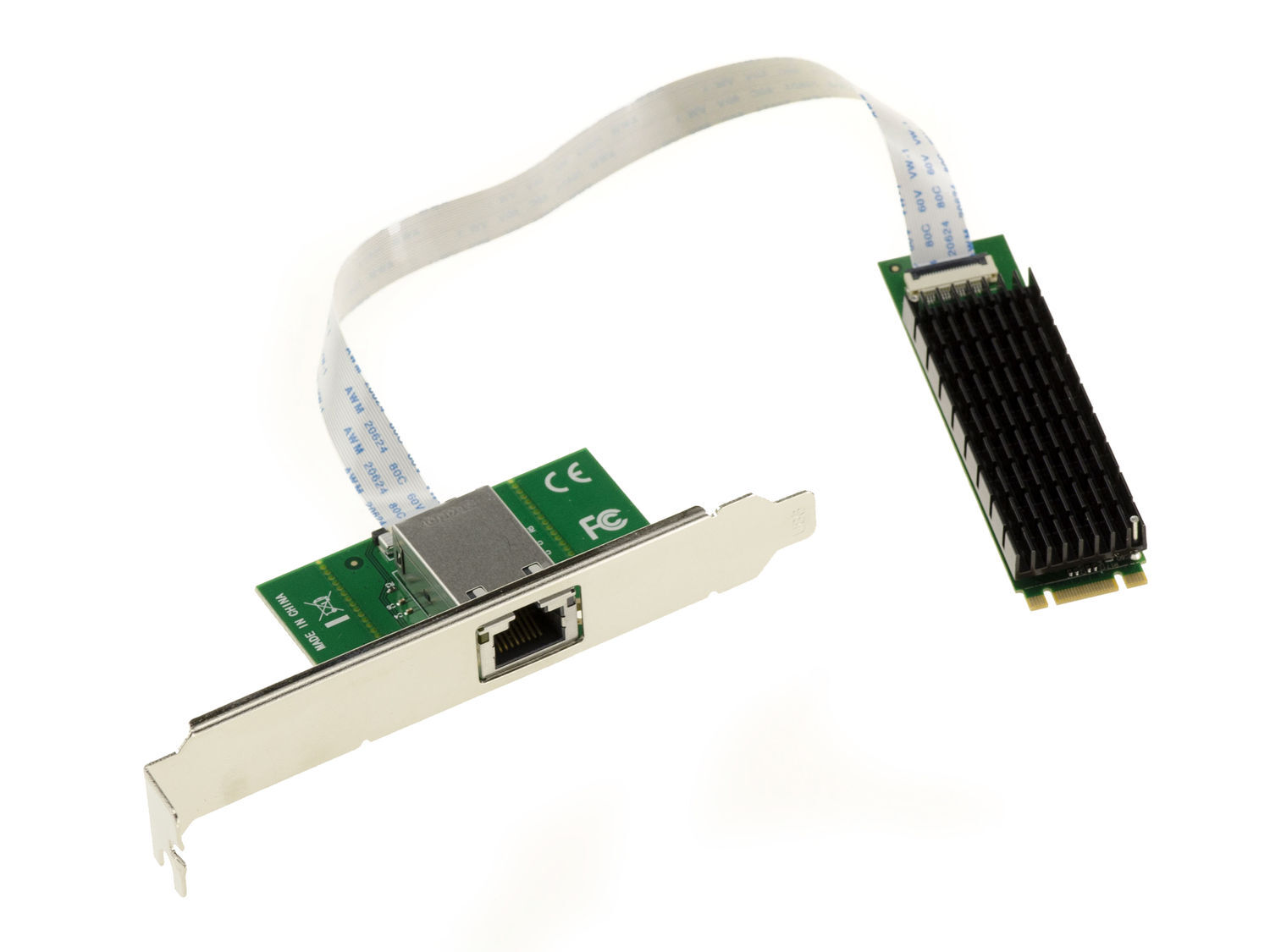

Mounts on the M.2 port of laptop PCs (M or B+M), PCIe type (will not be suitable for M2 SATA type ports).
Compatibility:
Windows 7/8/8.1/10/11, Server Stable Kernel version 2.6.32/3.x/4.x and above, Linux CentOS/RHEL 6.5 / 7.x and above, Ubuntu 14.x/15.x/16.x and above, VMware ESX/ESXi 4.x/5.x/6.x and above
M2 card in 2280 format, suitable for slots 2280 and 22110.
Specifications:
CHIPSET: AQUANTIA AQC107
PCI Express type x4, Gen 2.0.
Daughter card and 10G port connection via flexible FPC cable, length 20cm.
Jumbo frame support up to 16 KB.
Power consumption 4.7 W.
Support 10G/5G/2.5G/1000M/100M LAN speeds.
Complies with EN61000-4-2 (ESD) Air-15 kV, Contact-10 kV.
IEEE 802.3an 10 Gbps Ethernet over unshielded twisted pair.
IEEE 802.3bz 2.5/5GBASE-T.
IEEE 802.3ab 1000BASE-T Gigabit Ethernet.
Fast Ethernet IEEE 802.3u 100BASE-TX VLAN.
IEEE 802.1Q.
IEEE 802.3x Full Duplex and flow control.
IEEE 802.3az - Energy Efficient Ethernet (EEE).
Jumbo frame, DPDK, PXE support.
Mounts on the M.2 port of laptop PCs (M or B+M), PCIe type (will not be suitable for M2 SATA type ports). Windows 7/8/8.1/10/11, Server 2008R2/2012R2/2016R2/2019R2/2022. Linux Stable Kernel version 2.6.32/3.x/4.x and above, Linux CentOS/RHEL 6.5 / 7.x and above, Ubuntu 14.x/15.x/16.x and above, VMware ESX/ESXi 4.x/5.x/6.x and above M2 card in 2280 format, suitable for slots 2280 and 22110. Daughter card and 10G port connection via flexible FPC cable, length 20cm. Support 10G/5G/2.5G/1000M/100M LAN speeds. Complies with EN61000-4-2 (ESD) Air-15 kV, Contact-10 kV. IEEE 802.3an 10 Gbps Ethernet over unshielded twisted pair. IEEE 802.3ab 1000BASE-T Gigabit Ethernet. Fast Ethernet IEEE 802.3u 100BASE-TX VLAN. IEEE 802.3x Full Duplex and flow control. IEEE 802.3az - Energy Efficient Eth Recommended products Provided by M2 PCIe M Key Network Card 2.5 DUAL Gigabit RJ45 LAN ETHERNET 10 100 1000 1G 2.5 View product KALEA-INFORMATIQUE M2 E A Key Single Port RJ45 Gigabit Lan Ethernet Realtek 8111 View product MiniPCIE Network Card 2x RJ45 Dual LAN 2.5 GIGABIT ETHERNET Intel I226 SRKTV View product M2 M.2 NGFF E A Key 2.5 Gigabit RJ45 LAN Ethernet - Realtek RTL8125 View product Mini PCIe Dual Port Gigabit Ethernet RJ45 LAN Card Intel I350 View product M2 M.2 NGFF B Key Gigabit LAN Ethernet 10 100 1000Mbps - INTEL I210 View product M2 Card 1 Port Fiber Network SFP+ 10G 10 GIGABIT ETHERNET Intel 82599EN View product M2 Gigabit LAN Ethernet 10 100 1000 1G 2.5G 5G RTL8126 View product Related keywords pcie wifi card pcie sfp to rj45 10g network card 10gbe 10g nic 10gbe nic pcie card ethernet card pci network card 10g network card pcie network card pcie m.2 10 gigabit network card pci ethernet card 10gb pcie network card 10gbe pcie network interface card 10g pcie m.2 pcie card 10gb network card rj45 network card pcie 10gbe network card pcie cards expresscard to pcie 10g pcie card 10gbe card ethernet pcie card gigabit ethernet card pcie ethernet card Provided by
