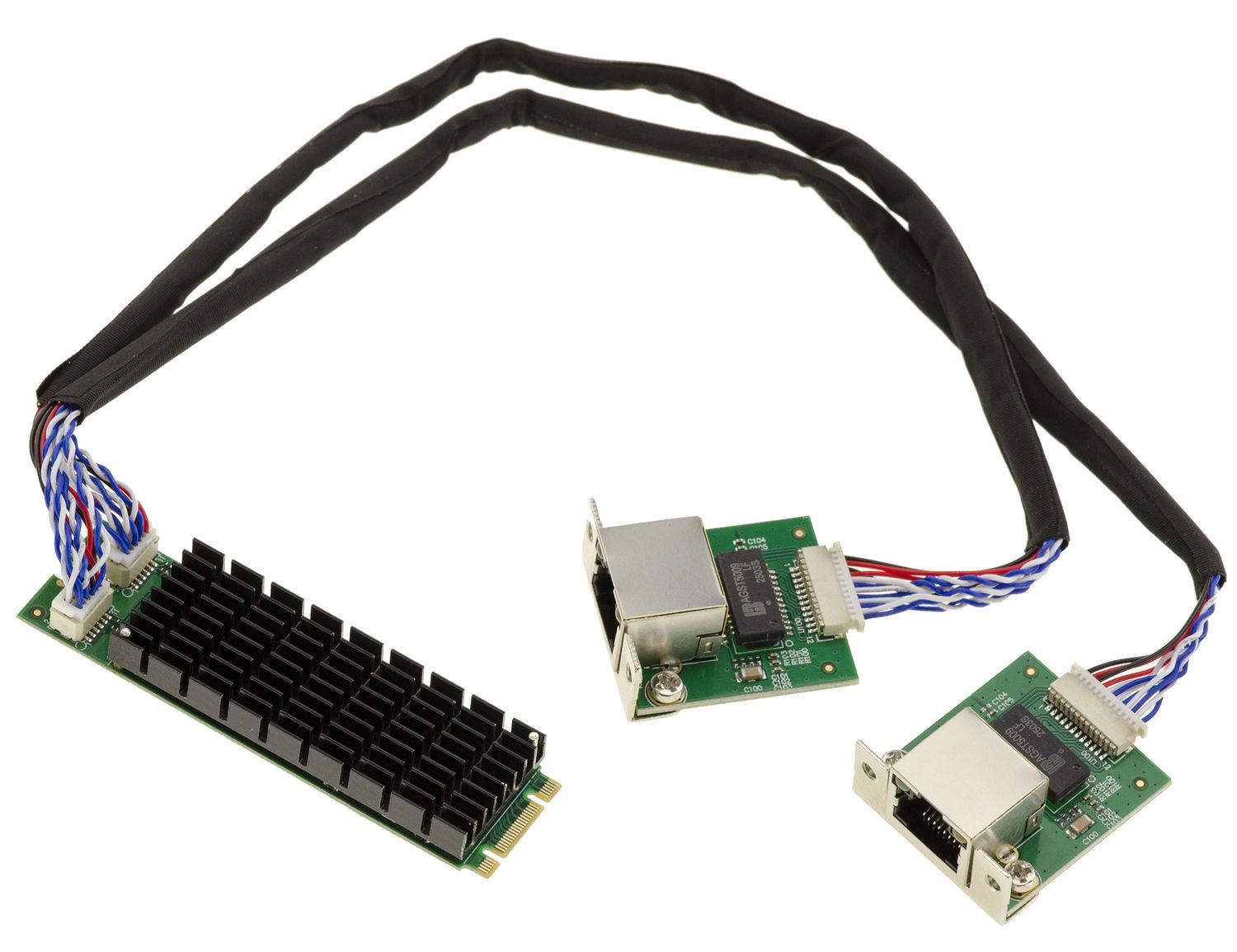

M2 PCIe M Key Network Card 2.5 DUAL Gigabit RJ45 LAN ETHERNET 10 100 1000 1G 2.5
Price: FR $129.28

Mounts on an M2 M or B+M Key PCIe type ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC.

Features :
Dual Intel I226 Chipset.
Complies with PCI Express Revision 3.1 (5GT/s) specification.
Card in M2 M key 2280 format.
IEEE802.3 standard MDI (copper) Ethernet interface up to 2.5 Gb/s.
Two RJ45 ports connected by cord to the M2 card.
MDI compliant IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3).
Flow control support compliant with IEEE802.3x and IEEE802.3z standards with software-controllable RX thresholds and TX pause frames.
Automatic crossing detection function (MDI/MDI-X).
IEEE 1588 protocol and 802.1AS implementation.
Support for time-sensitive networking (TSN) capabilities.
Support for IEEE802.3az-Energy Efficient Ethernet (EEE).
Full Wake-On-Lan support.
TCP/UDP, IPv4 checksum offloads (Rx/Tx).
Transmission Segmentation Offload (TSO) (IPv4, IPv6).
Support for packages up to 9.5 KB Jumbo Frames.

Windows ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC. Complies with PCI Express Revision 3.1 (5GT/s) specification. IEEE802.3 standard MDI (copper) Ethernet interface up to 2.5 Gb/s. Two RJ45 ports connected by cord to the M2 card. MDI compliant IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3). Flow control support compliant with IEEE802.3x and IEEE802.3z standards with software-controllable RX thresholds and TX pause frames. Automatic crossing detection function (MDI/MDI-X). Support for time-sensitive networking (TSN) capabilities. Support for IEEE802.3az-Energy Efficient Ethernet (EEE). Transmission Segmentation Offload Recommended products Provided by KALEA-INFORMATIQUE M.2 NGFF PCIe M or B+M Key 5 Port SATA 3.0 6Gbps JMB585 View product KALEA-INFORMATIQUE PCIe 5.0 x16 to M.2 NVMe M-Key SSD Adapter Card With Cooling View product KALEA-INFORMATIQUE 2D VGA DB15 Graphics Card M2 M-Key Aspeed AST2400 1920x1080 View product M2 E A Key MiniPCIe Adapter With Antennas For M.2 2230 WiFi Bluetooth Card View product M.2 Riser Extension Cable Adapter M.2 M Key to M.2 E A Key 20cm View product Pcie 1 Ports COM Serial Rs232 with DB9 Plugs Oxford Oxpcie952 Chipset View product PCIe 4.0 Type Switch Card 10x SFF-8654 8i for 5 Graphics Cards View product KALEA-INFORMATIQUE PCIe 4.0 Switch Card 4x SFF-8654 8i For 2 Graphics Cards View product
