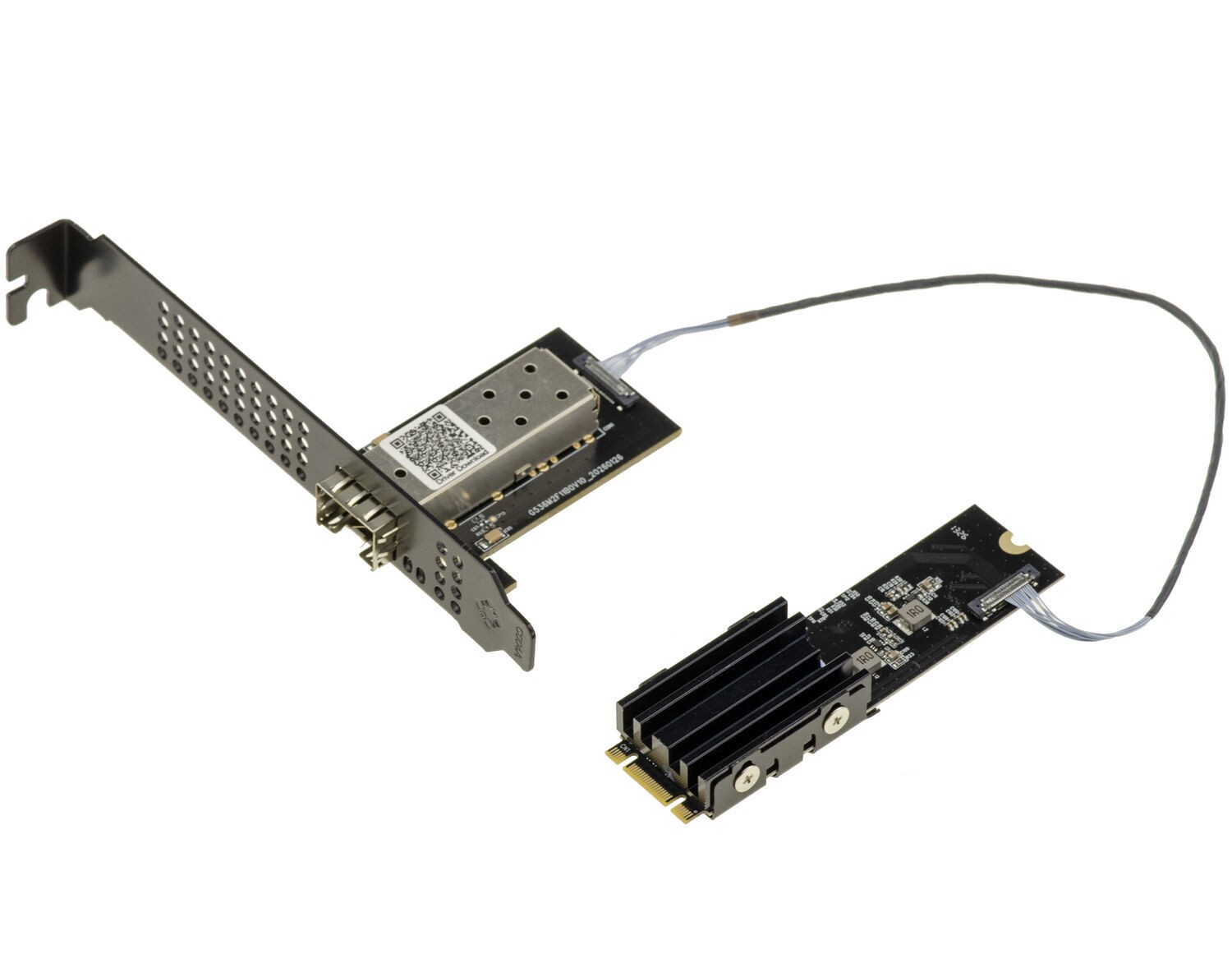

This card allows you to add a 10Gbps SFP+ fiber Ethernet interface to a system equipped with a PCIe compatible M.2 slot.
Based on the Realtek RTL8127ATF controller with low power consumption, this card is particularly suitable for compact systems where heat dissipation is a Express compatible M.2 B+M Key host interface.
PCIe connection type PCI Express 3.0 x2.
PCIe throughput per lane up to 8.0 GT/s.
Support Windows 10, Windows 11, Linux 2.4.x and later.
Technical description:
Realtek RTL8127ATF chipset.
M.2 B+M Key host interface type PCIe 3.0 x2.
1 network port with SFP+ connector.
Ethernet speeds supported 1Gbps / 10Gbps (1000BASE-X / 10GBASE-R protocols).
Supported standards IEEE 802.3, IEEE 802.3z, IEEE 802.3ae and IEEE 802.3x.
Auto-negotiation supported, Full Duplex mode at all speeds supported.
IEEE 802.3x flow control.
Jumbo Frames up to 16KB.
Support Wake-on-LAN, PXE and EFI network boot.
VLAN compliant IEEE 802.1Q, Q-in-Q IEEE 802.1ad.
Hardware checksum offload and segmentation offload.
Maximum power consumption 1.79W in 10GBASE-R mode.
Supplied with 3 brackets (low profile, high profile, compact).
This card allows you to add a 10Gbps SFP+ fiber Ethernet interface to a system equipped with a PCIe compatible M.2 slot. Based on the Realtek RTL8127ATF controller with low power consumption, this card is particularly suitable for compact systems where heat dissipation is a constraint. PCI Express compatible M.2 B+M Key host interface. Support Windows 10, Windows 11, Linux 2.4.x and later. Ethernet speeds supported 1Gbps / 10Gbps (1000BASE-X / 10GBASE-R protocols). Supported standards IEEE 802.3, IEEE 802.3z, IEEE 802.3ae and IEEE 802.3x. Auto-negotiation supported, Full Duplex mode at all speeds supported. VLAN compliant IEEE 802.1Q, Q-in-Q IEEE 802.1ad. Hardware checksum offload and segmentation offload. Maximum power consumption 1.79W in 10GBASE-R mode. Supplied with 3 brackets (low pr
