Product features:
The frequency converter interface (AVI +, AVI-) disconnected from the computer and the main control circuit, strong anti-jamming capability
for different versions of MACH3 software, for the latest version.
for Windows XP, WIN7, WIN8, WIN10, for 64-bit systems, for laptops, for .
The external wide voltage input, 12-24V and anti-reverse function.
All input isolated by the light lotus can be accessed by stop, , limit, back to zero, etc. to ensure computer .
All the way through the optocoupler isolated 0-10v analog voltage output, you can control the input voltage of 0-10v analog voltage converter to control the spindle speed
To supply PWM output (5V level), can be controlled by the PWM spindle control.
Provide 4 output port (5V level), can be connected with the relay module optocoupler, water control, spray and so on.
Can be accessed by a total of Yang or common cathode, the input level of 5v, with optocoupler input stepper motor driver.
Providing an electronic hand wheel interface.
Specifications:

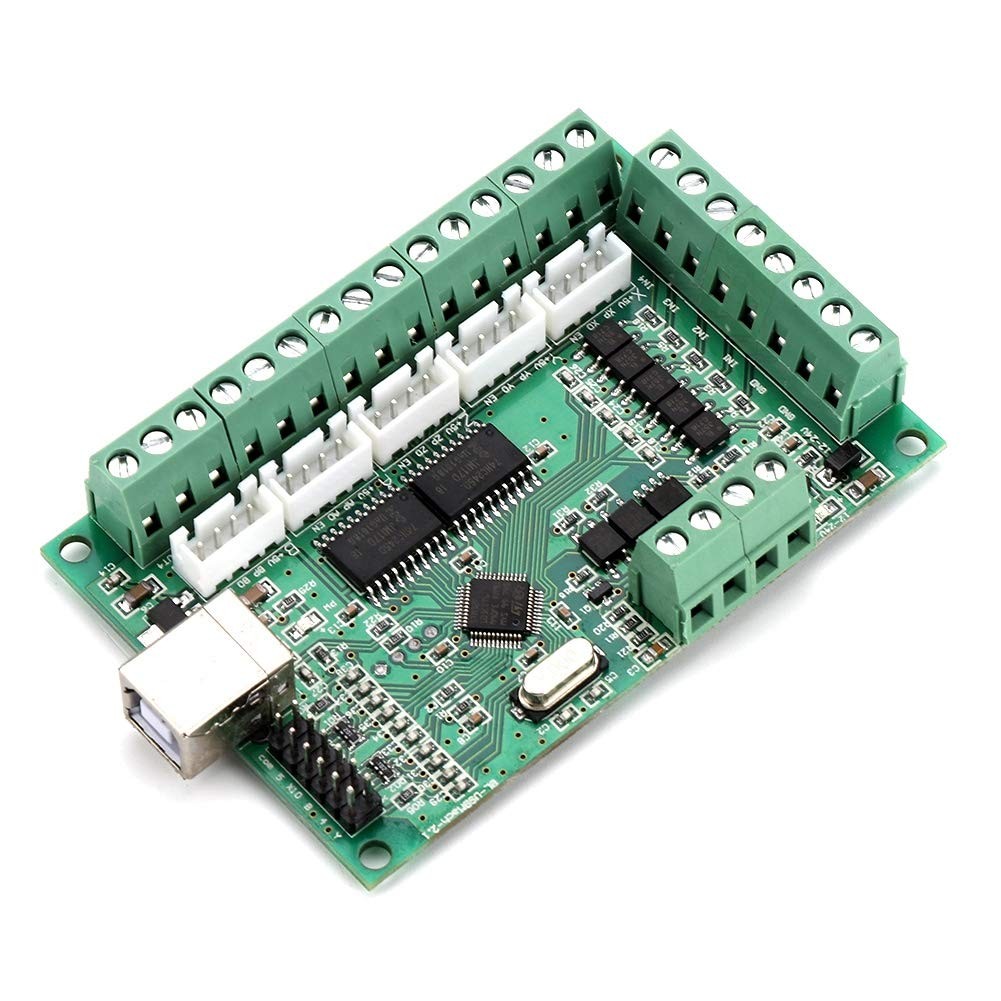

: USB interface panel
: for MACH3 software
Size: 9.8 x 6 inches / 3.96 x 2.36 inches
Weight: 145g
Package contents:
1 x interface card
1 x USB cable
Note:
Please for the software and drivers required for the product[USB INTERFACE BOARD] --- The frequency converter interface (AVI+, AVI-) isolated from the computer and the main control circuit, Strong anti-interference ability. To provide PWM output (5V level), can be controlled by the PWM spindle control. Provide 4 output port (5V level), can be connected with the relay module optocoupler, water control, spray and so on.
[5V LEVEL] --- Can be accessed by a total of yang or common cathode, the input level of 5V, with optocoupler input stepper motor driver. To provide electronic hand wheel interface.
[COMPATIBILITY] --- various versions of software, for the latest version. for Windows XP, WIN7, WIN8, WIN10, for 64-bit systems, for laptops, for .
[] --- The external wide voltage input, 12-24V, and anti-reverse function. All the input isolation by the light lotus, can be accessed by stop, the , limit, back to zero, etc., to ensure computer .
[0-10V ANALOG VOLTAGE ] --- All the way through the optocoupler isolated 0-10V analog voltage output, you can control the input voltage from 0-10V analog voltage converter to control the spindle speed.
