Overview:

This is a screen module with onboard dual-core 32-bit 240 MHz ESP32 microcontroller.
Just connect the board to your computer (installed IDE and driver) with the USB cable to program it.

We provide free technical support to help you with any questions and problems.

Tutorial and Code:

Can be downloaded (in English) or viewed online (original in English, can be translated into other languages by browsers).
Including several typical projects for ESP32 and LVGL GUI library.

The tutorial link can be found on the product box. (No paper tutorial.)

Contents of Tutorial:

Preface
Chapter 1 Serial
Chapter 2 RGB
Chapter 3 Button
Chapter 4 Button Interrupt
Chapter 5 Voltage
Chapter 6 Memory Card
Chapter 7 Music
Chapter 8 Bluetooth Low Energy
Chapter 9 WiFi Web Server
Chapter 10 TFT Display
Chapter 11 TFT Touch Calibration
Chapter 12 TFT Touch Drawing
Chapter 13 LVGL
Chapter 14 LVGL Picture
Chapter 15 LVGL Timer
Chapter 16 LVGL RGB
Chapter 17 LVGL Music
Chapter 18 LVGL Multifunctionality
Chapter 19 LVGL Demo
What's Next?

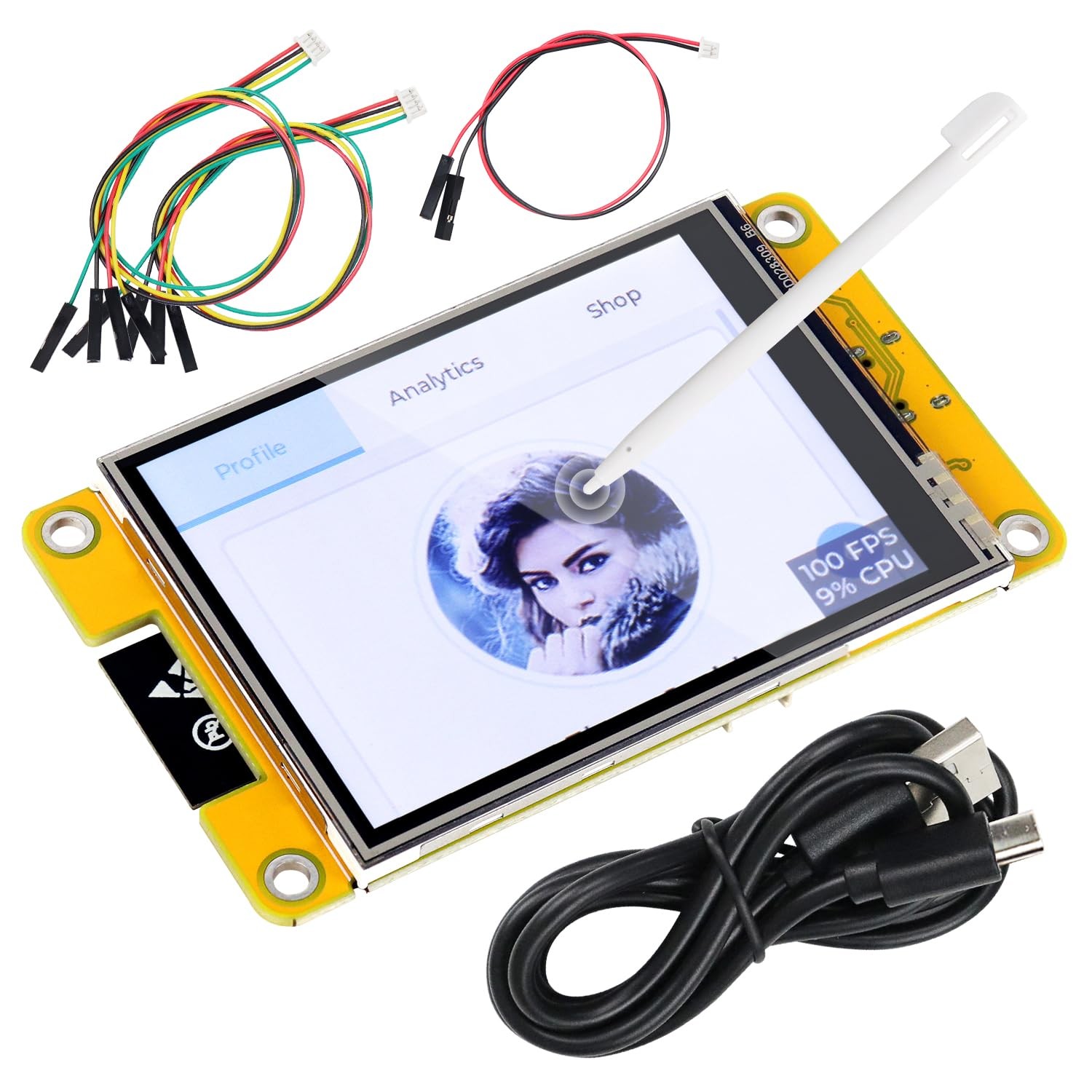

Package Includes:

1 x Screen module
1 x Stylus
1 x USB A to C cable
2 x Connecting cable (4P)
1 x Connecting cable (2P)ESP32 controller: Dual-core 32-bit microprocessor up to 240 MHz, 4 MB flash, 520 KB SRAM, 448 KB ROM, onboard 2.4 GHz Wi-Fi and Bluetooth 4.2 (LE), with USB-C code uploader
Touch screen: 2.8 inch, 240x320 pixel, TN type TFT, 4-wire SPI communication, single-point resistive touch screen (Note: Fingers may not be well recognized on the resistive touch screen, please use the stylus provided or your nails)
Ports and devices: Memory card slot, USB-C port, serial port, SPI port, input pin port, speaker port, battery port, RGB LED, BOOT key, RESET key
Tutorial and code: Example projects for ESP32 and LVGL GUI library (The tutorial link can be found on the product box, no paper tutorial)
Easy to use: Just connect the board to your computer (installed IDE and driver) with the USB cable to program it
