Product Description Waveshare ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480
ESP32-S3 2.16inch AMOLED Display Development Board
480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi‑Fi And BLE 5
Embedded with CO5300 Display Driver and CST9220 Capacitive Touch Chip
Version Options
- ESP32-S3-Touch-AMOLED-2.16-EN – Standard version, without Lithium Battery
- ESP32-S3-Touch-AMOLED-2.16 – Comes with a 3.7 V Lithium Battery (installable inside the case)
Amoled Parameters
- Display Size: 2.16inch
- Resolution: 480 × 480 pixels
- Color: 16.7M
- Brightness: 600 cd/㎡
- Contrast Ratio: 100000:1
- Communication Interface: QSPI
- Driver IC: CO5300
- Touch Type: Capacitive touch
- Touch IC: CST9220
Features
- High‑performance ESP32‑S3R8 Xtensa 32‑bit LX7 dual‑core processor, up to 240 MHz main frequency.
- Supports 2.4 GHz Wi‑Fi (802.11b/g/n) and Bluetooth5(LE), with onboard antenna.
- Built‑in 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, external 16 MB flash.
- Type‑C port for improved device compatibility.
- 2.16 inch AMOLED capacitive touch display (480 × 480 resolution).
- Dual microphones array with noise reduction and echo cancellation circuit for accurate speech recognition.
- Onboard QMI8658 6‑axis IMU (3‑axis accelerometer & 3‑axis gyroscope) for motion gesture detection and step counting.
- Programmable PWR and BOOT buttons for custom function development.
- Built‑in MX1.25V Lithium Battery recharge/discharge header.
- AXP2101 power management IC – supports multiple voltage outputs, battery charging, management, and life optimization.
Small Size, Touch More Possibilities
- Suitable for various smart device development with human‑machine interaction capabilities.
- Supports independent operation when connected to a battery.
- Amoled screen offers high contrast, wide viewing angle (178°), rich colors, fast response, thin design, and low power consumption.
Function Overview
- Compatible with ESP‑IDF and Arduino IDE.
- Comprehensive tutorials for easy learning and rapid application deployment.
Wi‑Fi And BLE5 Support
- ESP32‑S3 integrates 2.4 GHz Wi‑Fi (802.11b/g/n) with 40 MHz bandwidth support.
- Bluetooth Low Energy subsystem supports Bluetooth5(LE) and Bluetooth Mesh.
What's On Board
- ESP32‑S3R8 SoC – up to 240 MHz, built‑in 8 MB PSRAM.
- 16 MB NOR Flash.
- AXP2101 power management chip.
- Onboard antenna and Type‑C port.
- ESP32‑S3 USB port for programming and log printing.
- MX1.25V Lithium Battery header (2‑PIN connector).
- IPEX 1 antenna connector (requires resoldering of onboard resistor).
- TF card slot.
- Dual microphones with echo cancellation circuit.
- GPIO 18 button, PWR button, BOOT button for custom functions and debugging.
- QMI8658 6‑axis IMU.
- 2.16 inch display panel connector.

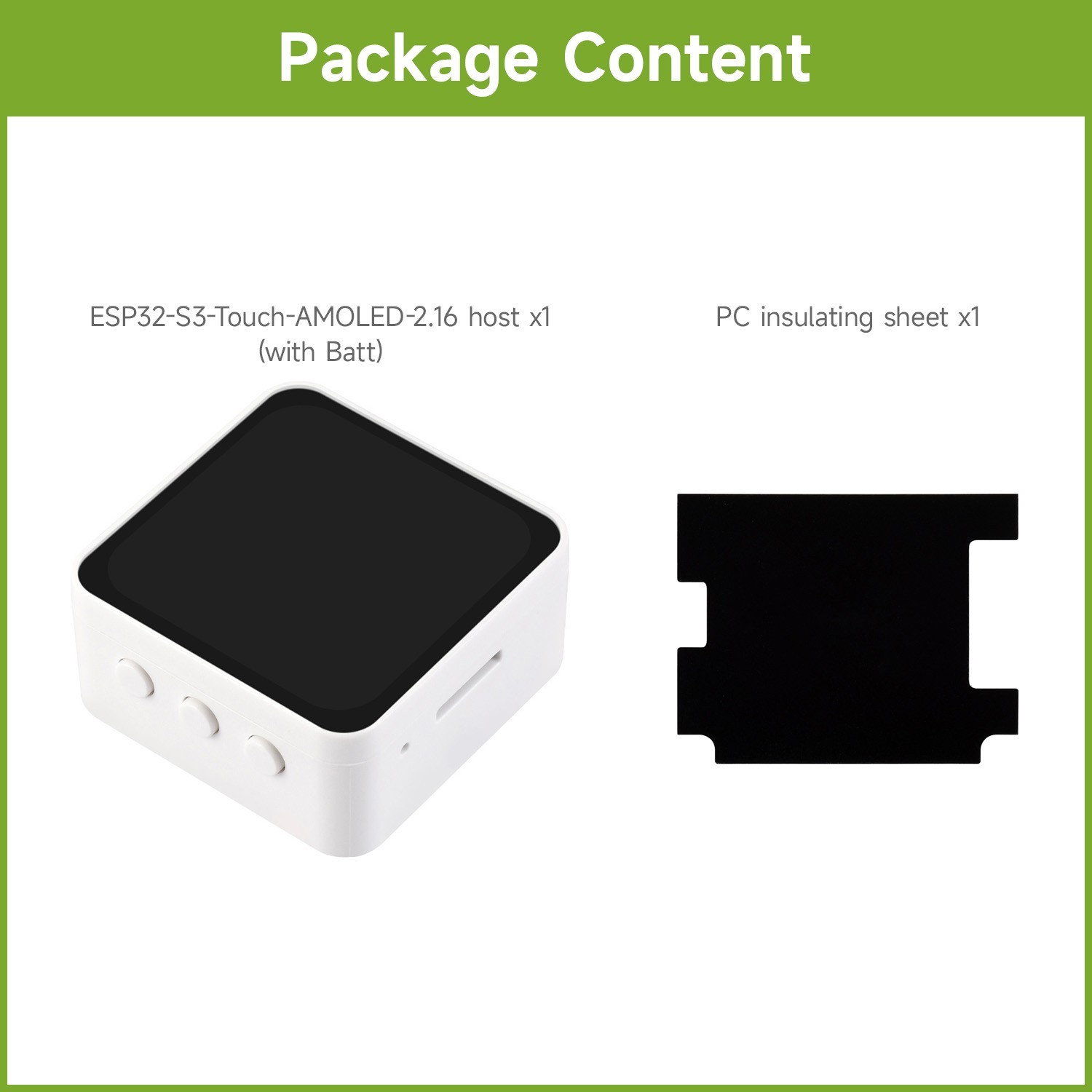

Package Content
- ESP32-S3-Touch-AMOLED-2.16 hostx1
- OPTIONAL 3.7V 1000 mAh Lithium Batteryx1
- PC insulating sheetx1
Weight
* The 3.7V Lithium Battery is optional.
