Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for you.

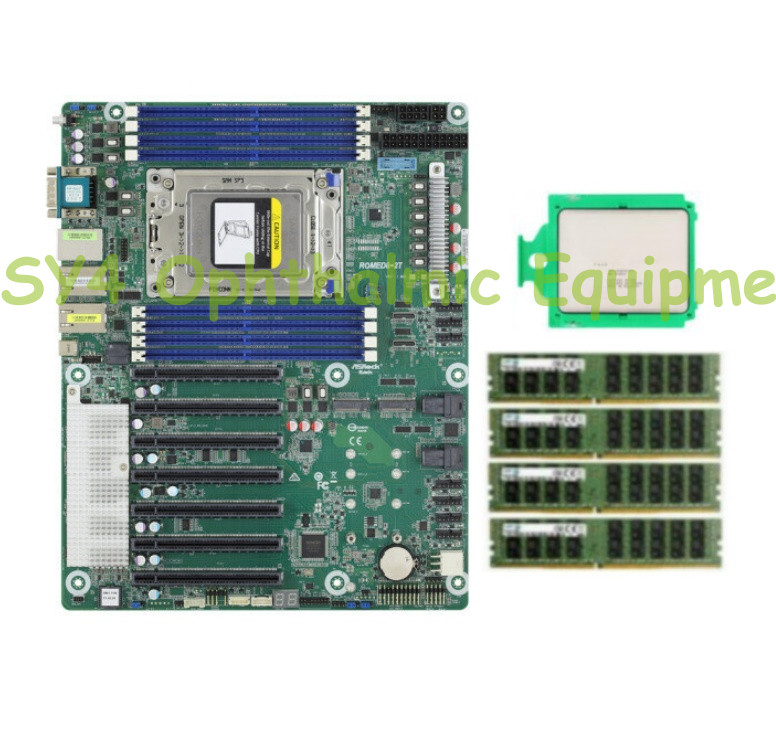

Replace the ASUS ROMED8-2T motherboard With AMD EPYC 7542 CPU, 4x 32GB 2666MHz DDR4 RAM

Package include

1X ROMED8-2T Motherboard

1x EPYC 7542 32 CORES,64 threads 2.9ghz 128mb

4X 32GB DDR4 ECC 2666MHZ RAM

Physical informationModelATXsize12'' x 9.6'' (305 mm x 244 mm)Processor systemCPUSupports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors

*A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ TechnologyslotSingle Socket SP3 (LGA4094)ChipsetSystem on ChipSystem memorycapacity8 DIMM slots (1DPC)typeSupports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
The DIMM sizes supported by each DIMMRDIMM: up to 64GB
LRDIMM: up to 128GB
RDIMM/LRDIMM-3DS: up to 256GB
NVDIMM-N: up to 32GBMax. DIMM FrequencyRDIMM/ LRDIMM/NVDIMM-N: max. 3200MHz
voltage1.2VExpansion slotsPCIe x 16SLOT7: PCIe4.0 x16
SLOT6: PCIe4.0 x16
SLOT5: PCIe4.0 x16
SLOT4: PCIe4.0 x16
SLOT3: PCIe4.0 x16
SLOT2: PCIe4.0 x16 or PCIe4.0 x8 + 1 M.2+1 miniSASHD or no PCIe SLOT +2 OCuLink+1 M.2+1 miniSAS HD (by jumper)
SLOT1: PCIe4.0 x16storageSATA controllerAMD Epic 7003/7002 (10 SATA 6GB/s):
2 Mini-SaaS Head, 2 St.2OCuLink for U.22 OCuLink*(PCIe4.0 x4)
*Shared with SLOT2 by jumperM.21 M-key*(PCIe4.0 x4 or SATA 6Gb/s), supports 2280/2260/2242/2230 form factor
1 M-key*(PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242/2230 form factor
*Share with SLOT2 by jumperEthernetAdditional GbE Controller1 Intel®X550-AT2: 2 RJ45 (10GbE)Management featuresBMC ControllerASPEED AST2500IPMI 独立 GLAN1 x Realtek RTL8211E for dedicated management GLANdisplaycontrollerASPEED AST2500MemoryDDR4 512MBRear panel I/O interfaceVGA interface1 DB15USB 3.0 interface2 Type-A (USB3.2 Gen1)USB 3.2 interface1 Type-C (USB3.2 Gen2)Network interfaces2 RJ45 (10GbE)
1 dedicated IPMISerial1 DB9UID Button/UID LED1Built-in interfacesPower connector1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V)Auxiliary panel connectors1 (includes chassis intrusion, location button & LED, and front LAN LED)TPM interface1 (17-pin, LPC), 1 (13-pin, SPI)Thermal sensing interface1IPMB interface1Fan connector7 (6-pin) [1CPU/4Front/2Rear]USB 3.2 (Gen1) connector1 (19-pin, 2 USB3.2 Gen1)USB 3.2 (Gen2) connector1 (Type-C, 1 USB3.2 Gen2)NMI Header1System Panel1 (rst, pwrbtn, hddled, pwrled)loudspeaker1 (4-pin)BMC_SMB Header1Clear CMOS1 (contact pads)On-board LEDStandby PWR LED 5vsb1 (5VSB)Port 80 LED1LED File Fan7BMC heartbeat LED1System BIOSBIOS type32MB AMI UEFI Legal BIOSBIOS featuresPlug and Play (PnP), ACPI 6.3 Compliance Wake Up Events, SMBIOS 3.3.0, ASRock Rack Instant FlashHardware monitoringtemperatureCPU, MB, Card side, TR1, X550 Temperature sensingfanFan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed ControlvoltageVsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSBThe operating system is supportedoperating systemMicrosoft®Windows:
Server 2016 (64 bit)
Server 2019 (64 bit)

Linux:
RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit)
CentOs 8.0 (64 bit) / 7.6 ( 64 bit)
SUSE SLES 15.1 (64 bit) / 12.4 (64 bit)
UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit)
CITRIX Hypervisor 8.1

Virtual:
VMWare®ESXi 6.5 u3 / 6.7 u3
vSphere 6.5 u3/ / 6.7 u3

*The SUSE Enterprise Linux Server 15.1 (64 bit) / 12.4 (64 bit) system only supports UEFI BOOT.
*Please refer to our website for the latest OS support list.Use environmenttemperatureOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°CHumidityNon operation humidity: 20% ~ 90% ( Non condensing)

We have all models included,

due to the price and stock varies a lot, if you need other models, you can contact us，

we will give you a quote, our product price is very low and you can order in large quantities.

We are looking forward to a perfect cooperation!

• About Us:
  If you need more information, or need more quantity, or have other questions. Please contact me in the message.
  More quantity more discount ------>>> Please contact us
  Transportation:
  We can ship by DHL, UPS, FEDEX, etc.
  We can choose the delivery channel according to the specific product you purchase! If you need to specify a Courier service, you can leave us a message on .
  International customers (buyers) are responsible for paying all customs fees, import duties, VAT and other charges applicable in their respective countries. If necessary, you will need to assist with customs clearance.
  response:
  Since auto parts products will involve compatibility, if you have any questions after receiving the product, please contact us first. We keep our promise to provide you with the best solution within 24 hours.
  We strive for 100% customer satisfaction, so your positive response is very important. Thank you very much!
