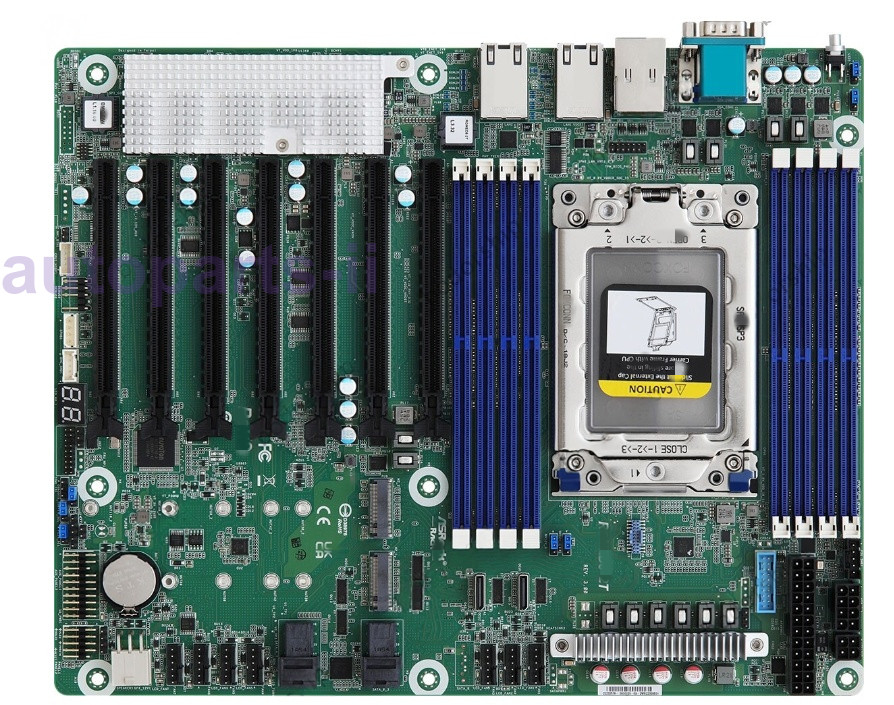

FOR ASRock ROMED8-2T Motherboard ATX SP3 LGA4094 DDR4 Support AMD EPYC StatusForm FactorATXDimensions12'' x 9.6'' (305 mm x 244 mm)Processor SystemCPUSupports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors
*A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ TechnologySocketSingle Socket SP3 (LGA4094)ChipsetSystem on ChipSystem MemorySupported DIMM Quantity8 DIMM slots (1DPC)Supported TypeSupports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
Max. Capacity per DIMMRDIMM: up to 64GB
LRDIMM: up to 128GB
RDIMM/LRDIMM-3DS: up to 256GB
NVDIMM-N: up to 32GBMax. DIMM FrequencyRDIMM/ LRDIMM/NVDIMM-N: max. 3200MHz
Voltage1.2VPCIe Expansion Slots (SLOT7 close to CPU)PCIe x 16SLOT7: PCIe4.0 x16
SLOT6: PCIe4.0 x16
SLOT5: PCIe4.0 x16
SLOT4: PCIe4.0 x16
SLOT3: PCIe4.0 x16
SLOT2: PCIe4.0 x16 or PCIe4.0 x8 + 1 M.2+1 miniSASHD or no PCIe SLOT +2 OCuLink+1 M.2+1 miniSAS HD (by jumper)
SLOT1: PCIe4.0 x16Other PCIe Expansion ConnectorsM.2 slot1 M-key*(PCIe4.0 x4 or SATA 6Gb/s), supports 2280/2260/2242/2230 form factor
1 M-key*(PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242/2230 form factor
*Share with SLOT2 by jumperOCuLink2 OCuLink*(PCIe4.0 x4)
*Shared with SLOT2 by jumperSATA/SAS StoragePCH Built-in StorageAMD EPYC 7003/7002 (10 SATA 6Gb/s):
2 Mini-SAS HD, 2 M.2EthernetAdditional GbE Controller1 Broadcom BCM57416: 2 RJ45 (10GbE)Server ManagementBMC ControllerASPEED AST2500IPMI Dedicated GLAN1 x Realtek RTL8211E for dedicated management GLANGraphicsControllerASPEED AST2500VRAMDDR4 512MBRear I/OUID Button/LED1VGA Port1 DB15Serial Port1 DB9USB 3.2 Gen1 Port2 Type-A (USB3.2 Gen1)RJ452 RJ45 (10GbE)
1 dedicated IPMIInternal Connector/HeadersPower Connector1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V)Auxiliary Panel Header1 (includes chassis intrusion, location button & LED, and front LAN LED)System Panel1 (rst, pwrbtn, hddled, pwrled)Speaker Header1 (4-pin)Fan Header7 (6-pin) [1CPU/4Front/2Rear]Thermal Sensor Header2TPM Header1 (17-pin, LPC), 1 (13-pin, SPI)SMBus header1PMBus header1IPMB Header1Clear CMOS1 (contact pads)USB 3.2 (Gen1) Header1 (19-pin, 2 USB3.2 Gen1)NMI Header1LED IndicatorsStandby PWR LED 5vsb1 (5VSB)80 Debug Port LED1Fan Fail LED7BMC heartbeat LED1System BIOSBIOS Type32MB AMI UEFI Legal BIOSBIOS FeaturesPlug and Play (PnP), ACPI 6.3 Compliance Wake Up Events, SMBIOS 3.3.0, ASRock Rack Instant FlashHardware MonitorTemperatureCPU, MB, Card side, TR1, TR2 Temperature sensingFanFan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed ControlVoltageVsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSBSupported OSOSMicrosoft®Windows:
- Server 2016 (64bit)
- Server 2019 (64bit)
- Server 2022 (64 bit)
Linux:
- RedHat Enterprise Linux Server Server 8.2 (64bit) / 7.9 (64bit)
- CentOs 8.5 ( 64 bit) / 8.2 ( 64 bit) / 7.9 ( 64 bit)
- SUSE SLES 15.4(64 bit) / 15.2(64 bit) / 12.5(64bit)
- UBuntu 22.04 (64 bit) / 20.04.4 (64 bit) /18.04.5 (64 bit) / 16.04.7 (64 bit)
Hypervisor::
- VMWare®ESXi/ 7.0 U3d / 7.0 U1 / 6.7 U3EnvironmentTemperatureOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°CHumidityNon operation humidity: 20% ~ 90% ( Non Us:
