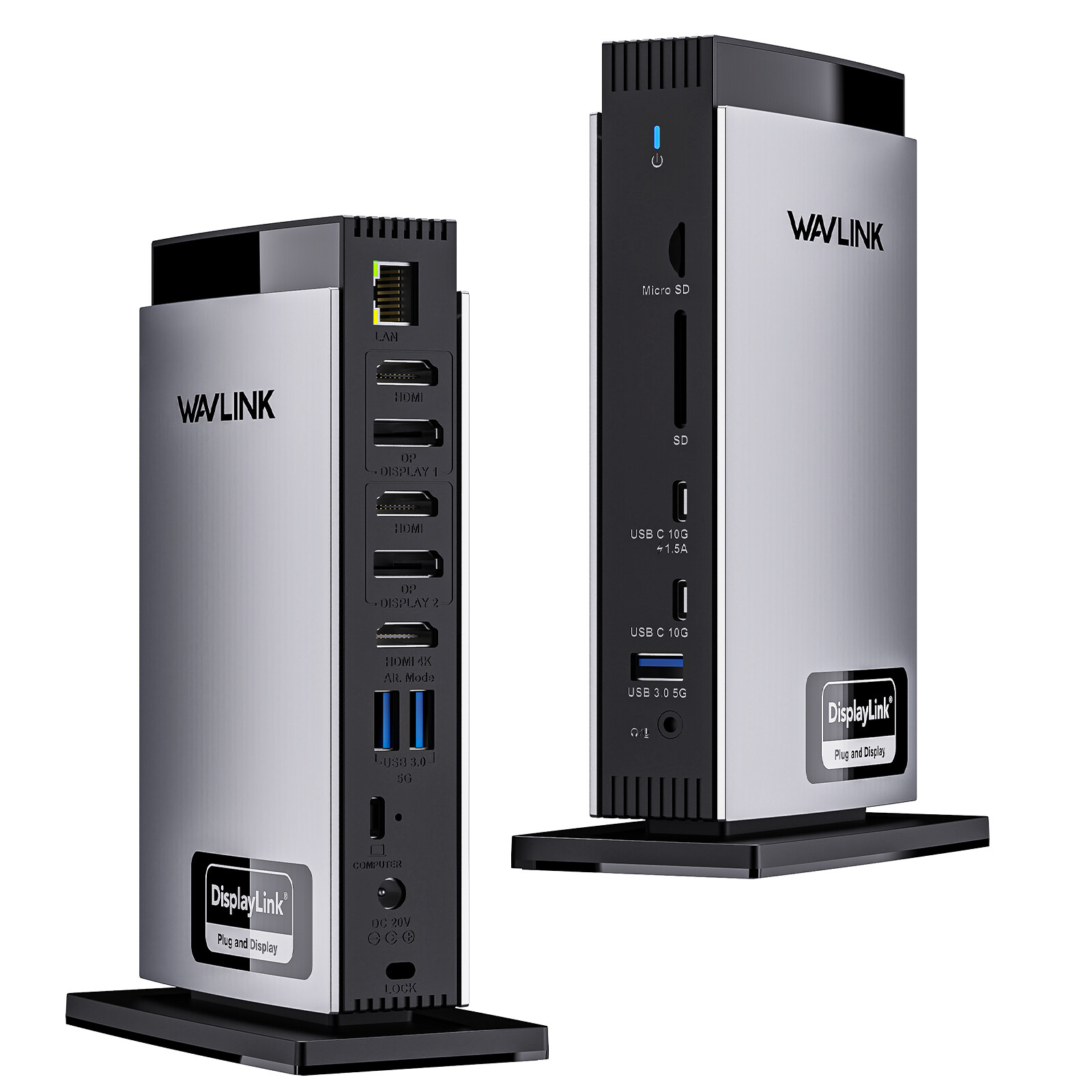

(DL6950 Dock), 3HDMI, 2DP, 100W PD, LAN, 3 USB-A, 2 USB-C
💼15 Ports Expand Your Options: All through a single USB C-C connection, the dock easily turns your
laptop's type-c port into 3 HDMI ports, 2 DisplayPort, a host USB-C port, 2 USB-C ports, 3 USB-A ports,
an RJ45 ethernet port, SD/TF card slots, and a 4-pole phone jack. A perfect solution for your home or office workstation.
🌟Attention: HDMI (Alt. Mode) requires your laptop's type-C port to support video output.
💻Boost Productivity with Multitasking: Connect triple 4K monitors with ease! Experience exceptional 4K@60Hz output
on the HDMI (Alt. Mode) port for tasks like video editing and gaming. The DisplayLink-6950 chipset enables
dual 4K@60Hz displays on the DISPLAY 1/2 (HDMI/DP) ports, perfect for expanding display options on M1/M2/M3 Macs.
Great for web browsing and productivity applications; not recommended for gaming-intensive use.
🔋Sufficient 100W Power Supply: Comes with a powerful 130W power adapter, the host USB-C charges your laptop with max.
100W to keep it running all day, as well as powering your connected peripherals while displaying or transferring data.
Worry-free about any low battery situation. *Please make sure that your host's type-C port supports power delivery.
🚀Super-Speed Transfer & Stable Network: Enjoy quick file transfers with 3 USB-A 5Gbps and 2 USB-C 10Gbps ports,
perfect for connecting external hard drives and USB devices. The SD/TF card slots offer fast transfer speeds of up to 104MB/s,
ideal for photographers, designers, and filmmakers to store their work effortlessly. Stay securely connected with
the gigabit RJ45 ethernet port, providing stable wired network performance.
🌐Wide Compatibility: Perfectforlaptopswitha full-functiontype-C portorthunderbolt3/4 port.
Support Windows 11/10/8.1/8/7/XP/Vista, Mac OS 10.14-14.x and latest, Chrome OS, Ubuntu, Android and Harmony OS.
Not compatible with Unix systems, Linux, iOS and iPad OS. *Does not support plug and play;
the installation of the latest DisplayLink driver is required.
[Perfect for MacBook Neo Multi-Monitor Setup] Fully optimized for the latest MacBook Neo. While the native system may
limit external displays, our DisplayLink-powered UG69PD13 Pro breaks the boundary, allowing you to extend triple 4K monitors seamlessly.
Multiple Display Resolution(Max. Resolution)
①Single Display:
Under DP1.2 Source: HDMI(Alt. Mode): 3840x2160@30Hz ; Display1/2(HDMI/DP): 3840x2160@60Hz;
Under DP1.4 Source: HDMI(Alt. Mode): 3840x2160@60Hz ; Display1/2(HDMI/DP): 3840x2160@60Hz.
②Dual Display:
a. HDMI(Alt. Mode)+ Display1/2(HDMI/DP):
Under DP1.2 Source: 3840x2160@30Hz+ 3840x2160@60Hz;
Under DP1.4 Source: 3840x2160@60Hz +3840x2160@60Hz.
b. DP1.2/1.4 Source: 3840x2160@60Hz+ 3840x2160@60Hz
③Triple Display:
HDMI(Alt. Mode) + Display1(HDMI/DP) + Display2(HDMI/DP):
Under DP1.2 Source: 3840x2160@30Hz+ DP1.4 Source: 3840x2160@60Hz+ the Full Potential of Your MacBook Neo
While the MacBook Neo natively supports only one external monitor—limiting your workspace and slowing down productivity—
the WAVLINK DisplayLink Docking Station changes the game.With WAVLINK, you can effortlessly connecttriple 4K monitors,
instantly expanding your screen real estate for a smoother, more efficient workflow.Beyond multi-display power,
the dock is equipped with a wide range of versatile ports—giving you more connectivity, more convenience,
and an all-around elevated experience.
Compatible Systems
-Windows 11/10/8.1/8/7/XP/Vista
-Mac OS 10.14-14.x and latest
-Android 5.0 or later with USB OTG cable
-Ubuntu 20.04, 22.04, 23.04, 24.04
-Chrome OS and Harmony OS
Specification
1.Model: WL-UG69PD13Pro
2.Ports: Front Panel: 1x TF Card Slot, 1x SD Card Slot, 2 x USB-C 10Gbps, 1 x USB-A 5Gbps, 1 x 4-Pole Phone Jack;
Rear Panel: 1x RJ45(10/100/1000Mbps), 1 x Display 1(HDMI/DP), 1 x Display 2(HDMI/DP),
1 x 4K HMDI(Alt. Mode), 2 x USB-A 5Gbps, 1x USB-C (Host, PD100W), 1x DC IN (20V/6.5A, 130W).
3.Unit Size: 12.2x6.6x18.5cm/4.8x2.6x7.3in (WxDxH)
4.USB-C to C Cable Length: 100cm/39.4in
Power Adapter Cable Length(plug end): 150cm/59in
Power Adapter Cable Length (round port end): 120cm/47in
5.Unit Weight: 570g/20.1oz
6.Housing Material: ABS Plastic
8.Power LED: Blue
Warm Tips
1. Do not support Linux, Unix, iOS and iPad OS.
2. Does not support plug and play; driver installation is required. Please visit the website 'displaylink' to download the latest driver.
3. Please confirm that the type-c port of your laptop supports charging and video output, or the docking station's host
charging function and HDMI (Alt. Mode) port may not work.
4. Android devices support mirror mode ONLY with the resolution up to 1080P.
5. Windows/Mac OS(12.x or above)-based devices support rotation and clamshell modes.
6. The DP and HDMI in the same video stream(Display 1/2) CANNOT be used simultaneously.
7. Does not support playback of HDCP copyright protected content from Blu-ray/Netflix/Prime/iTunes/Hulu, and other platforms.
8. The DISPLAY 1/2 ports are suitable for office work, handling spreadsheets, documents or browsing the web.
Not suitable for gaming or other high-intensity tasks.
9. For Mac users, it is necessary to grant permission to the DisplayLink Manager to record your screen.
In the Box
1 x USB-C 10G Triple 4K Display Universal Docking Station
1 x USB-C to USB-C Cable with E-mark
1 x DC 20V/6.5A 130W Power Adapter
1 x Cable Holder
1 x Screwdriver
1 x Quick Start Guide
Host Devices Compatibility List(Partial):
*Note:Supports almost all common computers, most notably M1/M2/M3-based MacBook.
If your device is not on the list, please let us know and we will be glad to help you check with it.
(TB4 Dock), 2HDMI, TB4 Downstream, 96W PD, 2.5G LAN, 4 USB-A
WAVLINK Thunderbolt 4 Triple 4K Display Docking Station, 13-IN-1 Unlocking Unparalleled Connectivity
Immerse yourself in captivating visuals and enjoy swift data transfers with this versatile hub. The station features TBT4
and HDMI 2.1 ports supporting max. a single 8K@60Hz or triple 4K@60Hz display setup. Experience high-speed data transfer
up to 10Gbps with integrated USB-C and USB-A ports. Seamlessly access networks and storage with the 2.5G Ethernet and
SD 4.0 card reader. Enhance your audio experience with the 3.5mm audio interface. This all-in-one solution is designed to
redefine connectivity and boost productivity, offering a comprehensive yet efficient tool for your daily needs.
Windows Unleashes 8K Brilliance: Dive into breathtaking 8K visuals on Windows with a single display setup.
*MacBook limits to 4K@60Hz in single display mode due to hardware constraints.
Blazing 40Gbps TBT4 Speeds: Harness the power of the Thunderbolt 4 interface for lightning-fast data transfers
at an impressive 40Gbps, ensuring seamless connectivity.
Single/Multi-4K Display: Enjoy crisp triple 4K@60Hz visuals in single or multiple display modes both on Windows and Mac OS,
enhancing your viewing experience.
Versatile Charging Options: Keep your devices juiced up efficiently with 96W host charging, 30W USB-C PD charging,
and 15W TBT4 charging, backed by our powerful 160W adapter.
High-Speed Connectivity: Utilize the 2 USB-A 10Gbps and one USB-C 10Gbps ports for lightning-fast file transfers,
enabling swift and efficient data transmission within seconds.
Photography Hub: Capture your moments and transfer them swiftly at up to 312 MB/s using the SD/TF card slots.
Seamlessly edit and store your memories for a lifetime.
Enhanced Networking: Experience high-speed wired networking with the 2.5G Ethernet port ensuring stable and fast connectivity.
Backwards compatible with 1000/100/10Mbps speeds.
Premium Audio Integration: Enjoy optimal audio experiences with a 3.5mm headphone jack, providing versatile audio
connectivity options for listening, speaking, or recording tasks.
Considerate Designs
🔒 Supports Kensington lock for securing devices and data.
⚫ ON/OFF power button for quick operation control.
🚫 Stay steady and stable with anti-slip pads for added grip.
💡 Power LED indicator keeps track of your device's status.
🌀 Strategically placed ventilation holes enhance airflow and cooling.
Compatible Systems
-Thunderbolt 4 PC running Windows 10/11.
-Thunderbolt 3/4 Mac running Mac OS 11 or later.
-Compatible with Other USB4 and MFDP Hosts (Full-functional USB-C, supports DisplayPort+USB3.1+Power Delivery)
Multiple Display Resolution(Max. Resolution)
a. For Mac OS TBT3/TBT4:
1) Single Display: TBT4/HDMI1/HDMI2: 4K@60Hz;
2) Dual Display: TBT4+HDMI1/2: 4K@60Hz(ABC); HDMI1+HDMI2: 4K@60Hz(ACC);
3) Triple Display: TBT4+HDMI1+HDMI2: 4K@60Hz(ABCC).
b. For Windows TBT4 PC (DP1.4 with DSC):
1) Single Display: TBT4/HDMI1/HDMI2: 8K@60Hz;
2) Dual Display: TBT4+HDMI1/2: 4K@60Hz; HDMI1+HDMI2: 4K@60Hz;
3) Triple Display: TBT4+HDMI1+HDMI2: 4K@60Hz.
c. For Windows USB-C MFDP PC (DP1.4 with DSC):
1) Single Display: TBT4/HDMI1/HDMI2: 8K@30Hz;
2) Dual Display: TBT4+HDMI1/2: 4K@60Hz; HDMI1+HDMI2: 4K@60Hz;
3) Triple Display: TBT4+HDMI1+HDMI2: WL-UTD45
2.Ports: Front Panel: 1x 4-Pole Phone Jack; SD/TF Card Slots(312MB/s), 1x USB-C(10Gbps, PD 30W),
1x USB-A 10Gbps, 1x Thunderbolt 4 Host(40Gbps, 96W);
Rear Panel: 1x DC IN (20V/8A, 160W); 2x 8K HDMI; 1x Thunderbolt 4 Downstream(8K, 40Gbps, 15W);
1x USB-A 10Gbps; 2x USB-A 5Gbps; 1x RJ45(2500Mbps).
3.Unit Size: 217.7x 83.1x31.1mm/8.6x3.3x1.2in (WxDxH)
4.Thunderbolt 4 Cable Length: 80cm/31.5in
Power Adapter Cable Length(plug end): 150cm/59in
Power Adapter Cable Length (round port end): 120cm/47in
5.Unit Weight: 545g/19.2oz
6.Housing Material: ABS+Aluminum Alloy
In the Box
1 x Thunderbolt 4 Triple Display Docking Station
1 x 0.8M Thunderbolt 4 Cable
1 x 160W Power Adapter
1 x AC Power Cable
1 x Cable Holder
1 x Quick Start Guide
Warm Tips
1.M1/M2 based Macs only support single monitor.
2.For M3-based Macs, pls close the host screen to support dual display.
3.Using two HDMI ports for multiple displays on Mac will show mirrored content.
4.Single 8K@60Hz is enabled for Windows TBT4 PC with DP 1.4 or higher and DSC.
5.MacBook limits to 4K@60Hz in single/dual/triple display mode due to hardware constraints.
6. Performance may be limited for non-Thunderbolt 4 systems.
7. The downstream Thunderbolt 4 port and the USB-C PD port support offline charging.
Devices can be charged when disconnected from the computer or when the computer is powered off.
(TB5 Dock), 2 TBT 5 DFP, TBT 5 DFP, 140W PD, 2.5G LAN, 4 USB-A
WAVLINK Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Triple 4K/Dual 8K Display,
3x TB5 Downstream Ports, 4x USB-A 10Gbps, 2.5G Ethernet, for Mac & Windows TB5/4 LaptopsFeatures
- 1* Thunderbolt™5 UFP provides 80Gbps data, 120Gbps bandwidth video transfer,
140W instant charging for the USB-C laptop.
- 3* Thunderbolt™5 DFP provide 80Gbps data, dual 8K@60Hz or triple 4K@144Hz display at 120Gbps bandwidth,
one of them supports 30W instant charging for the downstream devices.
- 4* USB-A transfer speed up to 10Gbps, and compatible with USB 3.0/2.0.
- 1* RJ45 Ethernet provides efficient transfer, low-latency game experience, stable wired network.
- 1* UHS-Ⅱ SD/Micro SD card reader transfers high-definition video and vivid images at 312MB/s,
and compatible with UHS-Ⅰdevices.
- 1* Combo 3.5mm mic/headphone jack for clear audio in and out.
Systems/ Devices Compatibility
- Windows 11 or higher
- Mac OS 14.6 or later (M chip)
- Compatible with Thunderbolt 5/4, USB4, and USB 3.0 computers featuring a USB-C port.
How to Check Your Laptop's Port:
For Best Performance (Thunderbolt 5/4): Look for the lightning bolt (⚡) symbol next to the USB-C port on your laptop.
A Thunderbolt 5 port is required to unlock all features, such as triple display on Windows.
For Mac Users: All modern Macs with USB-C ports feature Thunderbolt 3 or higher, ensuring great compatibility.
Display capabilities depend on your Mac's chip model (M1/M2/M3/M4 Base/Pro/Max).
For USB4 & USB-C (DP Alt Mode) Ports: The dock is compatible, but performance in display, data,
and charging will be limited by your host device's capabilities.
To ensure the best experience, please check your laptop's official specifications.
Multiple Display Resolution (Max. Resolution)
Windows 11 or higher:
Single Display:
Via Thunderbolt 5: Up to 8K@144Hz
Via Thunderbolt 4: Up to 8K@60Hz
Via USB-C Alt Mode: Up to 4K@60Hz
Via Thunderbolt 3: Not supported.Dual Display:
Via Thunderbolt 5: Up to 8K@60Hz
Via Thunderbolt 4: Up to 6K@60Hz
Via Thunderbolt 3: Not supported.
Via USB-C Alt Mode: Not supported.Triple Display:
Via Thunderbolt 5: Up to 4K@144Hz
Via Thunderbolt 4: Not supported.
Via Thunderbolt 3: Not supported.
Via USB-C Alt Mode: Not supported.macOS (14.6 or later):
Single Display:
M4 Base/Pro/Max: Up to 8K@60Hz
M1/M2/M3 Pro and Max: Up to 6K@60Hz M3 Base: Up to 6K@60Hz
M1/M2 Base: Up to 4K@60Hz
Dual Display:
M4 Base/Pro/Max: Up to 6K@60Hz
M1/M2/M3 Pro and Max: Up to 6K@60Hz
M1/M2/M3 Base: Not supported.
Triple Display:
All M-series chip Macs (including M4): Not WL-UTD59
2.Ports: Front: 1×Combo Audio Jack; SD/Micro SD Card Reader(UHS-Ⅱ, SD 4.0); 2×USB-A(10Gbps); 1×TBT 5 UFP
(Host, Max. 140W Charging, Video); 1×TBT 5 DFP (80Gbps, Video, PD 30W);
Rear:1×Lock; 2×TBT 5 DFP (80Gbps, Video, Charging); 2×USB-A (10Gbps); 1×RJ45 Ethernet; 1×DC IN (20V).
3.Unit Size: LxW×H to C/ HDMI Cable Length: 100cm/39.4in
5.Unit Weight: 610g/21.4oz
6.Material: Aluminum alloy
In the Box
- 1 x Thunderbolt™5 Multifunctional Docking Station
- 1 x 1m USB-C to USB-C Thunderbolt™5 Cable(80/120Gbps)
- 1 x 20V Power Adapter
- 1 x Screwdriver
- 1 x Quick Start Guide
Warm Tips:
1. For the best experience, a laptop with a Thunderbolt 5 or Thunderbolt 4 port is recommended.
Performance will be limited on standard USB-C and USB4 ports.
2.Triple External Displays: Support for three external displays is potentially available only when connected to
a laptop featuring a Thunderbolt 5 port and running Windows 11 or later. Actual support depends on the specific laptop's specifications.
3.macOS System Limitation: macOS systems do not support triple external displays through this dock. The number and
resolution/refresh rate of supported external displays depend on the specific Mac chip model (M1/M2/M3/M4 Base/Pro/Max).
Please refer to the compatibility list for details.
4.High Resolution/High Refresh Rates: Achieving 6K/8K resolutions and refresh rates above 60Hz typically requires
both your laptop (GPU) and external monitor(s) to support DSC (Display Stream Compression).
5.Accessories: USB-C to HDMI/DP cables and the security lock are not included and must be purchased separately.
Instructions about the monitor(s): 1.Dual 5K monitors must be Thunderbolt 4 or Apple Studio Displays.
Dual LG UltraFine 5K monitors are not supported. 6K monitors can be a Thunderbolt 4 monitor or an Apple Pro Display XDR.
DSC (Display Stream Compression) support is required for 6K and 8K resolutions.
2.Higher refresh-rates (above 60Hz) may require DSC (Display Stream Compression) support on the monitors and host GPU.
The bit/color depth may vary in order to support higher refresh-rates.
3.Some M3 MacBooks such as the MacBook Air can support dual external monitors up to 5K and
6K when the laptop lid is closed (clamshell mode).
4. Currently M1/2/3/4 Macs can only support up to HDMI 2.0b over its Thunderbolt ports. As such,
resolutions will be limited to 4K 60Hz when using an HDMI adapter. If a higher refresh-rate is required,
please use a USB-C to USB-C or USB-C to DisplayPort or DisplayPort to DisplayPort connection.
For more information about a Mac’s external display support please Apple's or CalDigit's support webpages.
5. Results may vary due to OS updates. For external display compatibility over a single Thunderbolt connection on
different Windows computers, please refer to the manufacturer’s website.
