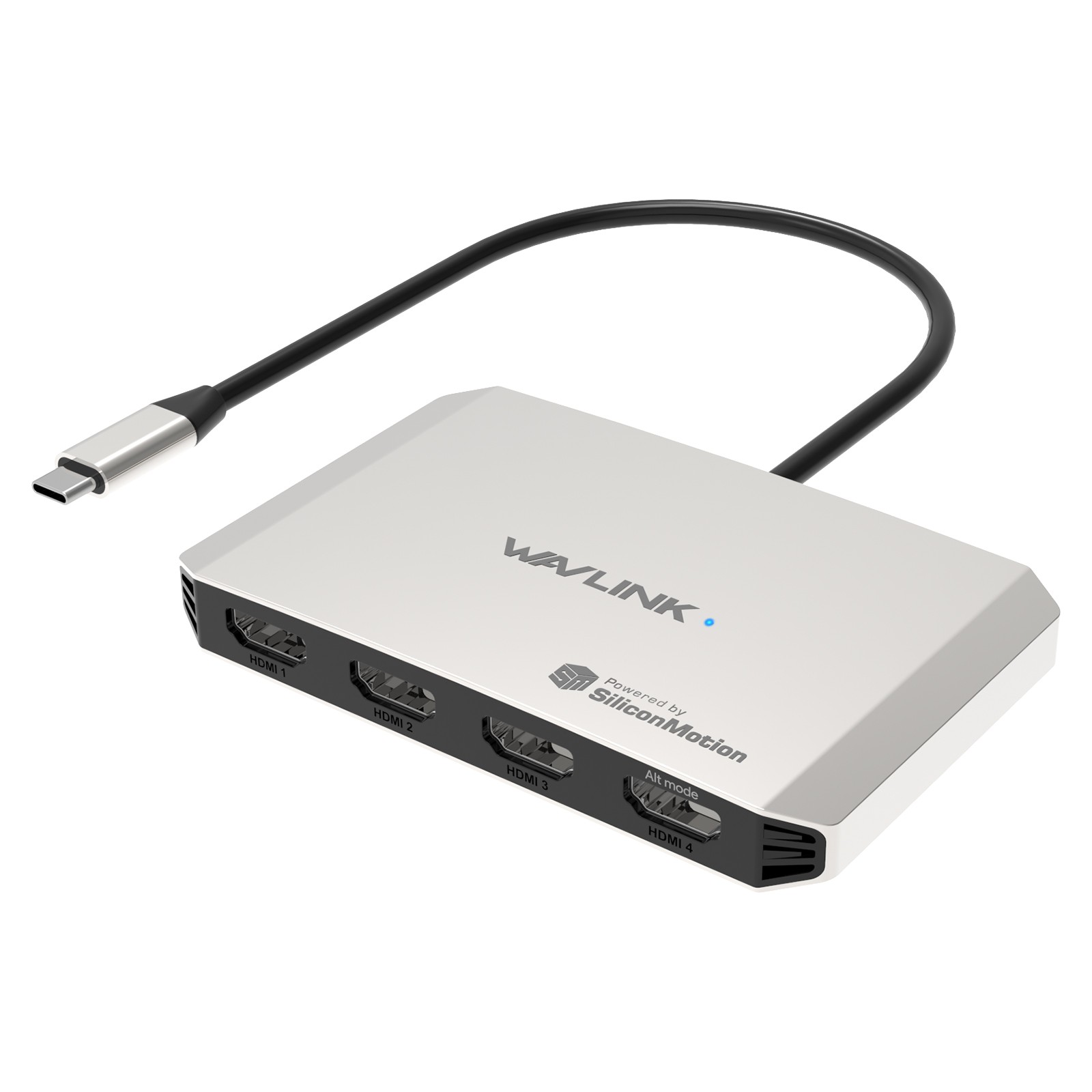

4HDMI/130W PD-SMI 4K Crystal-Clear Display - Featuring 4 HDMI ports, this adapter delivers ultra-clear display output with
the resolution of 3*4K@60Hz and 1*4K@144Hz (ALT mode) on macOS and Windows systems.
Easy to extend your monitors while offering the ultimate visual feast!
PD 3.1 Fast Charging - The USB-C display adapter supports USB Power Delivery 3.1 specification for 140W
input and 130W output, suitable for all your high-demand devices. (Note: A 140W PD wall charger and
a USB-C to USB-C cable are required for maximum charging efficiency.)
Powerful Silicon Motion Chip - Built-in Silicon Motion chip ensures high-quality image output,
multi-device compatibility, and stable performance, especially suitable for those who need multiscreen
high-loaded operation during work, like designers and programmers.Smaller Size, Better Portability - This display adapter is smaller than a cellphone, a little bit bigger
than a credit card, which offers unparalleled portability. Less than 150 g, lightweight design for carrying on-the-go.
Universal Compatibility - This display adapter offers broad compatibility with popular laptops such as MacBook
and Dell XPS 13 while supporting hosts running Windows, macOS, Chrome OS, Linux, and other major operating systems.
Its HDMI ports enable seamless connections to projectors, TVs, and external monitors for both screen
extension and mirroring functionality.Display Resolution on Windows and macOS
Single Display: Option 1 : 1*4K@144Hz; Option 2 : 1*4K@60Hz
Dual Display : Option 1: 1*4K@144Hz（Alt mode）+ 1*4K@60Hz; Option 2 : 2*4K@60Hz
Triple Display: Option 1 : 2*4K@60Hz+1*4K@144Hz（Alt mode）; option 2: 3*4K@60Hz
Quad Display: 3*4K@60Hz+1*4K@144Hz（Alt mode）
Note: 4K@144Hz is only on DP1.4 and above with DSC enabled.
Warm Tips
- PD charger and cable are not provided.
- The USB-C PD Pass-Through port can deliver up to 20V/6.5A/130W charging. Actual charging speed may
vary depending on your USB-C power adapter and laptop USB-C charging specifications.
- For a 4K@144Hz display output, the USB-C port of the host must support "DisplayPort Alt mode"
coverted to HDMI or Thunderbolt 3/4 for it to work.
In the Box
- 1 x Quick Start Guide
- 1 x Quad Universal 4K Display Adapter
System Requirement
- Microsoft Windows 10/11
- Apple Mac OS 13 or later
- Linux
- Chrome OS
- Harmony OS
- Android
Specification
1.Model: WL-UG7702H-A
2.Ports: Front: 3*HDMI port(4K@60Hz), 1*HDMI port(DP Alt Mode converted to HDMI) (4K@144Hz)
3.Rear: USB-C port(PD IN 140W), USB-C connector(PD pass-through 130W Charging)
4.Unit Size: LxWxH: 11.4x7x1.5 cm/4.5x2.8x0.6 inch
5.USB-C Cable Length: 25.6 cm/10.4 inch
6.Unit Weight: 132g/4.7oz
7.Material: Aluminum Alloy
4HDMI/85W Charging-DisplayLink
Quad 4K@60Hz Display - Enjoy stunning visuals with four HDMI ports, each supporting up to 4K (3840x2160) @60Hz resolution.
Perfect for multi-monitor setups, whether for work or entertainment. Supports both mirror and extend display modes,
allowing you to customize your workspace to suit your needs. Does not support HDCP, will not playback encrypted or
copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
DisplayLink DL7400 Chipset - Powered by the latest DisplayLink DL7400 chipset, this universal display adapter ensures
smooth and reliable performance, delivering high-quality video output across multiple displays. Especially customized for
light office environments where tasks such as document editing, web browsing, and video conferencing are common.
Multiple Display Configurations - Supports a variety of display configurations with single, dual, triple, and quadruple 4K displays at 60Hz.
Flexible setup options allow you to tailor your workspace to your needs, enhancing productivity and the visual experience.
Whether you need to mirror displays for presentations or extend your desktop for multitasking, this adapter has you covered.
Easy Driver Installation & Compatibility - Simple driver installation by visiting displaylink.com, finding the corresponding driver
for your system, downloading, and installing. Start using your new display extender after a quick and easy setup process.
Compatible with Windows 11/10, Mac OS 11.x-13.x or later, Chrome OS, Ubuntu, Android and Harmony OS systems,
ideal for both home and office use. Moreover, the included USB-C to USB-A adapter further broadens the compatibility of host devices.
USB-C PD Quick Charging - Comes with a 100W USB-C charging port (NOT for data transfer or video output),
this USB-C/A dispaly adapter can charge your laptop at an impressive rate of up to 85W. This ensures a swift and
efficient charging experience while also eliminating any worries about running out of power on your laptop. To utilize the charging feature,
you must connect the USB-C port of your laptop, which needs to support PD charging. Kindly note that neither the charger
nor the charging cable are included.
Multiple Display Resolution(Max. Resolution)
1) Single Display:
HDMI1/HDMI2/HDMI3/HDMI4: 4K(3840x2160)@60Hz.
2) Dual Display:
HDMI1+ HDMI2: 2*4K(3840x2160)@60Hz;
HDMI1/2+ HDMI3/4: 2*4K(3840x2160)@60Hz;
HDMI3+ HDMI4: 2*4K(3840x2160)@60Hz.
3) Triple Display:
HDMI1+HDMI2+HDMI3/4: 3*4K(3840x2160)@60Hz.
4) Quadruple Display:
HDMI 1+HDMI 2+HDMI3+HDMI4: WL-UG7501H
2.Chip: DisplayLink DL7400
3.Connection to Host: USB-C/A
4.Video Ports: 4 x HDMI
5.Product Size: 11.3 x 9.9 x 1.5cm/4.5x3.9x0.6in (L x W x H)
6.Cable Length: 23cm/9.1in
7.Product Weight: 206g/7.3oz
Features
- 4 x HDMI ports support quad 4K@60Hz.
- 1 x USB-C/A 2-in-1 cable, easily connect to the host.
- 1 x USB-C 100W PD in charging to the laptop.
Warm Tips
☺Not plug-and-play supported; please download and install drivers from the official website.
☺Ideal for light office use; not recommended for graphic-intensive tasks like gaming or video editing.
☺Please confirm that the type-c port of your laptop supports charging, or the adapter's host charging function may not work.
☺The charger and charging cable are not included.
☺The USB-C port on the adapter is only for charging, does not support data transfer or video output.
☺Not for other Linux, iOS or iPad OS systems. Does not support Steam Deck or Nintendo Switch.
☺Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
In the Box
- 1 x Quad 4K@60Hz Universal Display Adapter
- 1 x Quick Start Guide
2HDMI/2DP/85W Charging-DisplayLink
Quad 4K/Dual DP 8K Display - Enjoy stunning visuals with 2 DisplayPort and 2 HDMI ports, each supporting up
to 8K@60Hz/4K@144Hz(DP 1 with DSC), 8K@60Hz/4K@120Hz(DP 2), 4K@60Hz(HDMI 1/2) resolution.
Perfect for multi-monitor setups, whether for work or entertainment. Supports both mirror and extend display modes,
allowing you to customize your workspace to suit your needs. Does not support HDCP, will not playback encrypted or
copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
DisplayLink DL7400 Chipset - Powered by the latest DisplayLink DL7400 chipset, this universal display adapter ensures
smooth and reliable performance, delivering high-quality video output across multiple displays. Especially customized for
light office environments where tasks such as document editing, web browsing, and video conferencing are common.
Multiple Display Configurations - Supports a variety of display configurations with single, dual, triple, and quadruple displays.
Flexible setup options allow you to tailor your workspace to your needs, enhancing productivity and the visual experience.
Whether you need to mirror displays for presentations or extend your desktop for multitasking, this adapter has you covered.
Easy Driver Installation & Compatibility - Simple driver installation by visiting displaylink.com, finding the corresponding
driver for your system, downloading, and installing. Start using your new display extender after a quick and easy setup process.
Compatible with Windows 11/10, Mac OS 11.x-13.x or later, Chrome OS, Ubuntu, Android and Harmony OS systems,
ideal for both home and office use. Moreover, the included USB-C to USB-A adapter further broadens the compatibility of host devices.
USB-C PD Quick Charging - Comes with a 100W USB-C charging port (NOT for data transfer or video output),
this USB-C/A dispaly adapter can charge your laptop at an impressive rate of up to 85W. This ensures a swift and efficient
charging experience while also eliminating any worries about running out of power on your laptop. To utilize the charging feature,
you must connect the USB-C port of your laptop, which needs to support PD charging. Kindly note that neither the charger nor the charging cable are included.
Multiple Display Resolution(Max. Resolution)
1) Single Display:
DP 1 (DSC): 8K@60Hz/4K@144Hz
DP 2: 8K@60Hz/4K@120Hz
HDMI 1/2: 4K@60Hz
2) Dual Display:
DP 1 (DSC)+DP 2: 8K@60Hz/4K@144Hz+8K@60Hz/4K@120Hz
DP 1 (DSC)+HDMI 1/2: 8K@60Hz/4K@144Hz+4K@60Hz
DP 2+HDMI 1/2: 8K@60Hz/4K@120Hz+4K@60Hz
HDMI 1+HDMI 2: 2*4K@60Hz
3) Triple Display:
DP 1 (DSC)+DP 2+HDMI 1/2: 8K@60Hz/4K@144Hz+4K@120Hz+4K@60Hz or 4K@144Hz+8K@60Hz+4K@60Hz
DP 1 (DSC)+HDMI 1+HDMI 2: 8K@60Hz/4K@144Hz+2*4K@60Hz
DP 2 +HDMI 1+HDMI 2: 8K@60Hz/4K@120Hz+2*4K@60Hz
4) Quadruple Display:
DP 1 (DSC)+DP2+HDMI 1+HDMI 2: WL-UG7501DH
2.Chip: DisplayLink DL7400
3.Connection to Host: USB-C/A
4.Video Ports: 2 x HDMI, 2 x DP
5.Product Size: 11.3 x 9.9 x 1.5cm/4.5x3.9x0.6in (L x W x H)
6.Cable Length: 23cm/9.1in
7.Product Weight: 206g/7.3oz
Features
- 2 x DP & 2 x HDMI ports support dual 8K@60Hz and quad 4K@60Hz.
- 1 x USB-C/A 2-in-1 cable, easily connect to the host.
- 1 x USB-C 100W PD in charging to the laptop.
Warm Tips
☺Not plug-and-play supported; please download and install drivers from the official website.
☺Ideal for light office use; not recommended for graphic-intensive tasks like gaming or video editing.
☺Please confirm that the type-c port of your laptop supports charging, or the adapter's host charging function may not work.
☺The charger and charging cable are not included.
☺The USB-C port on the adapter is only for charging, does not support data transfer or video output.
☺Not for other Linux, iOS or iPad OS systems. Does not support Steam Deck or Nintendo Switch.
☺Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
In the Box
- 1 x Quad 4K/Dual 8K DisplayPorts Universal Display Adapter
- 1 x Quick Start Guide
4HDMI/100W Charging/5 USB-A/C 3.2/2.5G LAN-DisplayLink
Break Through the Limitations - WAVLINK USB-C laptop docking station utilizes the latest DisplayLink DL7400
chipset to safely circumvent the display restrictions of Apple's triple display limitation and achieve quadruple display support.
Quad 4K resolution display bring you clear sharp text, bright vivid images, and overall more pixel density.
15 In 1 Docking Station - WAVLINK quadruple display docking station is an ultimate accessory for your laptop/PC and
features 4xHDMI(2.0) ports, 2.5G Ethernet port, USB C 3.2(10Gbps+PD30W), 2xUSB-C 3.2(10Gbps), 3xUSB-A 3.2(10Gbps),
SD4.0 slot(312MB/s), TF4.0 slot(312MB/s), DC in, 100W PD charging port, 3.5mm Audio & Mic jack. Driver required for this product,
pls go to the displaylink website to download the driver.Quadruple 4K Displays - This display link USB-C docking station has 4xHDMI ports. Quadruple monitors can be up to
4*4K (3840x2160)@60Hz, bringing you ultra-high definition and high refresh rate images. Whether you are programmers,
stock traders, or those who need multiple displays for high-efficiency work, this quadruple display docking station can be
a good assistant for your work and life.
Efficient Power Delivery -Comes with a 160W power adapter, this USB-C dock can charge your laptop up to 100W via the
USB-C connector, for downstream charging, another USB-C port on the front (PD 30W+10Gbps), provides up to
30W charging for your mobile phone/pad or any USB-C devices which support USB PD charging, giving you a
blazing-fast charging speed experience. Note: The USB-C port of your devices must support PD charging.
Blazing Fast USB-C/USB-A Ports - With 5 USB-A/C 3.2 ports you can transfer large files in seconds, as it goes in 10Gbps.
Furthermore, you can connect keyboard and mouse to the USB ports to save power. The SD & TF card slots (speed up to 312 MB/s)
for USB-A/Type-C/Thunderbolt 4/Thunderbolt 5 devices to access files from SD/TF cards to quickly view your photos or videos.
Double the performance of a traditional Gigabit Ethernet port with a 2.5G Ethernet port for faster file transfers,
smoother video conferencing, and seamless streaming.
Durable & Sleek Design: Housed in aluminum, this docking station is both stylish and durable,
designed to fit seamlessly into any professional or gaming setup.
Perfect for MacBook Neo Multi-Monitor Setup: Fully optimized for the latest MacBook Neo. While the native system
may limit external displays, our DisplayLink-powered dock breaks the boundary, allowing you to extend quadruple 4K monitors Silver
Material Type: Aluminum
4x HDMI: 4K@60Hz
1x Ethernet: up to 2.5 Gbps
3x USB-A 3.2: up to 10Gbps
1x USB-C 3.2: up to 10Gbps
1x USB-C 3.2: up to 10Gbps+PD30W
1x SD4.0: up to 312MB/s
Ix TF4.0:up to 312MB/s
1x 3.5mm 4-Pole Audio & Mic Jack
1x USB-C (Host, PD100W)
1x DC IN (20V/8A, 160W)
Multiple Display Resolution
①Single Display(Max. Resolution): 4K(3840x2160)@60Hz
②Dual Display(Max. Resolution): 2*4K(3840x2160)@60Hz
③Triple Display(Max. Resolution): 3*4K(3840x2160)@60Hz
④Quadruple Display(Max. Resolution): 4*4K(3840x2160)@60Hz
Warm Tips:
☺The dock is self-powered and needs to be connected to the power adapter to work normally.
☺Not recommended for gaming or video clips.
☺This dock works with Thunderbolt 4/5 laptops with maximum 10Gbps data transfer rate, cannot reach 40Gbps.
☺Please confirm that the USB-C port of your laptop supports charging, or the docking station's host charging function may not work.
☺Driver required for this product, does not support plug and play. Please follow the instructions to download the latest
DisplayLink driver from the official website before use.
☺Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
Package Includes
1 x Universal 10G Quad 4K Docking Station
1 x Type-C to Type-C 10Gbps Cable with Type-C to Type-A Adapter
1 x DC20V 8A Power Adapter
1 x AC Power Cable
1 x Cable Holder
1 x Quick Start Guide
DP/HDMI/3TBT4/98W Charging/4USB-A/2.5G LAN-TB4
15-in-1 Thunderbolt 4 Dock - Features a comprehensive range of ports, including 1x 3.5mm Audio/Mic,
1x SD Card Slot (312MB/s), 1x USB-A (10Gbps, 7.5W), 1x Upstream Thunderbolt 4 Port (40Gb/s, 98W),
1x DC In (20V/10A; 200W), 3x Downstream Thunderbolt 4 Ports (40Gb/s; PD15W; 8K), 1x USB-A (10Gbps),
2x USB-A (5Gbps), 1x RJ45 Ethernet (2.5Gbps), and 2x Video Stream (4K DP+ 4K HDMI).
Connect all your essential peripherals with ease. *Attention: For higher-resolution displays,
connect your monitors to Thunderbolt 4 ports instead of HDMI or DisplayPort video streams.
And please download the latest driver from “displaylink” before using the HDMI/DP ports.
40Gbps Transfer Speed & 98W Charging - Enjoy lightning-fast data transfer speeds with Thunderbolt 4 at 40 Gbps.
The upsteam Thunderbolt 4 port supports up to 98W power delivery, allowing for efficient charging of your laptop.
Additionally, the three downstream Thunderbolt 4 ports also offer 15W power delivery to keep multiple devices charged
simultaneously. These extensive connectivity and power capabilities greatly enhance efficiency in your work.
Single 8K Display & Multiple 4K Displays - The UTD41Pro dock supports an impressive single 8K display or
multiple 4K displays (dual, triple, or quad display), providing stunning visuals and enhancing productivity.
You can effortlessly switch between extend and mirror modes to customize your workflow. Both Mac OS and Windows
systems support extend, mirror, rotation, and clamshell modes, allowing for versatile display configurations.
*Please note: M1/M2-based Macs can only have one video output from the three Thunderbolt 4 ports, but the HDMI and DP ports function normally.
2.5G Ethernet & SD V4.0 - Whether you're streaming, gaming, or working on bandwidth-intensive tasks,
the 2.5G wired connection ensures a seamless online experience with enhanced network capabilities.
Enjoy lightning-fast and lag-free connectivity without any interruption. An integrated SD V4.0 card reader
supports blazing-fast speeds of up to 312 MB/s, allowing for fast and efficient transfer of files from SD cards,
saving you valuable time and ensuring smooth workflow.
System Compatibility & Package - Compatible with Thunderbolt 4-enabled PCs running Windows 10/11 and
Thunderbolt 3/4-enabled Macs running Mac OS 11 or later. Just enjoy seamless connectivity and enhanced functionality
on your PC or Mac with this docking station. In the box: 1x Thunderbolt 4 Quad Display Docking Station, 1x 0.8M Thunderbolt 4 Cable,
1x Cable Holder, 1x 200W Power Adapter, 1x Quick Start Guide, 1x Driver Download Card.
Combo Audio & Mic Port - Connect your headphones, microphones, or mini stereos to this convenient port,
allowing for seamless audio input and output. Whether you're participating in online meetings, enjoying your favorite music,
or engaging in voice chats, the combo audio and mic port ensures clear and reliable communication.
Resolution on Different Displays:
1 Monitor:
- Thunderbolt 4: Resolutions up to 8K@30Hz
- DisplayPort: Resolutions up to 4K@60Hz
- HDMI: Resolutions up to 4K@60Hz
2 Monitors:
- 2x Thunderbolt 4: dual 4K@60Hz
- Thunderbolt 4 (8K@30Hz) + DisplayPort (4K@60Hz)
- Thunderbolt 4 (8K@30Hz) + HDMI (4K@60Hz)
- 2x DisplayPort: Resolutions up to 4K@60Hz
- 2x HDMI: Resolutions up to 4K@60Hz
- DisplayPort + HDMI: Resolutions up to 4K@60Hz
3 Monitors:
- Dual Thunderbolt 4 (4K@60Hz) + DP or HDMI (4K@60Hz)
- Thunderbolt 4 (8K@30Hz) + 2x DP/HDMI (4K@60Hz)
- Thunderbolt 4 (8K@30Hz) + DP1(4K@60Hz) + HDMI2 (4K@60Hz)
- Thunderbolt 4 (8K@30Hz) + HDMI1(4K@60Hz) + DP2 (4K@60Hz)
4 Monitors:
- Dual Thunderbolt 4 (4K@60Hz) and 2x DP/HDMI (4K@60Hz)
- Dual Thunderbolt 4 (4K@60Hz) + DP1(4K@60Hz) + HDMI2 (4K@60Hz)
- Dual Thunderbolt 4 (4K@60Hz) + HDMI1(4K@60Hz) + DP2 WL-UTD41Pro
2.Ports(15-in-1):
(Front) 1x 3.5mm Audio/Mic, 1x SD Card Slot (312MB/s), 1x USB-A (10Gbps, 7.5W), 1x Upstream
Thunderbolt 4 Port (40Gb/s, 98W), 1x Power Switch
(Back) 1x DC In (20V/10A; 200W), 3x Downstream Thunderbolt 4 Ports (40Gb/s; PD15W; 8K), 1x USB-A (10Gbps),
2x USB-A (5Gbps), 1x RJ45 Ethernet (2.5Gbps), 2x Video Stream (4K DP+ 4K HDMI)
3.Power Supply: DC20V/10A 200W
4.Unit Size: 24cm x 8.1cm x 3.9cm/ 9.4in x 3.3in x 1.5in
5.Weight: 501g/17.7oz
6.Cable Length:
Thunderbolt 4 Cable: 80cm/31.5in
Power Adapter Cable Length(plug end): 150cm/59in
Power Adapter Cable Length(round port end): 110cm/43in
7.Housing: Aluminum Alloy
8.Status LED: Red
Features
-Two video streams support dual 4K@60Hz display. One video stream can only choose one.
-Three Thunderbolt 4 downstream ports support single 8K@30Hz, and dual 4K@60Hz display.
Two video streams combined with any two downstream Thunderbolt 4 ports can work for four 4K@60Hz video output.
-One RJ45 port supports 2.5G Ethernet and is backward compatible with 1000/100/10Mbps networks.
-Two USB-A ports have a data transfer speed of up to 10Gbps. Two USB-A ports have a data transfer speed of up to 5Gbps.
-One integrated SD V4.0 Card Reader with an SD slot supports UHS-II theoretical bus speed of up to 312MB/s
and is also backward compatible with SDXC, SDHC, and standard SD cards.
-One 3.5mm Audio/Mic interface supports CTIA/OTMP headphones and microphone.
-One Kensington lock prevents theft of the device.
System Requirement
Thunderbolt 4 PC running Windows 10/11.
Thunderbolt 3/4 Mac running Mac OS 11 or later.
In the Box
1x Thunderbolt 4 Quad Display Docking Station
1x 0.8M Thunderbolt 4 Cable
1x Cable Holder
1x 200W Power Adapter
1x Quick Start Guide
1x Driver Download Card
Warm Tips
1. The three Thunderbolt 4 ports support a maximum of two displays.
2. Each video stream group allows the use of only one port. In video stream A and video stream B,
you can only use either the DisplayPort or HDMI port, not both at the same time.
3. M1/M2-based Mac can only have one video output from the three Thunderbolt 4 ports, but the HDMI/DP ports function normally.
4. Please download the latest driver from displaylink.com before using the HDMI/DP ports.
5. Please ensure the power connection is maintained (power adapter included in the package) while using this docking station.
6. To enable support for 8K display, the computer's USB-C port must support DP1.4.
7. For more USB-C non-Thunderbolt 3/4 laptops, the performance will be limited.
8. The dock does not support HDCP.
9. All downstream Thunderbolt 4 ports and one USB 3.1 fast charging port support offline charging,
enabling peripheral devices to be charged even when the computer is disconnected or powered off.
4HDMI/4DP/100W Charging/3USB3.0/USB3.1/2.5G LAN-DisplayLink
18 in 1 Design & Massive Expansion - Equipped with eight maximum 5K(5120*1440)@60Hz HDMI/DP++ outputs,
100W host PD charging, 2.5Gbps RJ45 Ethernet connection, SD/TF card reader, PD 30W USB-C port(charge only),
three USB-A ports(5Gbps), USB-A port(10Gbps), 2-in-1 Audio&Mic. This dock turns your device into a small workstation,
providing you with a sleek workspace.
Brilliant Performance with Quadruple Display - Mirror or extend your screens to external four HDTVs,
monitors or projectors with resolution up to 5K(5120*1440) at 60Hz via HDMI or DP++ port. Give you vivid 3D effect video sync.
Note: In each video stream group you can only use one port, either "DP++" or "HDMI" and the latest driver required to
achieve 5120*1440@60Hz resolution.
Integrated Charging - Come with a 180W power adapter, this usb c dock can charge your laptop up to 100W via the
USB-C connector, and charge your type-c devices up to 30W via the PD port simultaneously. Tips: 1).
Please make sure the USB-C port of your device supports power delivery. 2).The USB-C port on the front side does not support data transfer.
Ultra-High Speed Data Transfer - 3 USB3.0 ports provide effortless data transfer up to 5Gbps. The USB3.1 port offers 10Gbps
data transmission and supports BC1.2 and Apple 2.4A fast charging. SD/TF card slots with max 312MB/s enable to work
simultaneously and support different memory card formats. Perfect for photographers, designers and filmmakers.
Stable Internet & Versatile Compatibility - Up to 2.5Gbps high-speed wired connection ensures a more secure and stable
network performance. A great solution for wireless problems such as dropped signals, spotty connections.
Backward compatible with 10/100/1000Mbps. Windows 7/8/8.1/10/11, Mac 10.8-12.x or latest, Chrome, Android, Ubuntu systems supported.
Perfect for MacBook Neo Multi-Monitor Setup - Fully optimized for the latest MacBook Neo. While the native system
may limit external displays, our DisplayLink-powered UG69PD8 Pro breaks the boundary, allowing you to extend quad 5K monitors seamlessly.
Features:
1. This universal docking station works with USB Type-C, Thunderbolt 3 & compatible with USB-A computers.
2. 180Watt Power adapter provide maximum 100W power delivery to charge your computer.
3. Mirror&Extend mode to connect multiple screens: Quad DisplayPort or Quad HDMI or multiple DP + HDMI displays for easy deployment.
4. HDMI or DisplayPort output support audio 5.1 Channel surround-sound.
5. One USB3.1 Type-A (10G) supports BC1.2 fast charging and max 10Gbps data transmission and three USB3.0 Type-A (5G) ports extend more connectivity to USB devices.
6. 2.5G Ethernet network RJ-45 backward 10/100/1000 Ethernet.
7. Integrated TRRS 4-pole phone jack to give audio speaker out and mic in.
8. One USB-C individual 30W PD charging port for any USB-C devices supports USB PD charging.(No data transmission)
9. Integrated SD V4.0 Card Reader with SD/Micro SD slot support UHS-II theoretical bus speed up to 312MB/s.
10. Supports Windows7/8/8.1/10/11(32/64-bit), Mac OS 10.8-12.x or later, Chrome OS, Android &Ubuntu.
Tips:
-The dock is self-powered and needs to be connected to the power adapter to work normally.
-This dock works with Thunderbolt 3 laptops with maximum 10Gbps data transfer rate, cannot reach 40Gbps.
-The extend or mirror mode can only be performed by connecting to the computer through the USB-C (host) port.
-When we use the USB-C to C cable with USB-A converter, the computer cannot be charged through the USB-A interface.
-In each video stream group you can only use one port, either "DP++" or "HDMI". If you plug in both HDMI and DP
within the same video stream, DP will be working, HDMI will not.
-Offering 100W USB power delivery on PD 3.0, you can power laptops and other peripherals through your dock.
Making sure that your laptop complies with USB PD charging and supports 100W charging power.
-Resolution up to 5120*1440@60Hz when plug either "DP" or "HDMI" port within the same stream and the latest
driver needed. Links to the latest driver will be provided on our official website. Make sure your display supports 5120*1440 resolution .
-Requirements for dual 5K(5120*2880@60Hz): connect the left two or the right two DisplayPort together to provide up to
5120*2880@60Hz resolution to a single display. The display needs to have 2 DP input ports and supports 5120*2880@60Hz resolution
and refresh rate. Windows PC required. MAC DO NOT SUPPORT 5120*2880@60Hz RESOLUTION.
Package Lists:
1*USB-C Quad Display 4K@60Hz Universal Dock
1*2-in-1 USB-C to USB-C Cable with USB-A Converter
1*DC20V/9A 180W Power Adapter
1*AC Power Cable
1*User Manual
1*Paper made CD (driver linkage)
