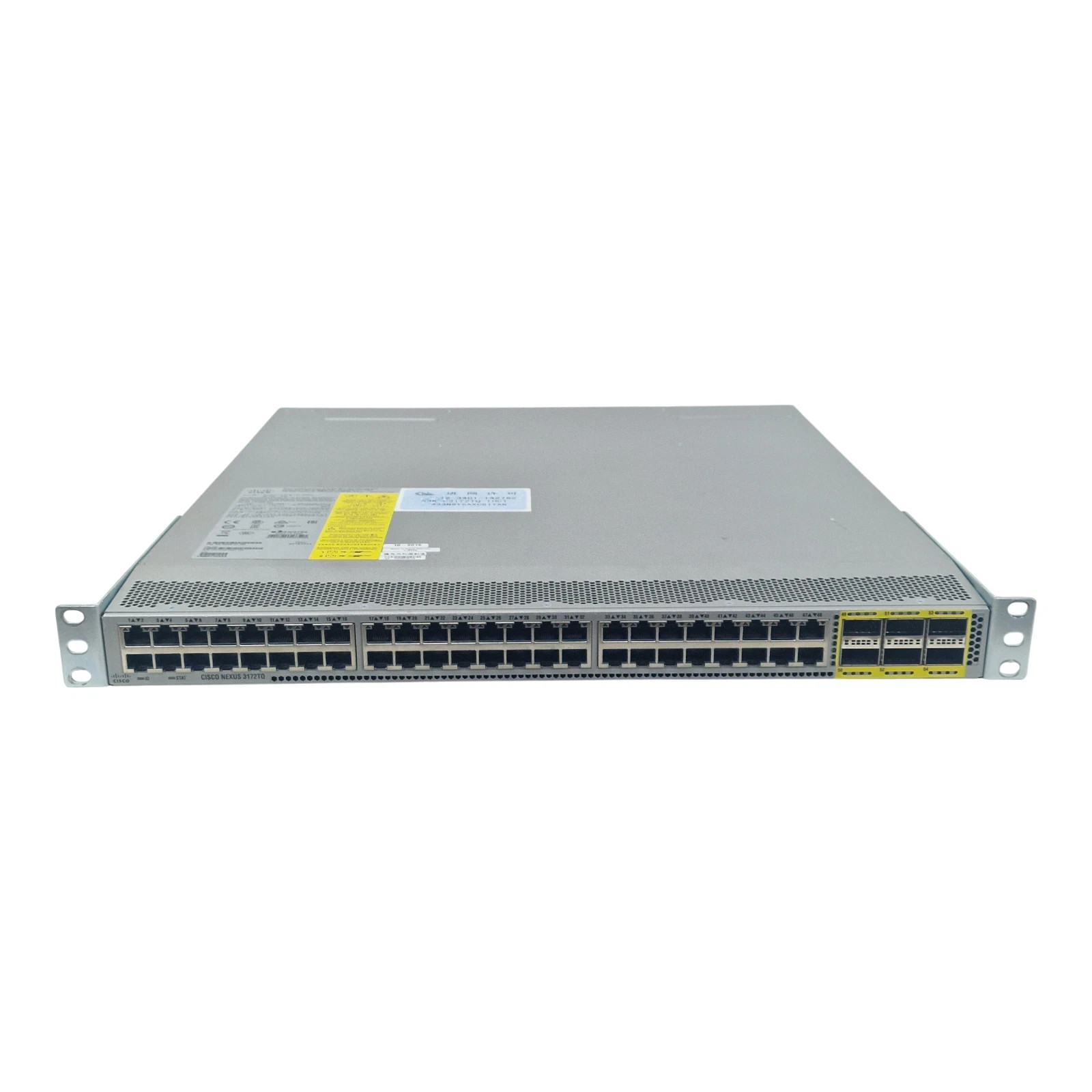

Cisco Nexus N3K-C3172TQ-10GT 3172TQ 48x 10GbE RJ45 +6x 40Gb QSFP+ Port 1U Switch Model:N3K-C3172TQ-10GT In Good Condition, Full Working OrderTested2 Year WarrantyPort Side Exhaust Airflow Includes LAN_BASE_SERVICES_PKGIncludes: - 1 xCisco Nexus N3K-C3172TQ-10GT 3172TQ 48x 10GbE RJ45 +6x 40Gb QSFP+ Port 1U Switch
- 4 x Fan ModulesNXA-FAN-30CFM-F
- 2 x 500W Power Supplies style="box-sizing: inherit;">
- 1RU fixed form factor
- 72 x 10 Gigabit Ethernet ports (48 10GBASE-T and 6 QSFP+)
- 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps
- 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each
- Redundant fans (3+1)
- 2 redundant power supplies
- Management, console, and USB flash-memory ports
Performance - 1.4-Tbps switching capacity
- Forwarding rate of up to 1 bpps
- Line-rate traffic throughput (both Layer 2 and 3) on all ports
- Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability - Number of MAC addresses: 288,000
- Number of VLANS: 4096
- Number of spanning-tree instances:
- Number of ACL entries:
- Routing table:
- 16,000 prefixes and 16,000 host entries*
- 8000 multicast routes*
- Number of EtherChannels: 64 (with vPC)
- Number of ports per EtherChannel: 32
- System memory: 4GB
- Buffer size: 12 MB shared
- Boot flash: 16 GB
Power - Number of power supplies: 2
- Power supply type:
- AC (forward and reversed airflow)
- NXA-PAC-500W and NX-PAC-500W-B
- DC (forward and reversed airflow)
- NXA-PDC-500W and style="box-sizing: inherit;">Typical operating power: 360 W
- Maximum power: 440W
- AC PSUs
- Input voltage: 100 to 240 VAC
- Frequency: 50 to 60 Hz
- Efficiency: 89 to 91% at 220V
- DC PSUs
- Input voltage: -40 to -72 VDC
- Maximum current (PSU output - System input): 33A (400W unit), 42A (500W unit)
- Efficiency: 85 to 88%
Cooling- Forward and reversed airflow schemes:
- Forward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports)
- Reversed airflow: Port-side intake (air enters through ports and exits through fan-tray and power supplies)
- Redundant fans
- Hot swappable (must swap within 1 minute)
Sound- Measured sound power (maximum)
- Fan speed: 40% duty cycle: 64.9 dBA
- Fan speed: 70% duty cycle: 69.3 dBA
- Fan speed: 100% duty cycle: 76.7 dBA
Environment- Dimensions (height x width x depth): 1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 50.5 cm)
- Weight: 22.0 lb (10 kg)
- Operating temperature: 32 to 104°F (0 to 40°C)
- Storage temperature: -40 to 158°F (-40 to 70°C)
- Operating relative humidity:
- 10 to 85% noncondensing
- Up to 5 days at maximum (85%) humidity
- Recommend ASHRAE data center environment
- Storage relative humidity: 5 to 95% noncondensing
- Altitude: 0 to 10,000 ft (0 to 3000m)
Boot Log:switch# show version
Cisco Nexus Operating System (NX-OS) Software
TAC support: http://www.cisco.com/tac
Copyright (C) 2002-2023, Cisco and/or its affiliates.
All rights reserved.
The copyrights to certain works contained in this software are
owned by other third parties and used and distributed under their own
licenses, such as open source. This software is provided "as is," and unless
otherwise stated, there is no warranty, express or implied, including but not
limited to warranties of merchantability and fitness for a particular purpose.
Certain components of this software are licensed under
the GNU General Public License (GPL) version 2.0 or
GNU General Public License (GPL) version 3.0 or the GNU
Lesser General Public License (LGPL) Version 2.1 or
Lesser General Public License (LGPL) Version 2.0.
A copy of each such license is available BIOS: version 5.3.1
NXOS: version 9.3(12)
BIOS compile time: 05/17/2019
NXOS image file is: NXOS compile time: 6/20/2023 12:00:00 [06/23/2023 17:33:36]Hardware
cisco Nexus 3172T Chassis
Intel(R) Pentium(R) CPU @ 2.00GHz with 4029684 kB of memory.
Processor Board ID FOC18212WWJ Device name: switch
bootflash: 1838592 kB
usb1: 0 kB (expansion flash)Kernel uptime is 0 day(s), 0 hour(s), 3 minute(s), 33 second(s)Last reset at 914454 usecs after Fri Feb 21 14:13:31 2025
Reason: Kernel Reboot
System version:
Service:plugin
Core Plugin, Ethernet PluginActive Package(s):switch# show inventory
NAME: "Chassis", DESCR: "Nexus 3172T Chassis"
PID: N3K-C3172TQ-10GT , VID: V01 , SN: FOC1821R0P7NAME: "Slot 1", DESCR: "48x10GT + 6x40G Supervisor"
PID: N3K-C3172TQ-10GT , VID: V01 , SN: FOC18212WWJNAME: "Power Supply 1", DESCR: "Nexus 3172T Chassis Power Supply"
PID: NXA-PAC-500W , VID: V01 , SN: LIT17300JTPNAME: "Power Supply 2", DESCR: "Nexus 3172T Chassis Power Supply"
PID: NXA-PAC-500W , VID: V02 , SN: DCB2224L0ST
NAME: "Fan 1", DESCR: "Nexus 3172T Chassis Fan Module"
PID: NXA-FAN-30CFM-F , VID: V00 , SN: N/ANAME: "Fan 2", DESCR: "Nexus 3172T Chassis Fan Module"
PID: NXA-FAN-30CFM-F , VID: V00 , SN: N/ANAME: "Fan 3", DESCR: "Nexus 3172T Chassis Fan Module"
PID: NXA-FAN-30CFM-F , VID: V00 , SN: N/ANAME: "Fan 4", DESCR: "Nexus 3172T Chassis Fan Module"
PID: NXA-FAN-30CFM-F , VID: V00 , SN: N/Aswitch# show license usage
Feature Ins Lic Status Expiry Date Comments
No - Unused -
NXOS_OE_PKG No - Unused -
24P_N3K_LIC_PKG No - Unused -
48P_N3K_UPG_PKG No - Unused -
TP_SERVICES_PKG No - Unused -
NXOS_ADVANTAGE_XF No - Unused -
NXOS_ESSENTIALS_XF No - Unused -
NETWORK_SERVICES_PKG No - Unused -
LAN_BASE_SERVICES_PKG Yes - Unused never -
LAN_ENTERPRISE_SERVICES_PKG No - Unused show environment Model Hw Direction NXA-FAN-30CFM-F 0.0 front-to-back Ok
Fan2(sys_fan2) NXA-FAN-30CFM-F 0.0 front-to-back Ok
Fan3(sys_fan3) NXA-FAN-30CFM-F 0.0 front-to-back Ok
Fan4(sys_fan4) NXA-FAN-30CFM-F 0.0 front-to-back Ok
Fan_in_PS1 NXA-PAC-500W -- front-to-back Ok
Fan_in_PS2 NXA-PAC-500W -- front-to-back Ok
Fan Zone Speed: Zone 1: 0x28
Fan Air Filter : NotSupported
switch# show environment power
Power Supply:
Voltage: 12 Model Input Power Current Status
Type (Watts) NXA-PAC-500W AC 504.00 42.00 ok
2 NXA-PAC-500W AC 504.00 42.00 ok
Mod Model Power Current Power Current Status
Requested Requested Allocated Allocated
(Watts) (Amps) (Watts) (Amps)
--- ---------------------- ------- ---------- --------- ---------- --------
--
1 N3K-C3172TQ-10GT 348.00 29.00 348.00 29.00 pow
ered-up
Power Usage Supply redundancy mode: Redundant
Power Supply redundancy operational mode: RedundantTotal Power Capacity 1008.00 WPower reserved for Supervisor(s) 348.00 W
Power currently used by Modules 0.00 W -------------
Total Power Available 660.00 W
-------------
switch# show environment Sensor MajorThresh MinorThres CurTemp Status
(Celsius) (Celsius) ASIC 110 100 45 Ok1 Front-Left (D1) 70 60 25 Ok1 Front-Right(D2) 70 56 23 Ok1 Back (D3) 70 46 20 Ok
