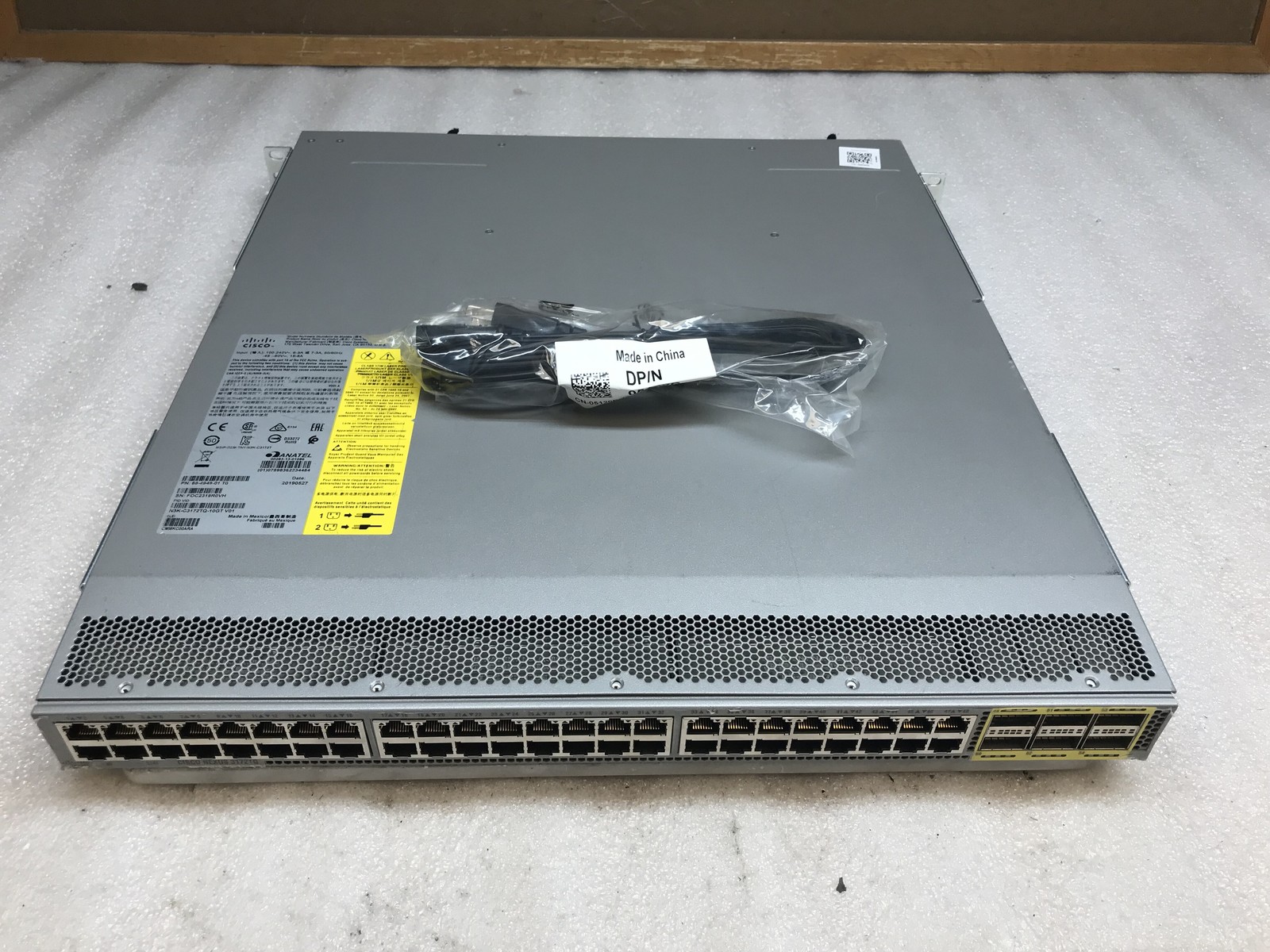

Listing Grid template example Product Photo Description Cisco Nexus N3K-C3172TQ-10GT 48-Port 10GbE Switch 6x QSFP LAN Enterprise Cisco Nexus N3K-C3172TQ-10GT 48-Port 10GbE Switch 6x QSFP LAN Enterprise

The Cisco Nexus N3K-C3172TQ-10GT is a high-performance, managed Layer 3 switch designed for enterprise networks requiring robust 10GbE connectivity. Featuring 48 10GbE ports and 6 QSFP slots, this switch provides the scalability and flexibility needed for modern data centers and LAN x 10GbE ports

6 x QSFP ports

Managed switch with advanced network management capabilities

Layer 3 routing support

No PoE support

Non-stackable design

Supports high-speed data transfer for enterprise LANs

Key Features

• High port density with 48 10GbE fixed ports, ideal for aggregation and core layer deployments
• 6 QSFP uplink ports supporting 40GbE or 4x10GbE breakout for flexible high-speed connectivity
• Advanced Layer 3 capabilities including routing protocols and multicast support
• Comprehensive management capabilities via Cisco NX-OS software
• Designed for data center environments with low latency and high throughput

Additional information

Software

BIOS: version 5.3.1

NXOS: version 9.3(13)

BIOS compile time:05/17/2019

NXOS image file is: compile time:1/31/2024 12:00:00 [12/13/2023 06:06:50]

Hardware

cisco Nexus 3172T Chassis

Intel(R) Pentium(R) CPU@ 2.00GHz with 4029684 kB of memory.

Processor Board ID FOC23180GEV

Device name: switch

bootflash:1825792 kB

usb1:0 kB (expansion flash)

Kernel uptime is 0 day(s), 0 hour(s), 5 minute(s), 5 second(s)

plugin

Core Plugin, Ethernet Plugin

Active Package(s):

switch# show boot

Current Boot Variables:

sup-1

NXOS variable = Variables on next reload:

sup-1

NXOS variable = POAP Enabled

switch# show inventory

NAME: "Chassis",DESCR: "Nexus 3172T Chassis"

PID: N3K-C3172TQ-10GT,VID: V01 ,SN: FOC2319R0VH

NAME: "Slot 1",DESCR: "48x10GT + 6x40G Supervisor"

PID: N3K-C3172TQ-10GT,VID: V01 ,SN: FOC23180GEV

NAME: "Power Supply 1",DESCR: "Nexus 3172T Chassis Power Supply"

PID: NXA-PAC-500W-B,VID: V02 ,SN: DCB2224M0GG

NAME: "Power Supply 2",DESCR: "Nexus 3172T Chassis Power Supply"

PID: NXA-PAC-500W-B,VID: V02 ,SN: DCB2224M0H4

NAME: "Fan 1",DESCR: "Nexus 3172T Chassis Fan Module"

PID: NXA-FAN-30CFM-B,VID: V00 ,SN: N/A

NAME: "Fan 2",DESCR: "Nexus 3172T Chassis Fan Module"

PID: NXA-FAN-30CFM-B,VID: V00 ,SN: N/A

NAME: "Fan 3",DESCR: "Nexus 3172T Chassis Fan Module"

PID: NXA-FAN-30CFM-B,VID: V00 ,SN: N/A

NAME: "Fan 4",DESCR: "Nexus 3172T Chassis Fan Module"

PID: NXA-FAN-30CFM-B,VID: V00 ,SN: N/A

switch# show license usage

FeatureInsLicStatus Expiry Date Notes

• Scratches and blemishes on unit housing

Included

• Rack Ears
• Power Cable

Not Included

• No additional transceivers or SFP modules included
• No console cables included

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22

Port Count
48 Port Speed
10G Management Type
Managed Poe Support
None Poe Budget
NO Stackable
NO Layer
Layer 3 Sfp Ports
6 Function Tests Powers On
Passed Management Interface Access
Passed Port Connectivity
Passed PoE Output
Passed Link Lights
Passed Factory Reset
Passed Notes: Unit factory reset and cleared through CLI. Shipping
