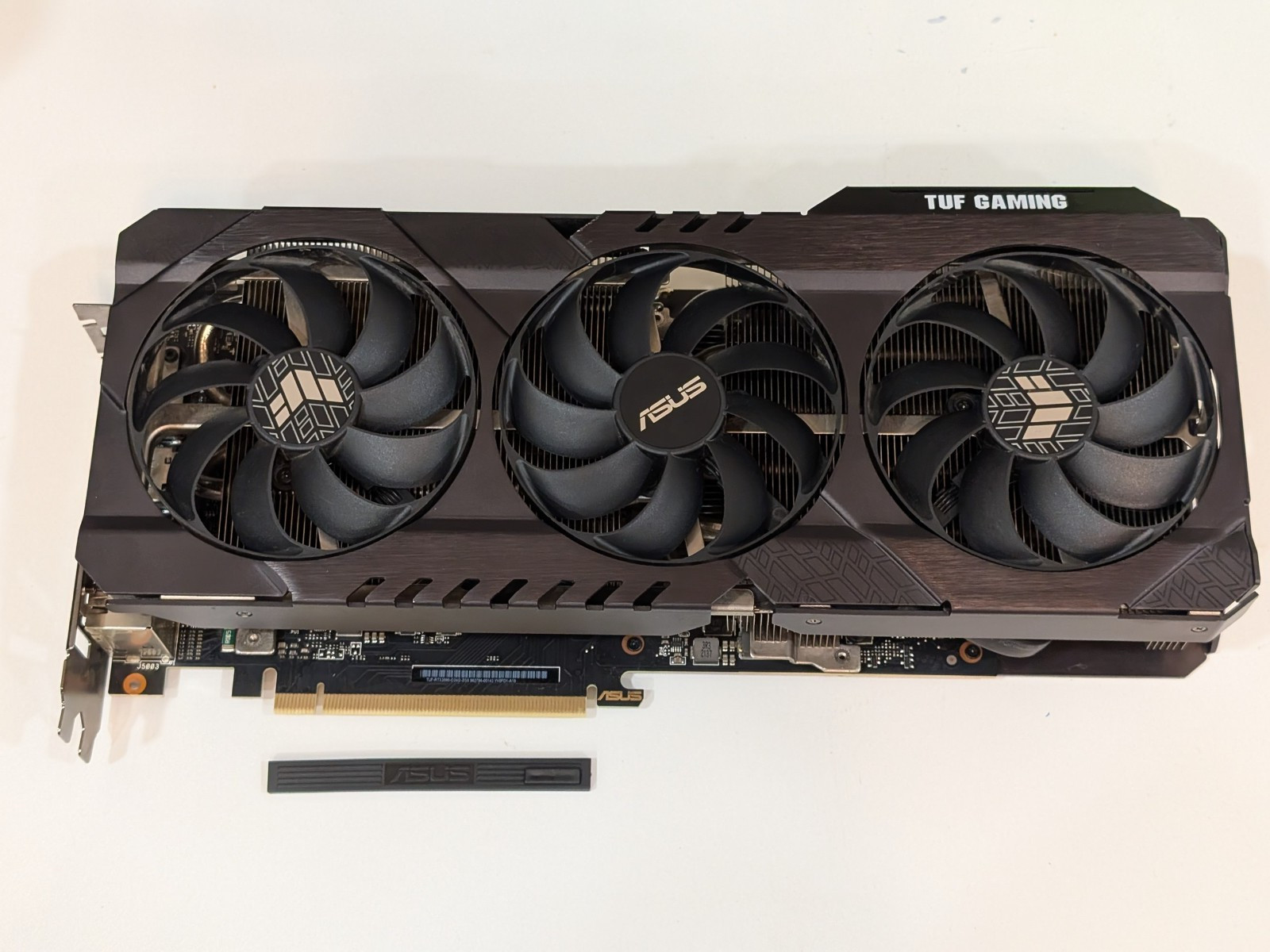

ASUS NVIDIA GeForce RTX 3090 24GB GDDR6X TUF Gaming OC Edition

Thermal Service: Card has been repasted with Honeywell PTM7950, Furmark at 30 minutes runs in the mid 70 degrees or cooler (this is very, very cool for air). Card should never need repasted again as PTM does not evaporate or shrink.

UPC: 0192876922828
MPN: TUF-RTX3090-O24G-GAMING
Brand: ASUS
Chipset Manufacturer: NVIDIA
Chipset/GPU Model: NVIDIA GeForce RTX 3090
Memory Size: 24 GB
Memory Type: GDDR6X
Compatible Slot: PCI Express 4.0 x16
Connectors: DisplayPort, HDMI
Power Cable Requirement: 8-Pin + 8-Pin PCI-E
APIs: CUDA, DirectX 12 Ultimate, OpenGL 4.6, Vulkan
Cooling Component Included: Fan with Heatsink

Alternative Models & Cross-Brand Equivalents

For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:

• TUF-RTX3090-24G-GAMING
• ROG-STRIX-RTX3090-O24G-GAMING
• ROG-STRIX-RTX3090-24G-GAMING
• ROG-STRIX-RTX3090-O24G-WHITE
• TURBO-RTX3090-24G
• EKWB-RTX3090-24G
• 24G-P5-3987-KR
• 24G-P5-3975-KR
• RTX 3090 GAMING X TRIO 24G
• RTX 3090 SUPRIM X 24G
• GV-N3090GAMING OC-24GD
• GV-N3090VISION OC-24GD
• ZT-A30900D-10P
& Compute Performance

Powered by the NVIDIA Ampere architecture (GA102-300-A1 Die), this ASUS TUF Gaming RTX 3090 OC Edition delivers massive compute and rendering capabilities. Featuring 10,496 CUDA Cores, 82 2nd Generation RT Cores, and 328 3rd Generation Tensor Cores, it is engineered for extreme high-end gaming, 8K resolution workloads, and intensive AI/Machine Learning applications. The OC Mode pushes the boost clock to 1770 MHz for maximum performance.

VRAM & Memory Bandwidth

Equipped with a massive 24GB of ultra-fast GDDR6X video memory, this graphics card is built to handle the most demanding textures and datasets without bottlenecking. Operating on a 384-bit memory interface with an effective memory speed of 19.5 Gbps, it provides immense memory bandwidth for seamless 3D rendering, video editing, and uncompromising 4K/8K gaming experiences.

Power, Cooling & Connectivity

The 2.7-slot design features a robust Triple Axial-tech Fan cooling system with dual ball fan bearings and a massive heatsink to maintain optimal thermals under heavy loads. Connectivity includes 2x HDMI 2.1 and 3x DisplayPort 1.4a outputs, supporting up to 4 simultaneous displays at a maximum digital resolution of 7680 x 4320. Power delivery requires 2x 8-pin PCIe power connectors, with a recommended system power supply of 850W. The physical dimensions are 11.8 inch x 4.99 inch x 2.03 inch.
