1.Main Parameters
Product Name

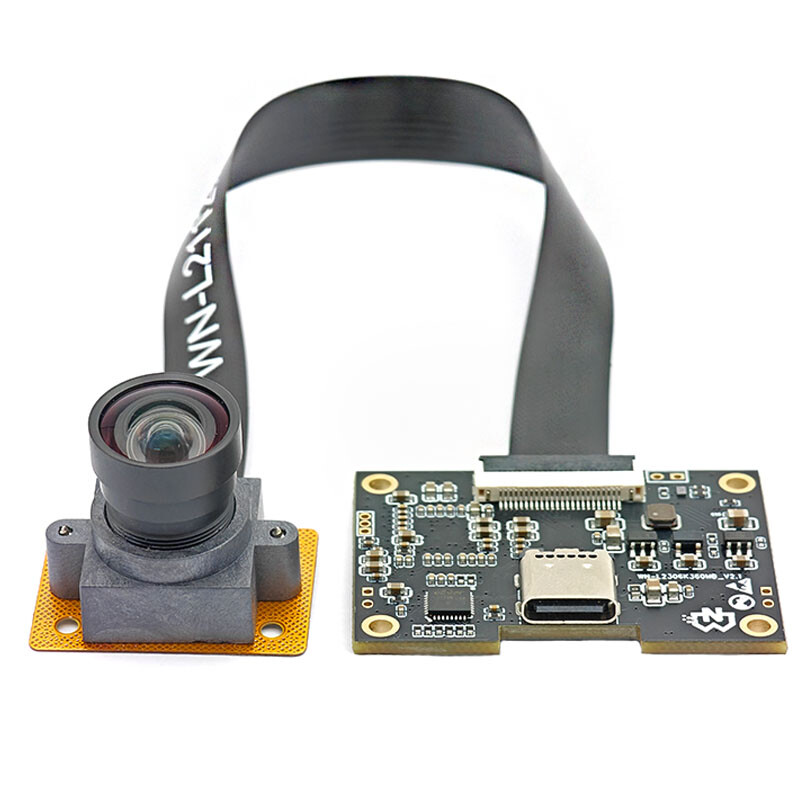

4KUSB3.0Camera Module
Product Code
WN-L2306K360MB-O8A20 U3
Module Size
193.75*22.82MM
Image Sensor
1/2-inch OS08A20 CMOS Sensor
Max. Resolution
3840H x 2160V
Pixel Size
2.0*2.0μm
Output Format
MJPEG, YUY2, H.264
Field of View
90°(or TBD)
Lens
3G+2P+IR (EFL:4.2mm F/no:2.6)
Audio Input
NO
Focus Mode
Fixed Focus/ Manual Focus
Output & Power Supply
High Speed USB3.0
Interface
USB3.0 Type-C
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.5 Meter USB Cable
2.Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
3840x 2160
20FPS
2592 x 1944
20FPS
2560 x 1440
20FPS
2048x 1536
20FPS
1920 x 1080
30FPS
1600 x 1200
30FPS
1280x 960
30FPS
1280x 720
30FPS
640x 480
30FPS
640 x 360
30FPS
YUY2
3840x 2160
20FPS
2592 x 1944
20FPS
2560 x 1440
20FPS
2048x 1536
20FPS
1920 x 1080
30FPS
1600 x 1200
30FPS
1280x 960
360FPS
1280x 720
30FPS
640x 480
30FPS
640x 360
30FPS
H.264
1920 x 1080
30FPS
1600 x 1200
30FPS
1280x 960
30FPS
1280x 720
30FPS
640x 480
30FPS
640 x 360
30FPS
3.PIN Definitions
Pin No.
Signal Names
Descriptions
USB3.0 Type-C
VCC
5V Power
DP
Data-
DM
Data+
GND
GND
SSPXNI
USB3.0 SSPXNI
SSPXPI
USB3.0 SSPXPI
SSTXN1
USB3.0 SSTXN1
SSTXP1
USB3.0 SSTXP1
4.Working Conditions
Working Voltage
DC 5V
Working Current
380mA
Working Temperature
-15°C ~ 70°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
