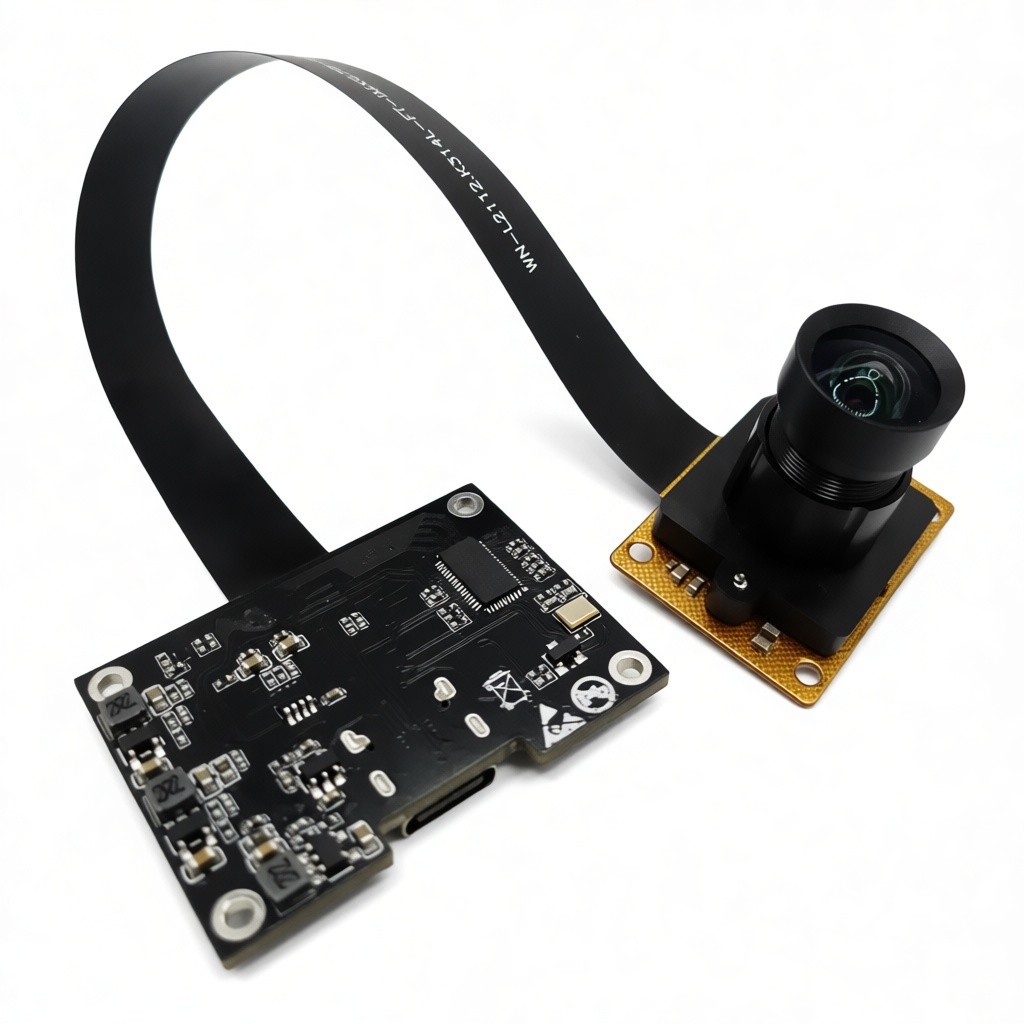

1/1.8'' IMX678 Sensor 8MP USB UVC Camera Module DFOV 92° 4K USB3.0 Camera Module For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Main Parameters: Module Size Board：40*29*8mm FPC：171.5*30*24.03mm Sensor 1/1.8-Inch IMX678 Resolution 3840H x 2160V Pixel Size 2.0*2.0µm Output Format MJPEG, YUV2 DFOV 92° HFOV 85° VFOV 54° Lens 3G+3P IR 650NM M12 P0.5 EFL 4.2 F/NO 2.0 TV Distortion <1.1% CAR 12.3° Focus Type FF Shutter Type Electronic Rolling shutter Output and Power Supply High Speed USB3.0 Interface TYPEC USB3.0 Controllable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure Supported OS Windows, Android, Linux, Cable Length Default 1.5 Meter USB Cable Supported Resolution and Frame Rate Format Resolution Frame Rate (USB3.0) MJPG 3840x2160(4K) 60FPS 2592x1944(5MP) 60FPS 2560x1440(2K) 60FPS 2048x1536(3MP) 60FPS 1600x1200(2MP) 60FPS 1920x1080 (1080P) 60FPS 1280x720 (720P) 60FPS 640x480 (VGA) 60FPS YUV2 3840x2160(4K) 15FPS 2592x1944(5MP) 30FPS 2560x1440(2K) 30FPS 2048x1536(3MP) 30FPS 1600x1200(2MP) 30FPS 1920x1080 (1080P) 30FPS 1280x720 (720P) 30FPS 640x480 (VGA) 30FPS Working Condition Operating Voltage USB DC +5V Supply Operating Current 320mA Operating Temperature -15℃~ 60℃ Storage Temperature -20℃~ 85℃ Humidity 80 ~85%  |
|
|
|
