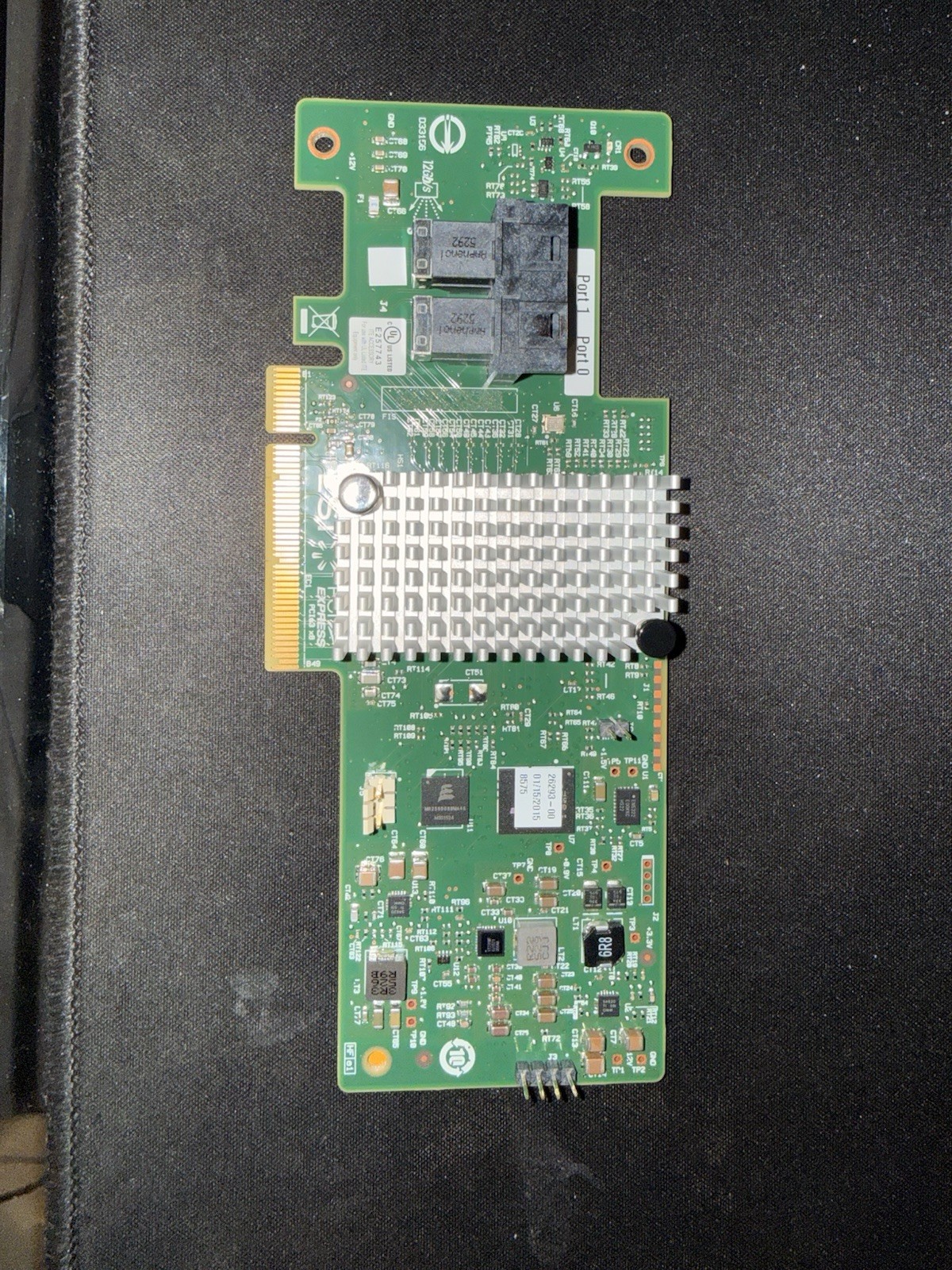

IBM ServeRAID M1215 (LSI SAS9340‑8I) 12Gb/s SAS / 6Gb/s SATA RAID controller (part number typically 46C9115 / 46C9112). High‑performance internal storage controller designed for IBM and Lenovo System x servers, ideal for upgrading or expanding internal drive arrays.

Key Specs

• Interface: PCI Express 3.0 x8

• Ports: 8 internal SAS/SATA lanes (2× Mini‑SAS HD SFF‑8087 connectors)

• Drive Support: Up to 8 SAS or SATA HDDs/SSDs per card

• Speed: 12Gb/s SAS, 6Gb/s SATA

• RAID Levels: RAID 0, 1, and 10 included; RAID 5/50 often available via license key (check with your vendor)

• Form Factor: Low‑profile MD2 (no bracket included)

What’s Included

• 1 x IBM SAS9340‑8I ServeRAID M1215 controller card

• No heatsink or bracket included (card‑only sale)

Compatibility Notes

• Works with IBM/Lenovo System x servers and other x86 systems supporting LSI SAS3008‑based controllers.

• Compatible with Windows Server, Linux, and VMware hosts that support this card.

• Verify compatibility with your specific server model before purchasing.

Condition

• Tested and working (used)

• No visible damage to the PCB or connectors.

Great for server upgrades, NAS builds, or expanding internal storage in enterprise hardware.
