Product Identification — • Brand: IBM / Lenovo • Model: ServeRAID M1215 • Base LSI Model: SAS 9340-8i • IBM Part Number: 46C9115 / 46C9112 • FRU Number: 00KG402 / 00K6402 • Manufacturer Part: H3-25499-03E — Technical Specifications — • Interface: PCI Express 3.0 x8 • Data Transfer Rate: 12Gb/s per port • Bus Type: PCIe 3.0 x8 • Controller Chipset: LSI SAS3008 • Drive Support: SAS and SATA (HDD and SSD) • Connectors: Two Internal x4 SFF-8643 (Mini-SAS HD) — Features — • Supports RAID levels 0, 1, 10 • High-performance 12Gbps SAS connectivity for server applications • Passive cooling with attached silver heatsink • Designed for IBM System x servers and compatible enterprise hardware — Component Details — This listing is for the internal RAID controller card. The unit features a green PCB…Product Identification

• Brand: IBM / Lenovo
• Model: ServeRAID M1215
• Base LSI Model: SAS 9340-8i
• IBM Part Number: 46C9115 / 46C9112
• FRU Number: 00KG402 / 00K6402
• Manufacturer Part: H3-25499-03E

Technical Specifications

• Interface: PCI Express 3.0 x8
• Data Transfer Rate: 12Gb/s per port
• Bus Type: PCIe 3.0 x8
• Controller Chipset: LSI SAS3008
• Drive Support: SAS and SATA (HDD and SSD)
• Connectors: Two Internal x4 SFF-8643 (Mini-SAS HD)

Features

• Supports RAID levels 0, 1, 10
• High-performance 12Gbps SAS connectivity for server applications
• Passive cooling with attached silver heatsink
• Designed for IBM System x servers and compatible enterprise hardware

Component Details

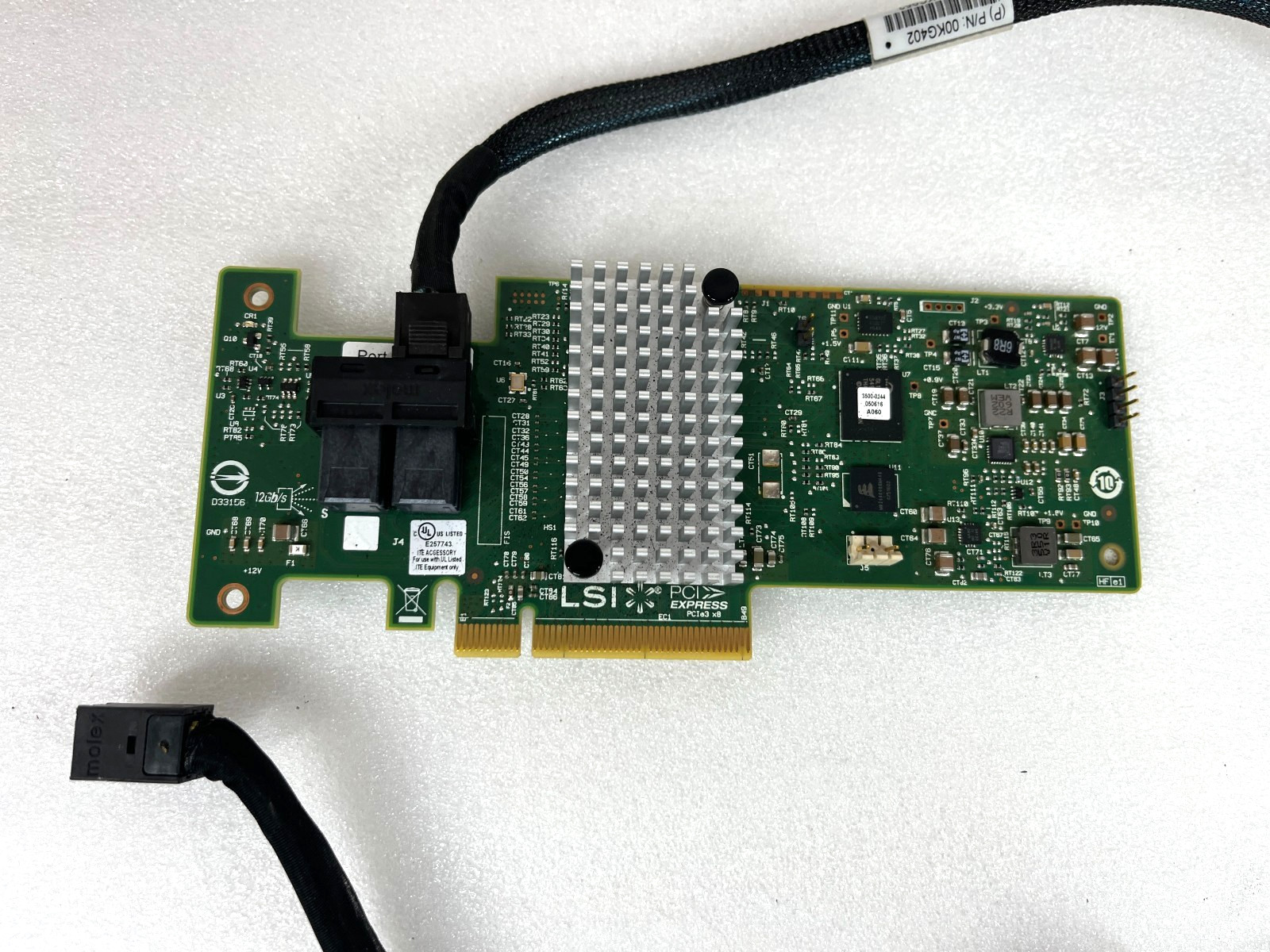

This listing is for the internal RAID controller card. The unit features a green PCB design with a large silver passive heatsink. Labels on the board include transcribed codes such as 3500-0244 and 11501GR78910UPB50619.
