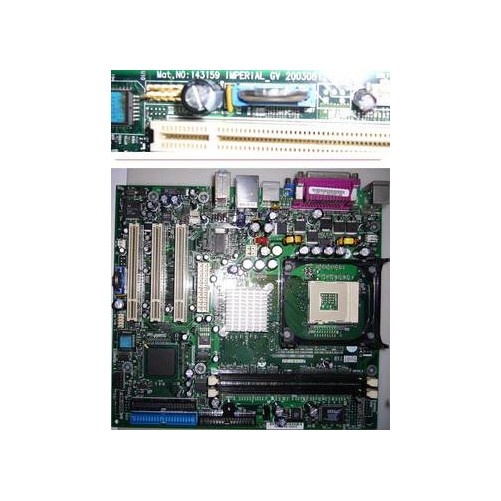

emachines 20030812 Imperial GV 20030812 Socket 478 motherboard for eMachines T25 For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Emachines Imperial GV 20030812 Motherboard Mat. No: 143159 Direct Replacement For eMachines T2542, T2596, T2642, T2682, T2692, T2792, T2882, W2646 Can also be used in other systems One PS/2 mouse portOne PS/2 keyboard portOne VGA (monitor)One ParallelOne serial portFour USB (2.0)One RJ45 networking portThree audio connectors: line in, line out, and microphoneInternal I/O Interface:- One Primary IDE connector
- One Secondary IDE connector
- One Floppy disk drive connector
- One 20-pin ATX power connector
- One 4-pin ATX 12V power connector
- One USB 2.0 connector supports two additional USB 2.0 ports
- One CPU fan connector
- One Chassis fan connector
- One CD in connector
- One AUX connector
- Front panel audio connector
- System panel connector
Motherboard Mat. No: 143159. Imperial GV 20030812 Motherboard Processor Support:- Socket 478 Pentium 4 and Intel 845GV Graphics and Memory Controller Hub (GMCH)
Southbridge: Intel MHz
Memory:- 2 x 184-pin DDR DIMM sockets support unbuffered non-ECC 2 GB 333/266 MHz DDR SDRAM memory modules
Expansion Slots:On-Board Audio:- Controller: AC-97
- Realtek ALC650/658 6-channel CODEC chipset
- Dolby 5.1 audio support
On-Board LAN:- Realtek RTL8100C
- 10/100 Mbps LAN controller
Form Factor:- Micro-ATX form factor, 9.6 in x 8.6 in
BIOS:- 4 Mb FWH EEPROM
Award BIOS with enhanced ACPI, DMI, Green, and PnP Features Plus
 |
|
|
|
