XYBLDC 3 Phase Brushless Hall Motor Controller Module 10KHz PWM 12V30V 200W For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

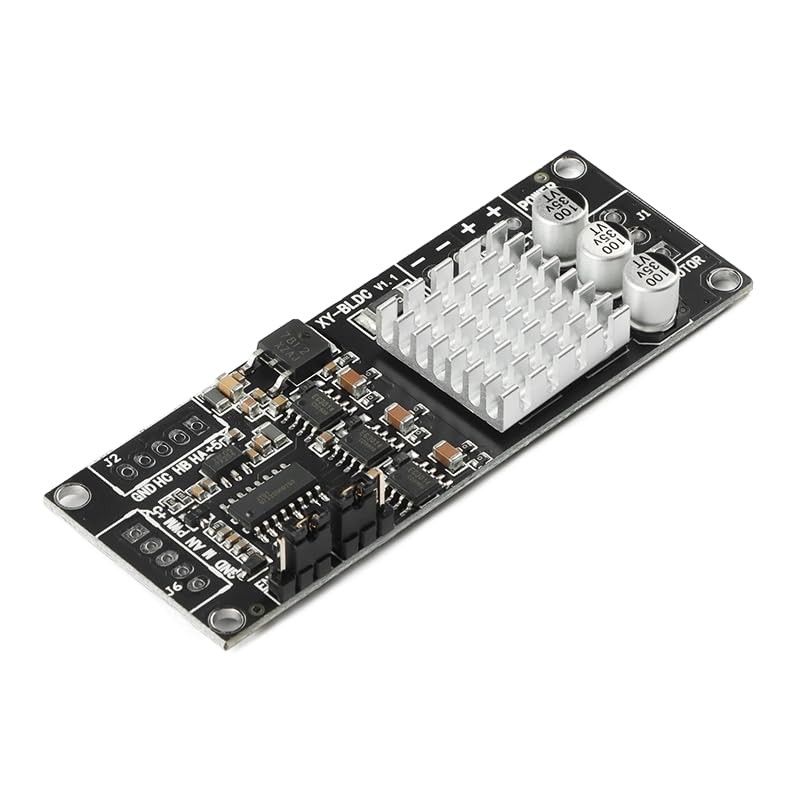

XYBLDC 3 Phase Brushless Hall Motor Controller Module 10KHz PWM 12V30V 200W

Price: US $25.42

Exclusive Offers Await!
Welcome to our stores! Satisfaction is what we guarantee.XY-BLDC 3 Phase DC Brushless Hall Motor Controller Module 10KHz PWM 12V-30V 200W Brushless Motor Drive BoardProduct OverviewProduct parameters
Product Name: 200W Brushless Hall DC Motor Driver
Model: XY-BLDC
Working voltage: 12-30V
Maximum current: rated 7A, peak 10A
Maximum power: 200W
Overcurrent protection: Yes
Forward and reverse: Yes
Brakes: Yes
Speed regulation PWM: Yes
Speed regulation analog quantity: Yes
Product size: 80MM long * 30MM wide * 10MM high
Product weight: 15g
Key Features

DFN Packaging Technology BLDC Wide Voltage 12-30V High Power 200W DC Three Phase Brushless Hall Controller
Supports PLC 0-5V analog control and PWM to 0-5V control, only suitable for DC brushless Hall motors with an electrical angle of 120 degrees
Product Name: 200W Brushless Hall DC Motor Driver
The 5V, GND motherboard comes with a 5V power supply (capable of external power supply, with a current not exceeding 10mA)
The speed pulse signal output has an amplitude of 5V, and each pulse represents one revolution of the motor.
