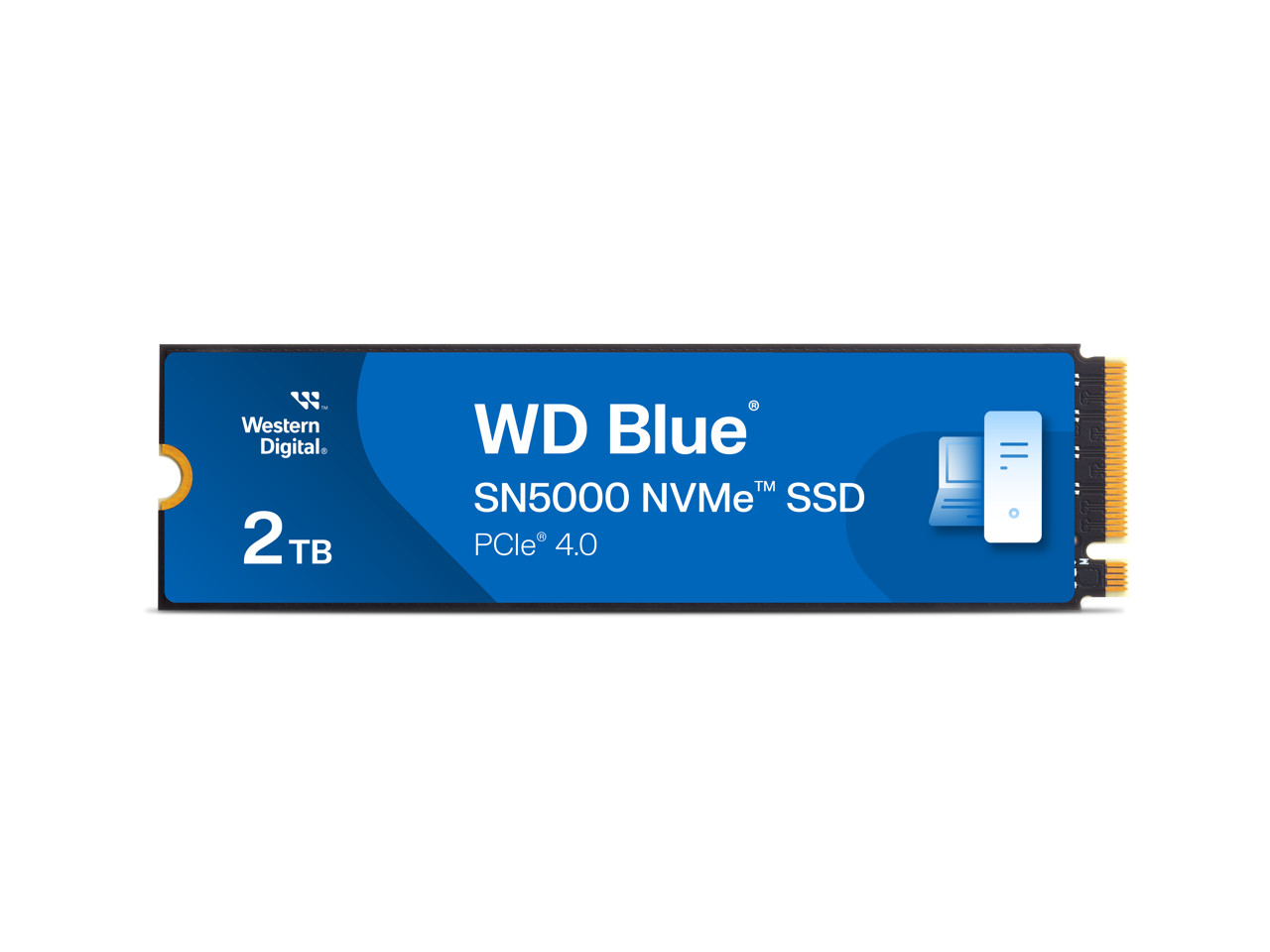

WD Blue SN5000 WDS200T4B0E-00CNZ0 2 TB Solid State Drive - M.2 2280 Internal - PCI Express NVMe [PCI Express NVMe 4.0 x4] WD Blue SN5000 WDS200T4B0E-00CNZ0 2 TB Solid State Drive - M.2 2280 Internal - PCI Express NVMe [PCI Express NVMe 4.0 x4]

International Customers: All electronic products are packaged for sale in the US with US voltage.

Compatibility: Requires M.2 2280 port

Device Supported:

Desktop Product Description

This item is brand-new, factory sealed.

WD Blue SN5000 NVMe SSD

Power your intense creative workloads with NVMe.

The WD Blue SN5000 NVMe SSD is next-generation storage designed for creators and professionals. Fuel your AI-enabled applications and accelerate your workflow with NVMe, PCIe Gen4, and Western Digital nCache 4.0 technology. Plus, create without limits with up to 4TB1 capacity. No matter your creative process, the WD Blue SN5000 NVMe SSD makes every step easier and shortens the time between ideating and finalizing your creative vision.


Create and store more

Hold more masterpieces and enjoy endless inspiration with up to 4TB1 capacity.


Boost your creative workflow

Harness AI and streamline your creative workflow with the combined power of PCIe Gen4, up to 5,500MB/s3 read speeds (4TB1 model), and Western Digital nCache 4.0 Technology.


Multitask like a pro

Switch smoothly between applications and projects with high-end NVMe storage technology.


Endurance for intense workloads

Create confidently with up to 1,200TBW5 (4TB1 model) endurance for ideating, drafting, and finalizing your creative work.


Note

1. 1GB = 1 billion bytes and 1TB = 1 trillion bytes. Actual user capacity may be less depending on operating environment.

3. 1 MB/s = 1 million bytes per second. Based on internal testing; performance may vary depending upon host device, usage conditions, drive capacity, and other factors. IOPS = input/output operations per second.

5. TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity. Capacity1
2TB Form Factor
M.2 2280 Interface2
PCIe Gen4 16GT/s, up to 4 Lanes NAND Type
Western Digital 3D NAND TLC Performance3
Sequential Read (MB/s) up to (Queues is equal to 32, Threads is equal to 1)
5,150
Sequential Write (MB/s) up to (Queues is equal to 32, Threads is equal to 1)
4,850
Random Read 4KB IOPS up to (Queues is equal to 32, Threads is equal to 16)
650K
Random Write 4KB IOPS up to (Queues is equal to 32, Threads is equal to 16)
770K Power4
Average Active Power
75mW
Sleep (PS5)
5mW
Max Average power
6.3W Reliability
Endurance (TBW) 5
900
MTTF 6
1.75 Million hours Environmental
Operating Temperatures8
32oF to 185oF (0oC to 85oC)
Non-operating Temperatures9
-40oF to 185oF (-40oC to 85oC)
Operating Vibration
5.0 gRMS, 10-2000 Hz, 3 axes
Non-Operating Vibration
4.9 gRMS, 7-800 Hz, 3 axes
Shock
1,500G at 0.5 ms half sine Certifications
BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI
RoHS Compliance7
Yes Note
1. 1GB is equal to 1 billion bytes and 1TB is equal to 1 trillion bytes. Actual user capacity may be less depending on operating environment.
2. Backward compatible with PCIe Gen4 x2, PCIe Gen3 x4, PCIe Gen3 x2, PCIe Gen3 x1, PCIe Gen2 x4, PCIe Gen2 x2, and PCIe Gen2 x1
3. 1 MB/s is equal to 1 million bytes per second. Based on internal testing, performance may vary depending upon host device, usage conditions, drive capacity, and other factors. IOPS is equal to input/output operations per second.
4. Average Power is measured using MobileMarkTM 2025 on Windows 11 Pro (version 10.0.22621 Build 22H2)
5. TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
6. MTTF is equal to Mean Time To Failure based on internal testing using TelcordiaTM stress part testing (Telcordia SR-332, GB, 25oC). MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTTF does not predict an individual drives reliability and does not constitute a warranty.
7. This drive is in compliance with the European Union Directive 2011/65/EU and Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment.
8. Operational temperature is defined as temperature reported by the drive. Note that drive temperature readings are expected to be higher than ambient temperature when the SSD is placed inside a system. The SSD box package is rated up to 60oC.
9. Non-operational storage temperature does not guarantee data retention.Item Dimension (L inchxW inchxH inch)
4 x 1 x 1

Weight
1.00 lb

Warranty Information
5 Years SpecificationPhysical CharacteristicsForm FactorM.2 2280Weight (Approximate)0.20 ozLength3.2"Drive Warranty5 YearInterfaces/PortsDrive Interface StandardPCI Express NVMe 4.0 x4Drive InterfacePCI Express NVMeGeneral InformationBrand NameWDMarketing Information Power your intense creative workloads with NVMe™. The WD Blue SN5000 NVMe™ SSD is next-generation storage designed for creators and professionals. Fuel your AI-enabled applications and accelerate your workflow with NVMe, PCIe® Gen 4, and Western Digital nCache™ 4.0 technology. Plus, create without limits with up to 4TB capacity. No matter your creative process, the WD Blue SN5000 NVMe SSD makes every step easier - and shortens the time between ideating and finalizing your creative vision. Create and store more Hold more masterpieces and enjoy endless inspiration with up to 4TB capacity. Boost your creative workflow Harness AI and streamline your creative workflow with the combined power of PCIe® Gen 4, up to 5,500MB/s read speeds (4TB model), and Western Digital nCache 4.0 Technology. Multitask like a pro Switch smoothly between applications and projects with high-end NVMe™ storage technology. Endurance for intense workloads Create confidently with up to 1,200TBW (4TB model) endurance for ideating, drafting, and finalizing your creative work. Free Acronis® True Image™ download Download Acronis® True Image™ for Western Digital data migration software to transfer your files. Stay informed on your drive health Monitor your SSD's performance and available space with the downloadable Western Digital Dashboard application. And gain peace of mind with a 5-year limited warranty. Product TypeSolid State DriveProduct NameBlue SN5000 NVMe SSD - 2 TBManufacturerWestern Digital CorporationManufacturer Part NumberWDS200T4B0E-00CNZ0Product ModelWDS200T4B0E-00CNZ0Product SeriesSN5000Product LineBlueTitleProduct TitleWD Blue SN5000 WDS200T4B0E-00CNZ0 2 TB Solid State Drive - M.2 2280 Internal - PCI Express NVMe [PCI Express NVMe 4.0 x4]Drive PerformanceMaximum Read Transfer Rate5150 MB/sMaximum Write Transfer Rate4850 MB/sRandom 4KB Read650000IOPSMaximum Sequential Read5.03 GB/sMaximum Internal Data Transfer Rate5150 MB/s (40.2 Gbit/s)Maximum Sequential Write4.74 GB/sRandom 4KB Write770000IOPSEndurance (TBW)900 TBTechnical InformationStorage Capacity2 TBPlatform SupportedPC Shipping
