Specification:
Fiber port: LC
Suitable fiber: universal singlemode 1310/1550um (9/125um) and mulimode 850um (50/125um), 1310um (62.5/125um).
Power supply: AC100V~240V,DC5V2A. (US Standard) LED Indicated lights:
Link light: TX: turn on when connect to video. RX: when connect to fiber optic.
PWR light: Power light, Turn on when connect to power.Turn off when no power. Package list
1 x HDMI over fiber Transmitter
1 x HDMI over fiber Receiver
2 x 10Gbps SFP optical module
1 x 3M fiber patch cord
2 x US standard Power supply adapter
User manual

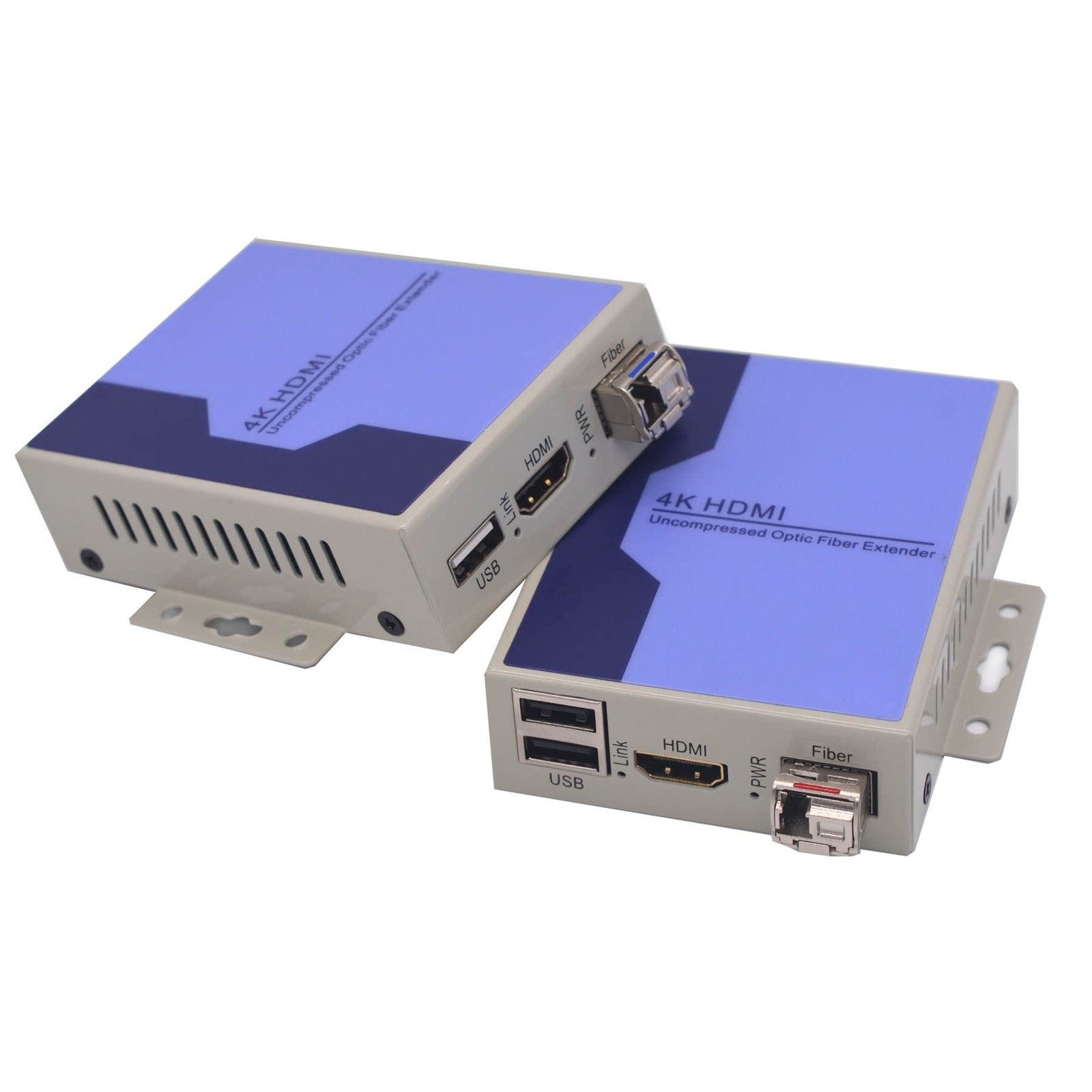

The unit provides extension of 4K HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4Kx2K (3840x2160@30Hz). With KVM (USB port) function, it can remote control by mouse and keyboard
It can transmit 4K HDMI signals up to 10km(6.2 miles) through a single LC/LC siglemode fiber optic cable
Support video resolution 3840x2160@30Hz and 1920X1080P@60Hz. Please take note that NOT Support 3840x2160@60Hz.
Equipped with two 10Gbps SFP Optical transceiver. Uncompressed ,High speed Lossless signal transmission
Plug and play, No need for on-site adjustment,Simply plug in HDMI port and LC optical port, and it will work immediately
