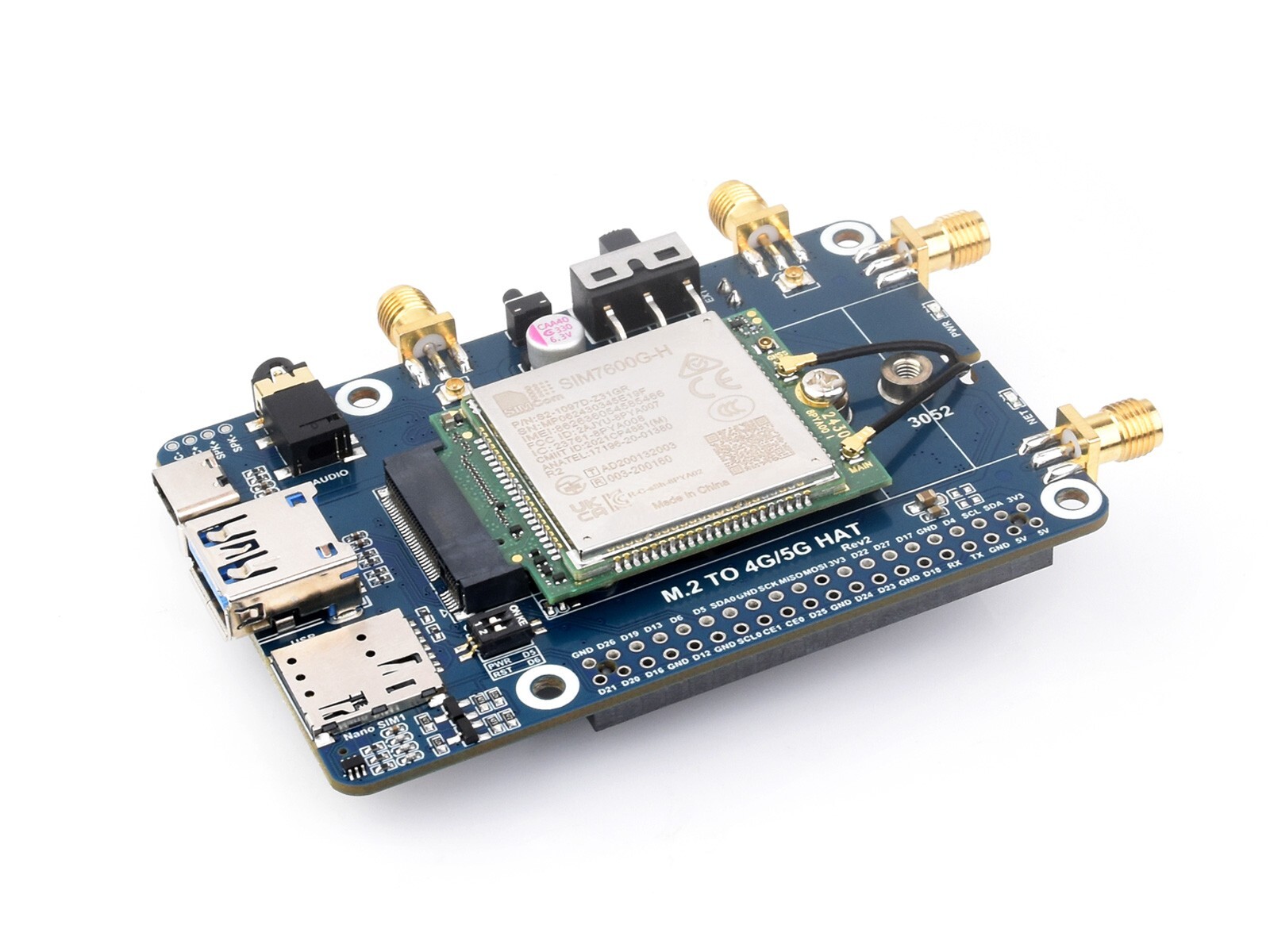

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.SIM7600G-H M.2 4G HAT for Raspberry Pi, LTE CAT4 high speed, global coverage multi band, 4G/3G/2G compatible, GNSSSIM7600G-H M.2 4G HATfor Raspberry Pi

4G/3G/2G communication and GNSS positioning, global band

Features at a glance

This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.

• Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
• GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
• USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication
• Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
• Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
• Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
• Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
• Onboard audio jack and audio decoder, allows audio operation like making phone call
• High efficiency power supply circuit, up to 3A output current

Module SpecificationsFrequency bandLTE Cat-4LTE-FDD:B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD:B34, B38, B39, B40, B413GUMTS/HSDPA/HSPA+:B1, B2, B4, B5, B6, B8, B192GGSM/GPRS/EDGE:850, 900, 1800, 1900 MHzGNSSSatellite systemsGPS, Beidou, GLONASS, GALILEO, QZSSReceiver type16-channelC/A CodeSensitivity-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)Cold starts: -148 dBmTime-To-First-Fix (open air)Cold starts: <35sHot starts: <1sSMS and AudioSMSSupported types: MT, MO, CB, Text, PDUStorage: USIM card and ME (default)Audio featureSupports echo cancellationSupports noise reductionGlobal band 4G/3G/2G support

LTE Cat-4: up to 150Mbps (downlink) / 50Mbps (uplink)
3G (HSPA+): up to 42Mbps (downlink) / 5.76Mbps (uplink)
2G (GPRS/EDGE): up to 236.8Kbps (downlink) / 236.8Kbps (uplink)

Multi system support, easy to use

supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...

Just plug it into USB port, go through some simple configuration, the high speed 4G network connection will be ready to use

Connection examples

for Windows PC or Jetson Nano series, use a USB cable
for Raspberry Pi 4B/3B+, or CM4-IO-BASE-A/B, use the purpose-made USB adapter

connecting withRaspberry Pi 4B

connecting withRaspberry Pi 3B+

connecting withCM4 IO Base

Cloud Communication

supported communication protocols: TCP, UDP, FTP, FTPS, HTTP, HTTPS...

GNSS positioning

supports GPS, Beidou, Glonass, Galileo, QZSS, and LBS base station positioning

Phone Call & SMS support

allows using AT commands to make phone call or send SMS

Standard Raspberry Pi 40PIN GPIO header

compatible with Raspberry Pi series and Jetson Nano, stackable design for more HATs

* for reference only, please check the Package Content section for exact part list.High speed cooling fan

better heat dissipation for both Raspberry Pi and the 4G module

Standard M.2 B KEY slot

Compatible with SIM7600X-M.2, SIM7906X-M.2, A7906X-M.2 series modules

SIM7600X-M.2

SIM7906X-M.2

A7906X-M.2

What's On Board

1. Raspberry Pi GPIO header
   for connecting with Raspberry Pi
2. DIP switches
   Enables the power control and reset pins
3. M.2 slot
   Compatible with most SIMCom and QUECTEL 4G/5G modules in M.2 form factor
4. SIM card slot 1
   one of the 2x SIM card slots, dual card single standby
5. USB3.1 port
   USB 2.0 compatible, for connecting with different hosts
6. USB Type-C port
   5V 3A input, stable and flexible power supply
7. Audio jack
   SIM7600X/SIM8XXX series supports audio function, but RM5XX/EM06XX series temporarily does not support this function

8. Antenna connector
   Supports quad antennas
9. Reset button
10. Power supply switch
    Switch the power supply mode:
    When set to USB, the module is powered via the "5. USB3.1 port"
    When set to EXT PWR, the module is powered by the external power supply via the "6. USB Type-C port"
11. Cooling fan
    Better heat dissipation for both Raspberry Pi and the 5G module
12. Indicator
    Easy to monitor the operating status of module

13. SIM card slot 2
    Switchable via AT command
14. Module settings switch
    Switch A to ON for SIM7600X/A7906X/SIM7906X/SIM7912X series 4G M.2 modules;
    Switch B to ON for SIM8202X/SIM8200EA/SIM8262X series 5G M.2 modules;
    Switch C to ON for RM50X/RM520N-GL/EM06X series 5G/LTE-A M.2 modules

15. USB 2.0 interface pads
16. NAU8810X Audio Chip
    For SIM7600X/SIM8XXX series modules, RM5XX and EM06XX series modules temporarily does not support this function
17. Fan Header
    5V cooling fan power supply

Outline DimensionsResources & Services
Package Content

Weight:0.215 kg

1. M.2 TO 4G/5G HAT x1
2. SIM7600G-H-M.2 x1
3. Antenna 2pcs x1
4. IPEX adapter cable 2pcs x1
5. 2*20PIN pin header x1
6. Passive GPS antenna x1
7. Dual plug USB3.0 cable x1
8. USB3.0 adapter x1
9. USB2.0 adapter x1
10. SMA protective cap 2pcs x1
11. Screws pack x1

Comparing the SIM7600 factorM.2Dimensions42.0 × 31.4 × 3.8 (mm)Freq.
bandLTE-FDDB2, B4, B12B1, B2, B3, B4, B5, B7, B8, B28, B66B1, B3, B5, B7, B8, B20B2, B4, B5, B12, B13, B14, B25, B26, B66, B71B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66LTE-TDDB40B38, B40, B41B41B34, B38, B39, B40, B41WCDMAB2, B5B1, B2, B5, B8B1, B5, B8B1, B2, B4, B5, B6, B8, B19GSM850, 900, 1800, 1900MHz900, 1800MHz850, 900, 1800, 1900MHzGNSSGPS, Beidou, GLONASS, GALILEO, QZSSApplicable regionsNorth America (AT&T)Australia, New Zealand, Taiwan, Latin AmericaEurope, the Middle East, Africa, South Korea, ThailandNorth America (all providers)GlobalComes withSIM7600G-Hmodule by default, for other modules or hardware customization, feel free to contract us.
